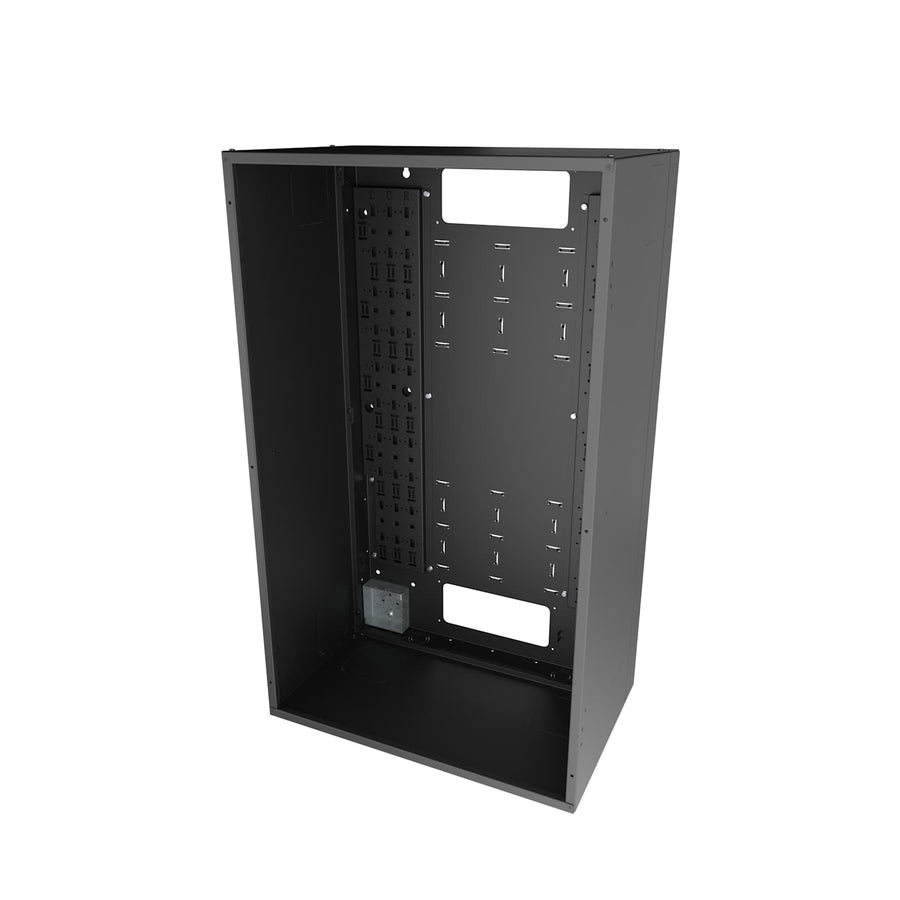

VWM Series Back Pan for Solid Door, 42" High x 10" Deep - Black
Steel vertical wall mount back pan, 42" high x 10" deep, designed for use with full solid doors
The VWM-BP-4210-BW is a steel vertical wall mount back pan designed for use with a full solid door within the Middle Atlantic VWM Series. This 42" high and 10" deep back pan provides a robust mounting foundation with a 150 lbs (68 kg) UL load capacity. It is engineered for forward compatibility, featuring native mounting to support forward cable management in the backpan. To complete your installation, you must purchase rackrail kits separately; available options include fixed or pivot styles, and these kits are 10-32 tapped and designed for use with cage nuts. The rackrails are easily repositionable vertically and horizontally (left, center, or right). For specialized mounting, this backpan is compatible with the Lever Lock system when used with the LL-VWM-BPK. This TAA compliant unit features a durable black wrinkle powder coat finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 42 in (106.7 cm) |
| Product Weight | 50 lbs (22.7 kg) |
| Shipping Weight | 60 lbs (27.2 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 33.8 in (85.9 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Black |
| Door Type | Full Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747291333 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1000R-2$2,860.20
101mm DC Fan Kit with (2) Fans, 138CFM for the European Union
FAN-138-K-EU$115.62
NEXSYS™ Online UPS Expandable Run Time Unit For 1000VA UPS Units
UPX-EXPANRUN-OL10$2,097.00
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL1000R-2$3,300.30
NEXSYS™ Online UPS Expandable Run Time Unit For 1500VA UPS Units
UPX-EXPANRUN-OL15$2,437.20
NEXSYS™ 1500VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1500R-2$3,300.30
101mm DC Fan Kit with (1) Fan, 69CFM for the European Union
FAN-69-K-EU$130.50
Lever Lock Vertical Channel 13.6 Inches
LL-VC17$20.70
Lever Lock Vertical Angle 13.6 Inches - 4 Piece
LL-VA17-4$41.40
Lever Lock Vertical DIN Rail 13.6 Inches - 4 Piece
LL-VDIN17-4$117.00
Lever Lock Vertical Channel 13.6 Inches - 4 Piece
LL-VC17-4$66.60
Questions about this part
What do I need to buy to install equipment in this backpan?
You must purchase VWM Rackrail kits separately. These are available in fixed or pivot styles and are 10-32 tapped for cage nut use.
How is the equipment oriented in the VWM-BP-4210-BW?
Equipment is mounted vertically within the backpan with the knobs facing up.
Does this backpan support Lever Lock mounting?
Yes, the VWM Backpan accepts the Lever Lock system when used in conjunction with the LL-VWM-BPK.
What is the usable depth of this vertical wall mount back pan?
The backpan has a total depth of 10 in (25.4 cm) off the wall and provides a usable depth of 33.8 in (85.9 cm).
Is this part TAA compliant for federal projects?
Yes, this product is TAA compliant and is manufactured in the USA.
