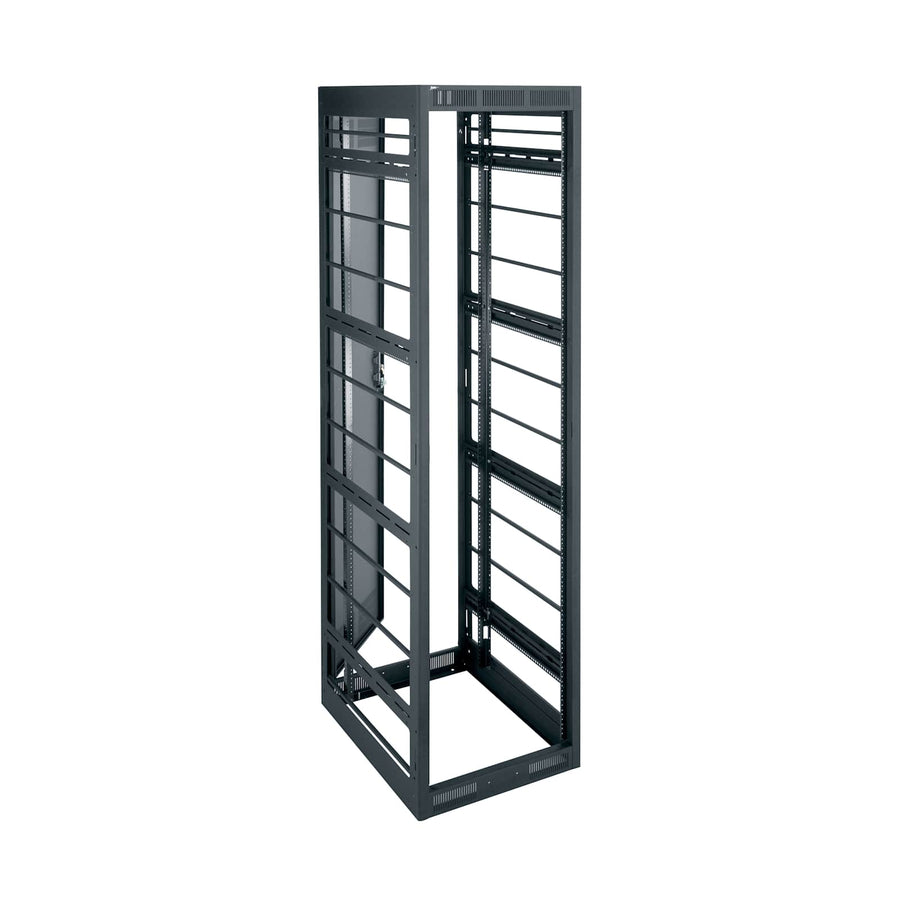

VRK Series 22 Inch Wide Rack - VRK-44-36H
22-inch wide 44RU broadcast rack with 36" depth, seismic rating, and 10,000 lbs weight capacity
The VRK-44-36H is a 44RU broadcast standard rack specifically engineered for the heavy-duty demands of mounting video and AV equipment. This 22-inch wide enclosure features a fully welded construction to ensure maximum structural integrity in professional environments. It is designed with a 36 in (91.4 cm) depth and a usable depth of 33.5 in (85.1 cm), providing ample space for deep hardware. For high-density cabling, the interior includes built-in horizontal lacing bars positioned on 7" centers, facilitating efficient tie-and-slide lacing for video cable bundles. This model is TAA compliant and UL listed, making it suitable for sensitive government or commercial contracts. The unit is seismic rated with an ASCE Number 7-10, providing a seismic load capacity of 740 lbs (335.7 kg) and an UL load capacity of 2500 lbs (1,134 kg). It offers a massive 10,000 lbs (4535.9 kg) total weight capacity, and the gangable design allows multiple units to be joined together when fully loaded. For security and airflow, the rack includes a partially vented locking rear door and a textured black powder coat finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 83.14 in (211.2 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 183 lbs (83 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 33.5 in (85.1 cm) |
| Usable Height | 77 in (195.6 cm) |
| Weight Capacity | 10000 lbs (4535.9 kg) |
All other specifications 12
| Width | 22 in (55.9 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Textured Black Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747075421 |
| ASCE Number | 7-10 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 740 lbs (335.7 kg) |
Resources
You'll need these with it
44 RU Vented Front Door for ERK, MRK and WRK Racks, 64% Open
LVFD-44$792.00
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Vented Front Door for ERK, MRK and WRK Racks
VFD-44$694.80
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
44 RU Rackrail 10-32 for MRK/VRK Series
MV-RR44$225.00

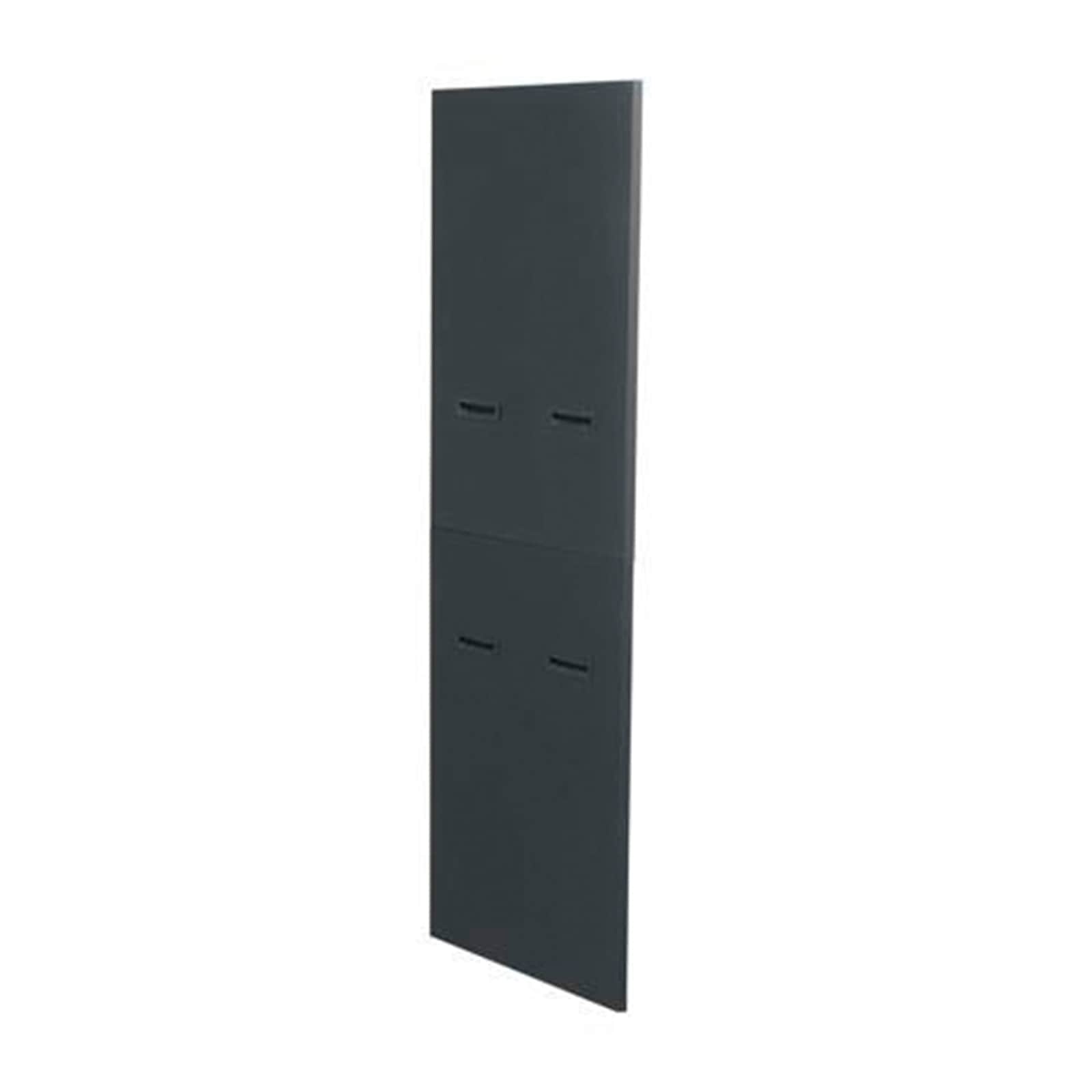

44 RU Side Panels for 36 Inch Deep MRK or VRK Racks
SPN-44-36$1,235.70
Forward Vertical Cable Duct, 1.5 Inches Wide
FWD-VPCD-1X3-44-45$265.50
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
PDT Low Profile Vertical Power Strip, 20 Outlet, 15A
PDT-2015C-NS$330.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will this rack fit my heavy video equipment?
Yes, this rack has a total weight capacity of 10,000 lbs (4535.9 kg) and a 2,500 lbs (1,134 kg) UL load capacity.
What accessories are needed for a complete setup?
You can add side panels like the SPN-44-36, vented front doors such as the VFD-44, or lacing strips like the LACE-44-OWP.
Is this rack suitable for seismic-sensitive environments?
Yes, the VRK-44-36H is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 740 lbs (335.7 kg).
How do I manage cable bundles inside the VRK-44-36H?
The rack features built-in horizontal lacing bars on 7" centers specifically for quick tie-and-slide lacing of video cable bundles.
What is the usable space inside the enclosure?
The unit provides a usable height of 77 in (195.6 cm) and a usable depth of 33.5 in (85.1 cm).
