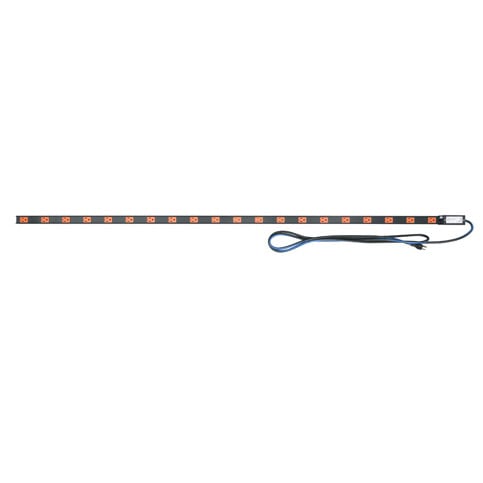

PDT Low Profile Vertical Power Strip, 20 Outlet, 15A
20-outlet vertical power strip with 15A capacity, 9 ft (2.7 m) SignalSAFE™ corded cable, and low-profile mounting for rack space efficiency
The PDT-2015C-NS is a low-profile vertical power strip designed to provide 20 outlets without sacrificing valuable rack space. Featuring a thin chassis with a 1.58 in (4 cm) width and 2.1 in (5.3 cm) depth, this unit mounts unobtrusively in the back of a rack, placing power sources directly adjacent to the equipment that requires them. This specific model features a corded 9 ft (2.7 m) cable utilizing SignalSAFE™ wire technology, which is engineered to minimize potential interference from AC magnetic fields generated by other hardware in the rack. The unit operates on 120 VAC at 15 Amps and features a black anodized finish. Installation is simplified by included mounting hardware that allows the PDU to snap into place on all styles of Middle Atlantic rack rail brackets. This corded configuration utilizes a standard 5-15P plug type.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 73.1 in (185.7 cm) |
| Shipping Weight | 5.6 lbs (2.5 kg) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 20 |
| Plug Type | 5-15P |
| UPC | 656747065361 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-2015C-NS fit in my Middle Atlantic rack?
Yes, the PDT series is designed to mount to every style of Middle Atlantic rack rail brackets using the included snap-in mounting hardware.
How do I install this vertical power strip in a rack?
Installation is a three-step process of one, two, clip; the unit snaps directly onto the rack rail using the included reusable clips.
What is the benefit of the SignalSAFE™ wire in this model?
The corded SignalSAFE™ wire helps minimize potential interference caused by AC magnetic fields from other equipment installed in the rack.
What are the electrical specifications for the PDT-2015C-NS?
This 20-outlet power strip is rated for 15 Amps at 120 VAC and features a 5-15P plug type.
Where can I find the installation instructions and technical drawings?
The PDT Series Instruction Sheet and CAD Technical Specification Drawings are available in the Resources tab for submittals and setup.
