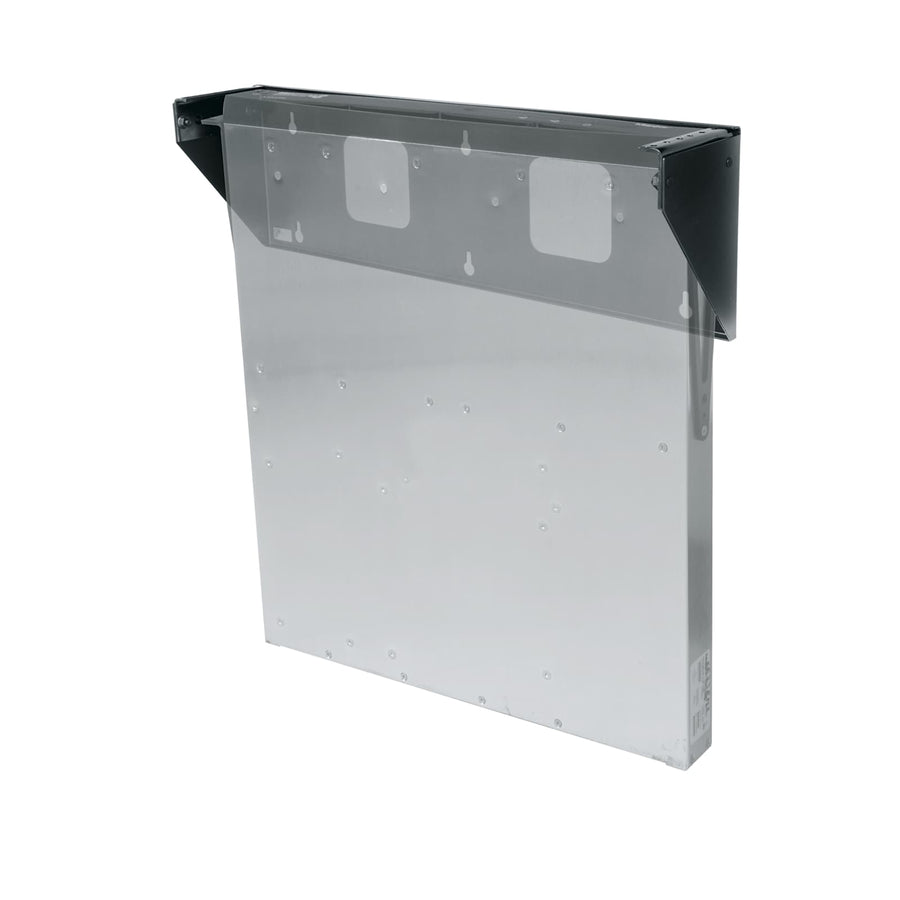

VPM Series Vertical Panel Mount Rack - VPM-2
2 RU vertical panel mount rack for versatile horizontal or vertical mounting with 200 lbs capacity
The Middle Atlantic VPM-2 is a 2 RU vertical panel mount rack designed for professional AV installations where a full protective enclosure is not required. This versatile component provides a mounting solution for equipment of any depth. Because of its orientation flexibility, installers can use the VPM-2 as a horizontal mount positioned under a desk or table, or as a vertical wall mount for space-constrained environments. It features heavy-duty 10-32 threaded rackrails to ensure secure attachment of components. For applications requiring under-desk mounting, the rack includes a dedicated hole for a safety screw to prevent accidental detachment. To achieve 4-point mounting, two units can be used together in a configuration. This TAA compliant rack is an efficient choice for managing hardware in clean, open-access setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6 in (15.2 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 3.7 lbs (1.7 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747123740 |
| Certifications | TAA |
| Usable Height | 3.5 in |
Resources
You'll need these with it

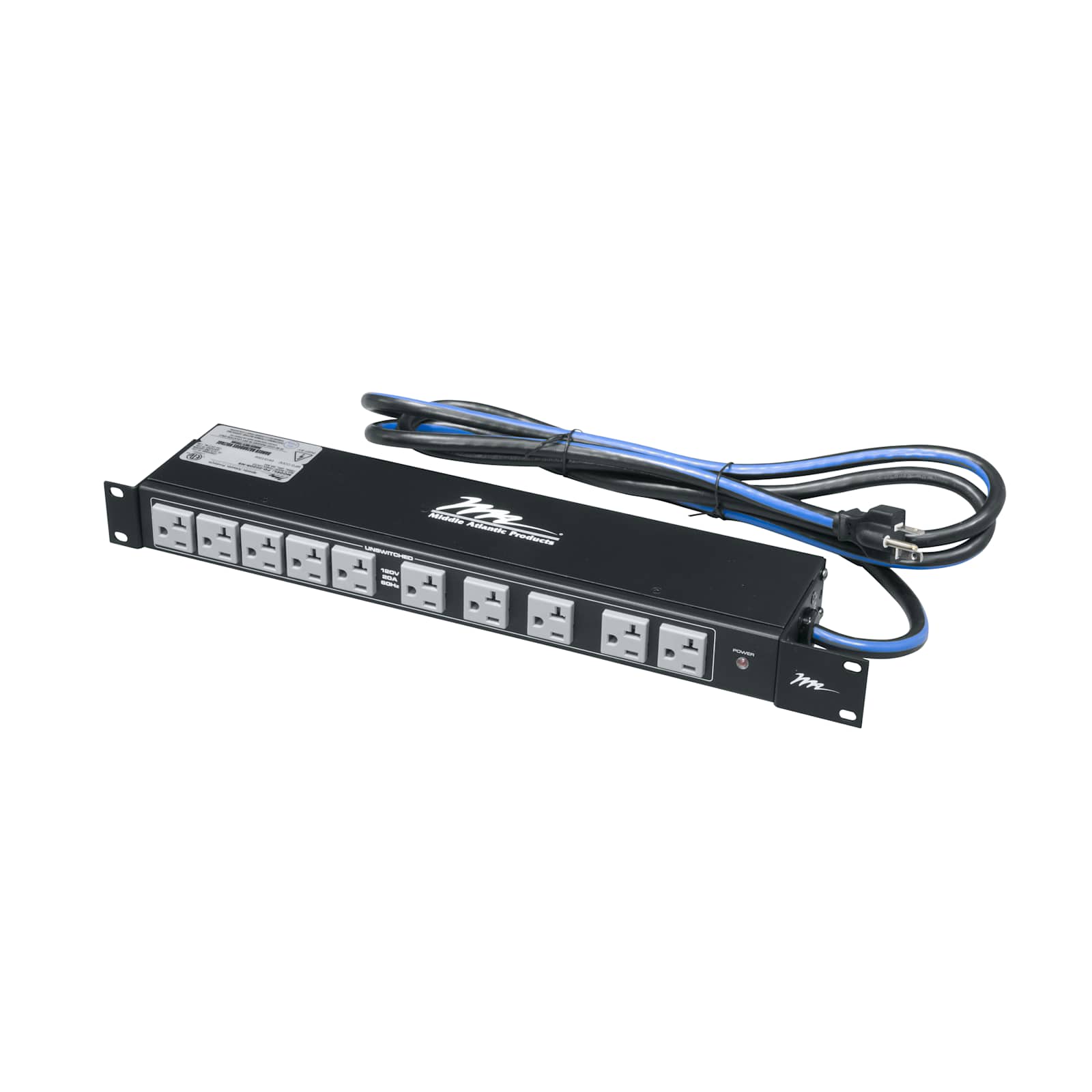

Multi-Mount PDU, 20 Outlet & 20A
PD-2020R-NS$378.00

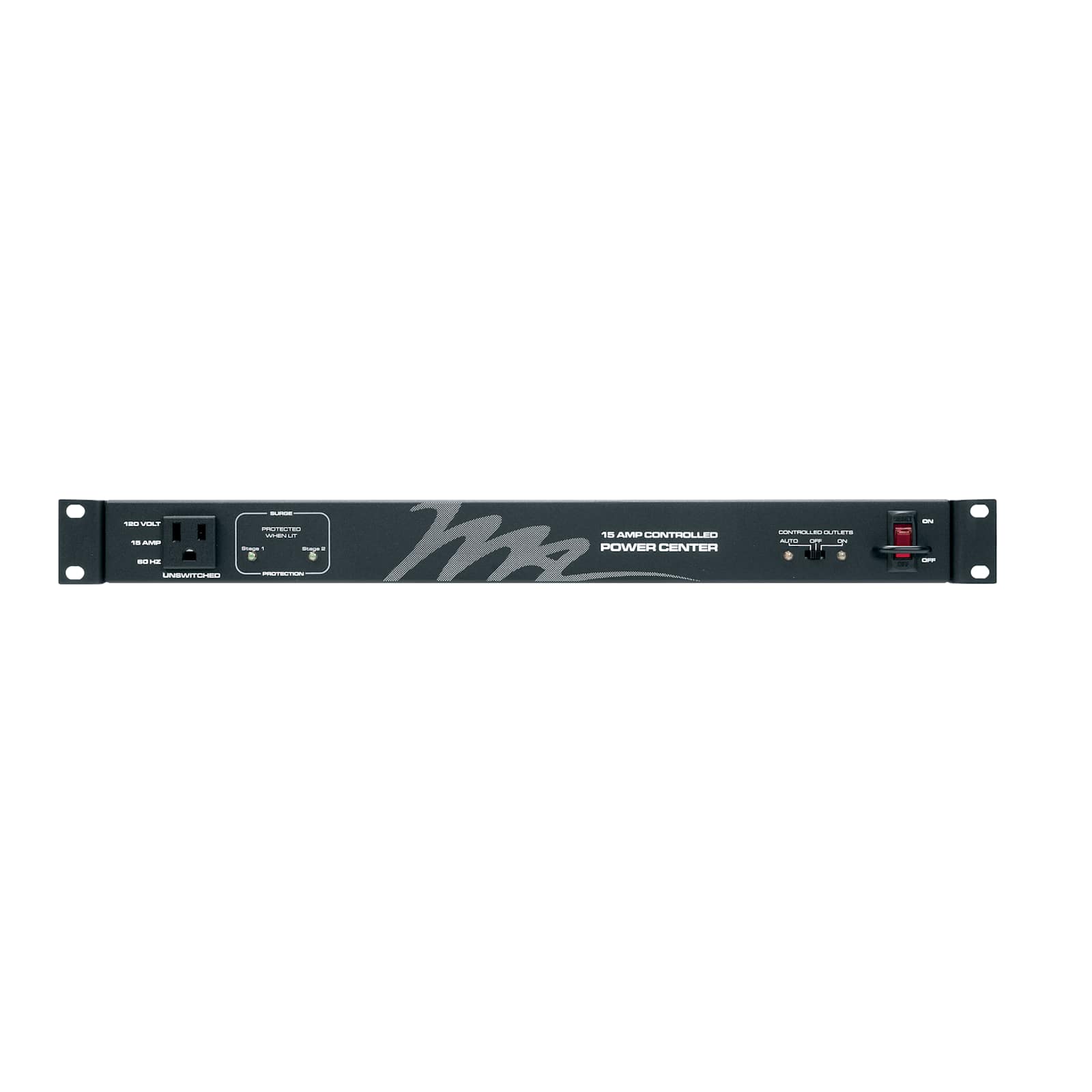

Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60

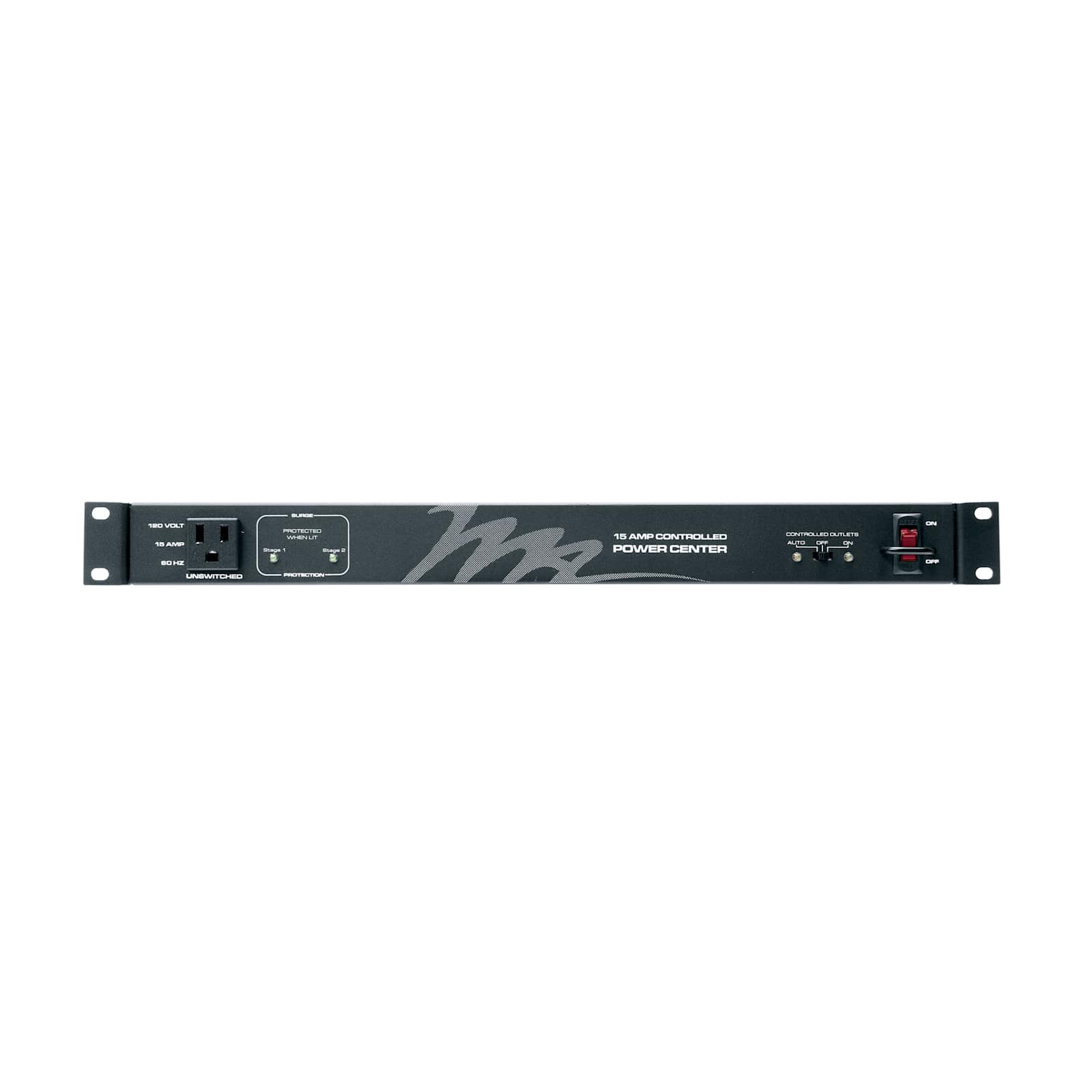

Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60

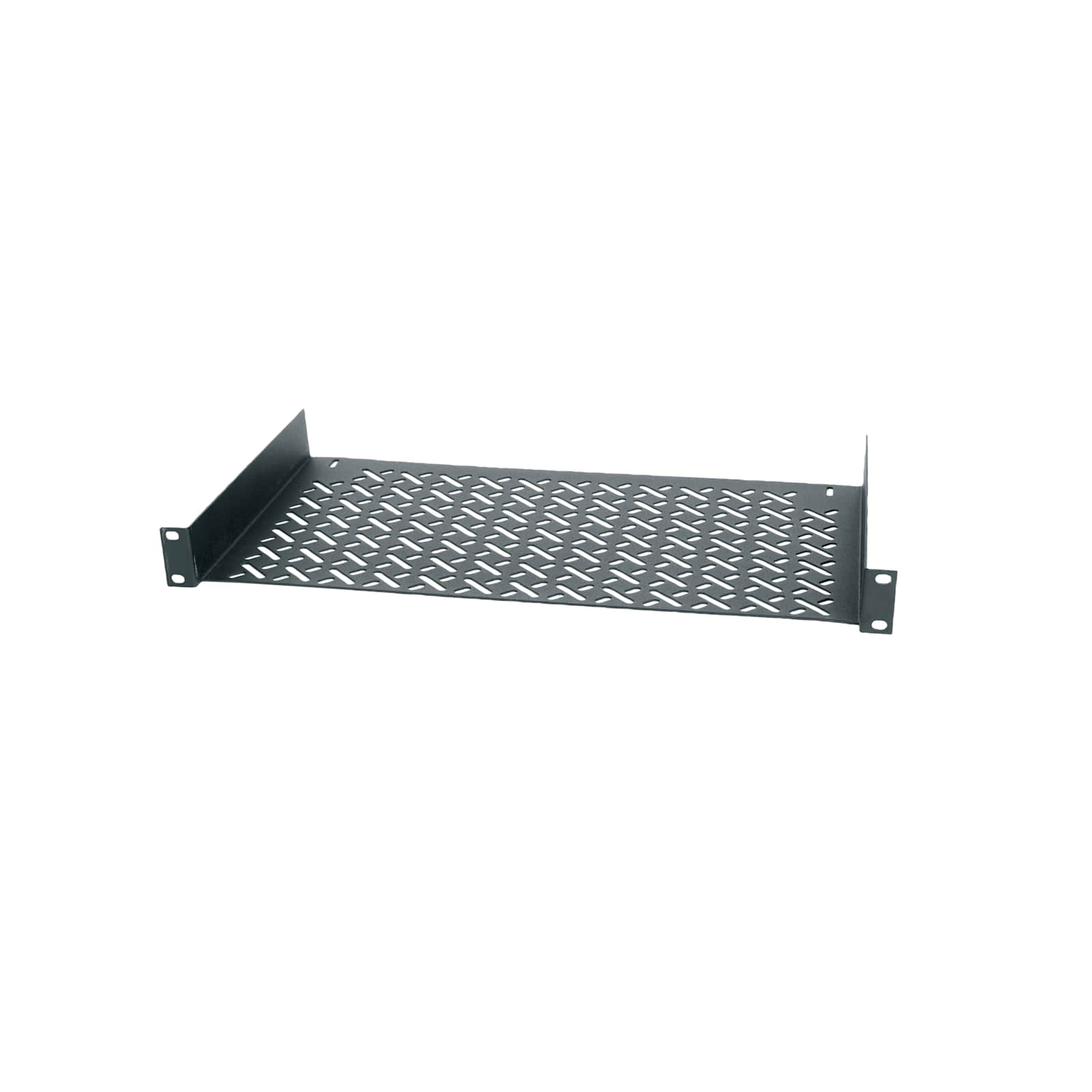

1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
1 RU Mounting Rackshelf - 50 Piece
UTR1MP$2,194.20
1 RU Utility Panel, 10 Piece
UP1P$190.80

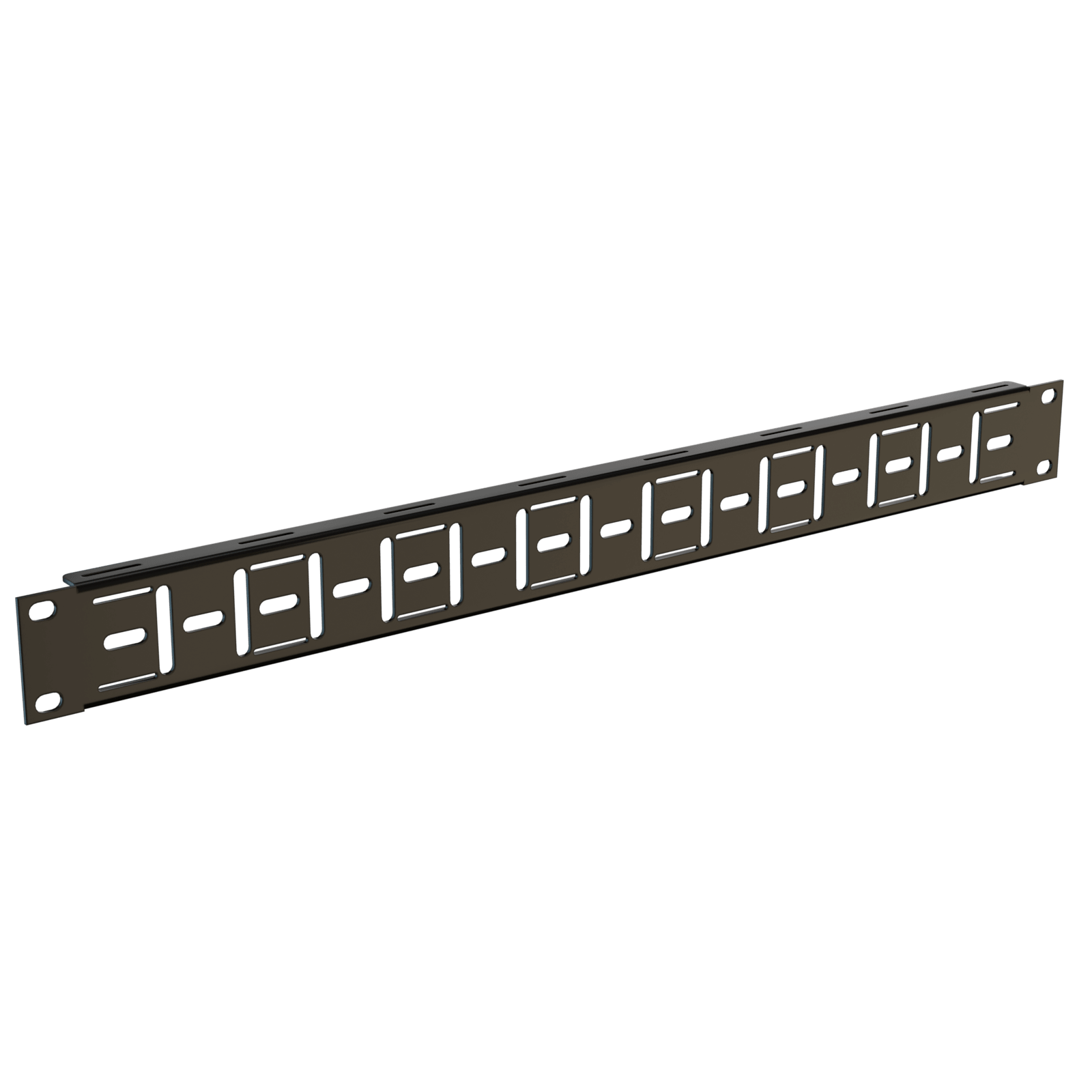

1 RU Utility Panel
UP1$25.20
Questions about this part
How can I mount the VPM-2 for under-desk applications?
The VPM-2 includes a specific hole for a safety screw to provide extra security when using it as an under-desk mount.
Can I achieve 4-point mounting with this series?
Yes, using two VPM units together will provide 4-point mounting for your installation.
Is the VPM-2 TAA compliant?
Yes, the VPM-2 is TAA compliant and manufactured in Mexico.
What is the weight capacity of the VPM-2 rack?
The VPM-2 supports a total weight capacity of 200 lbs (90.7 kg).
Does the VPM-2 work with standard rack rails?
The VPM-2 utilizes heavy-duty 10-32 threaded rackrails for secure component attachment.
