Video-Sound Bar Mount for Tempo™ Flat Panel Wall Mount System
Sound bar mount for Tempo™ Flat Panel Wall Mount Systems, compatible with bars having rear or bottom mounting holes
The Chief AS3A101 is a specialized video-sound bar mount designed specifically for use with the Tempo™ Flat Panel Wall Mount System. This accessory facilitates clean installations by allowing the sound bar to be mounted either above or below the display. The mount features a 21.41" (544 mm) wide slot, making it compatible with most video-sound bars that utilize rear mounting holes. For installers requiring precise positioning, the unit includes toolless height-adjustment knobs providing 6.27" (159 mm) of vertical travel and lateral shift capabilities along the wall plate mounting rail. To maintain a professional appearance, the interface bracket is 22.25" (565 mm) wide by 2.88" (73 mm) tall to prevent visual gaps under the bar. Integrated window openings and side slots facilitate efficient cable management for all connected AV equipment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 6.27 in (15.9 cm) |
| Manual Height Adjustment | 12.53" (318 mm) – 20.18" (513 mm) |
| Shipping Dimensions | 24.5" x 8.5" x 3" (622.3 x 215.9 x 76.2 mm) |
| Shipping Weight | 7.6 lbs (3.5 kg) |
| Weight Capacity | 20 lbs (9 kg) when using interface bracket or 15 lbs (6.8 kg) when using "L" brackets |
| Accessory Type | Camera MountsSpeaker Accessories |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872177915 |
Resources
You'll need these with it
650 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5174$181.60
Camera Shelf for Tempo™ Flat Panel Wall Mount System
AS3A100$191.20
Crestron® UC Bracket Accessory for Tempo™ Flat Panel Wall Mount System
AS3A102$136.00

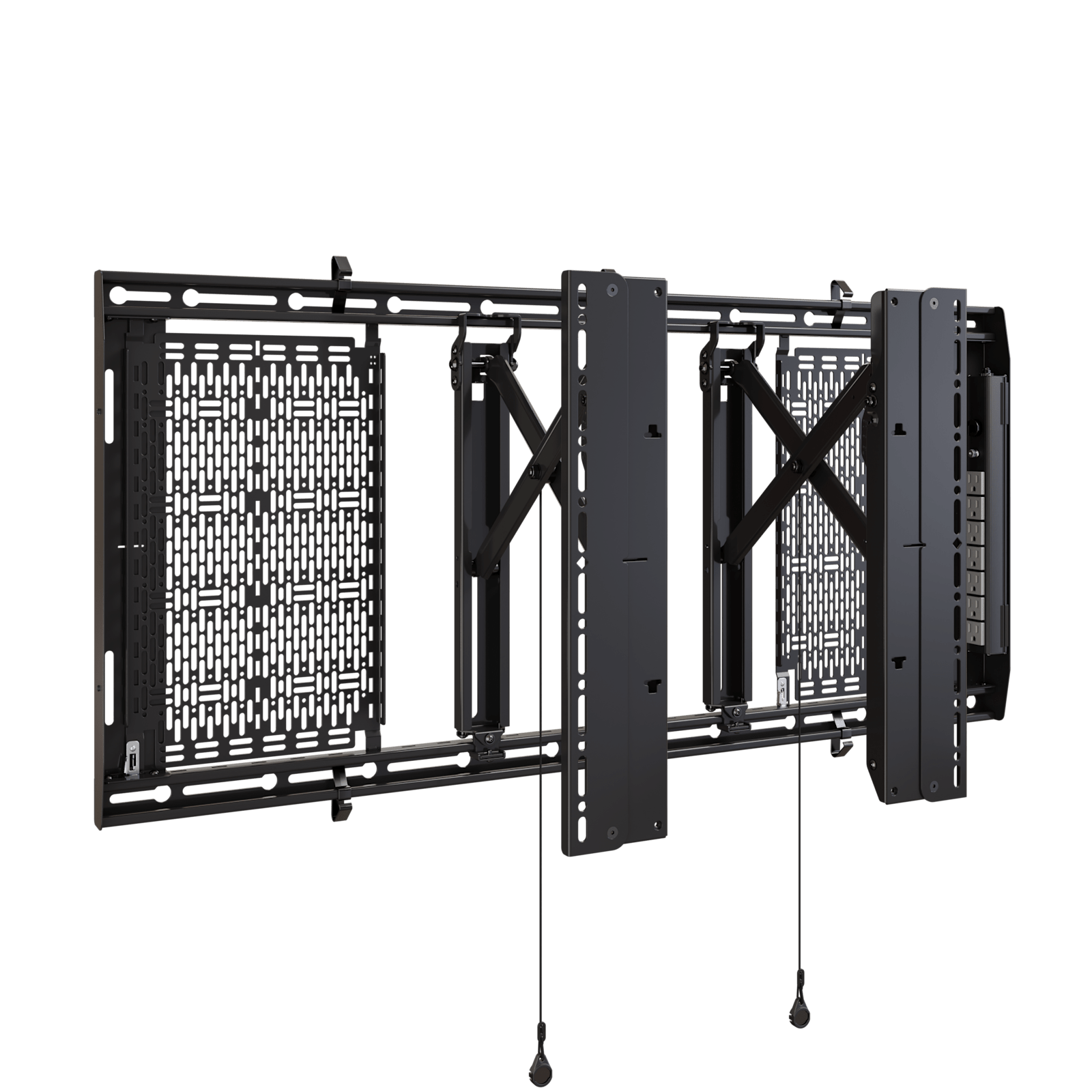

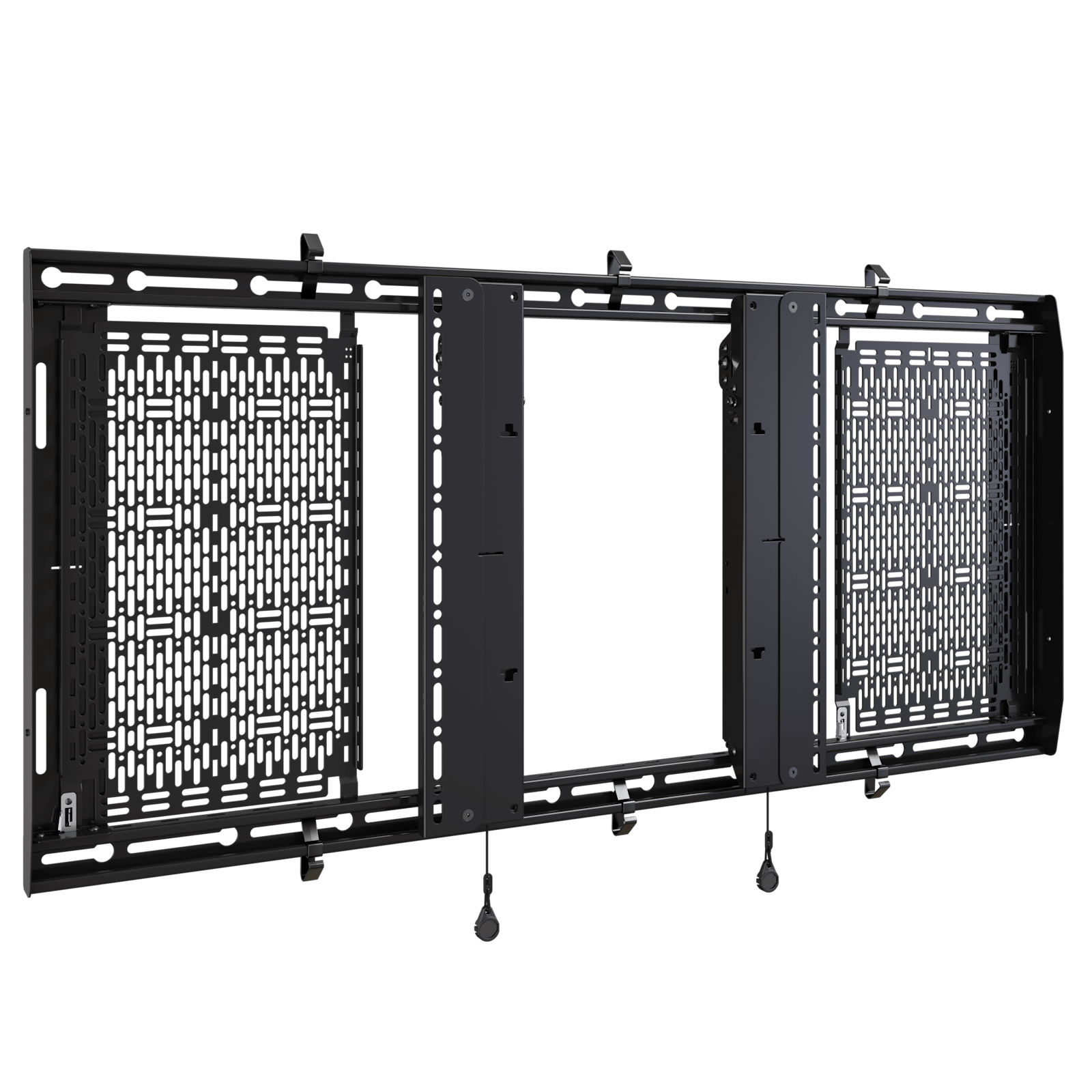

Tempo™ Flat Panel Wall Mount System
AS3LD$820.80
Tempo™ Flat Panel Wall Mount System, PDU Bundle
AS3LDP7$1,003.20
Questions about this part
Will the AS3A101 fit my video-sound bar?
Yes, it is designed to fit most sound bars that feature mounting holes in the back or bottom. The interface bracket is 22.25" (565 mm) wide.
What is the weight capacity of the AS3A101?
The mount supports 20 lbs (9 kg) when installed with the interface bracket, or 15 lbs (6.8 kg) if you use "L" brackets.
Can I adjust the height of the sound bar after installation?
Yes. The mount uses toolless height-adjustment knobs to provide 6.27" (159 mm) of vertical travel, allowing you to re-position the bar without tools.
What is required to install the AS3A101?
The mount glides and locks onto the top or bottom rail of the Tempo FP Wall Mount System using strut channel nuts with captive screws.
Does this include the Tempo Wall Mount System?
No, this is an accessory. It is intended for use with the Tempo™ Flat Panel Wall Mount System, such as the AS3LD.
