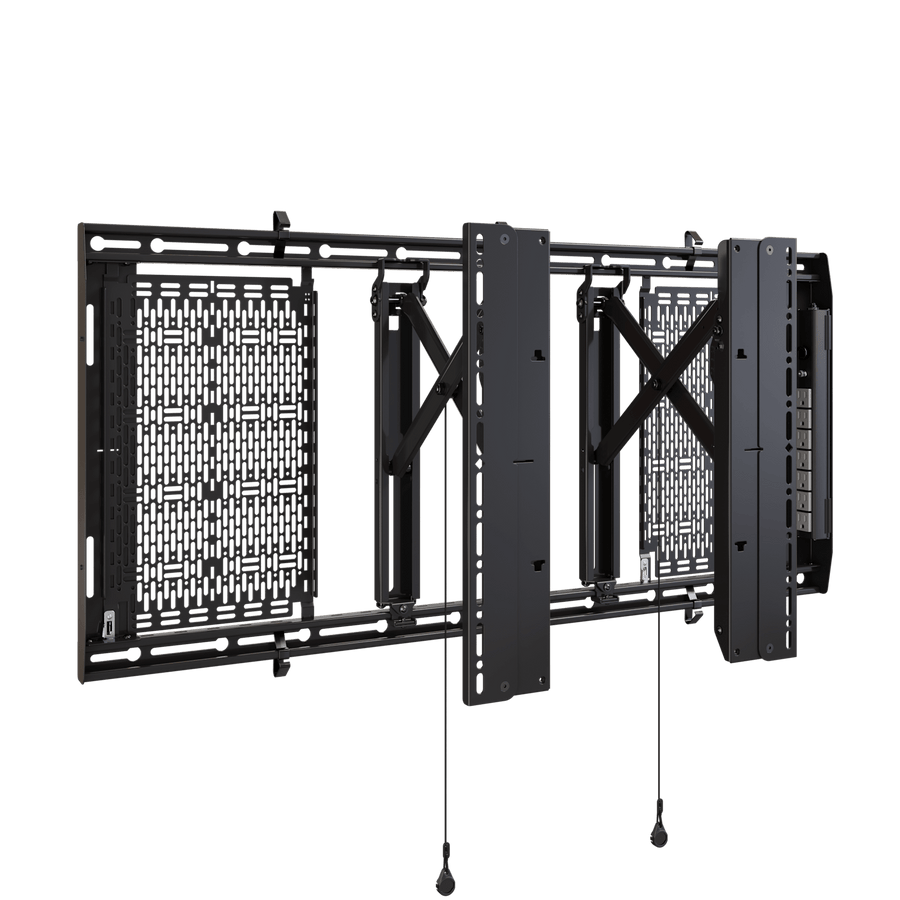

Tempo™ Flat Panel Wall Mount System, PDU Bundle
Wall mount system for 49"–86" displays featuring integrated Lever Lock™ storage and a Middle Atlantic 7-outlet PDU bundle
The Chief AS3LDP7 is an all-in-one configurable wall mounting system designed to streamline installation workflows and increase onsite productivity. This bundle includes a Middle Atlantic slim profile 7-outlet, 15A power strip equipped with a 3-ft (0.9 m) cord and a right-angle NEMA 5-15P plug to facilitate easier installation. The system is engineered to host 2–6 small AV devices behind the display using integrated Lever Lock™ storage panels, which provide 1.75" (44 mm) of storage clearance when the display is at a 0-degree tilt. This system accommodates displays from 49" to 86" with a weight capacity of 200 lbs (90.7 kg) and supports VESA mounting patterns up to 970 x 450mm. Installation is simplified by a wall plate and extending interface design that helps center the display, complemented by six cable management clips for a clean finish. For post-installation adjustments, the mount offers up to 1" (25 mm) of leveling via a post-installation roll, alongside micro-adjustable, lateral shift, and extension capabilities. This OSHPD approved, UL, and cULus certified mount is built for professional rollouts where efficiency and service access are paramount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 3 ft (0.9 m) |
| Lateral Shift | Yes |
| Minimum Depth | 1.96 in (5 cm) |
| Overall Dimensions | 42.03” x 19.75” x 1.96” (1068 x 502 x 50 mm) |
| Product Weight | 31.68 lbs (14.4 kg) |
| Shipping Dimensions | 47.64" x 22" x 2.76" (121 x 55.9 x 7 cm) |
| Shipping Weight | 37.27 lbs (16.9 kg) |
All other specifications 21
| Typical Screen Size | 49” - 86” (1244mm - 2184mm) |
| Volts AC | 120 VAC |
| Wall Stud Compatibility | 16” O.C.24” O.C. |
| Weight Capacity | 200 lbs (90.7 kg) |
| Accessory Type | Power |
| Adjustability | ExtensionLateral ShiftMicro-AdjustableTilt |
| Application | Wall |
| Color | Black |
| Includes PDU | Yes |
| Number of Circuits | 1 |
| Orientation | Landscape |
| Outlet Count | 7 |
| Plug Type | Right angle NEMA 5-15P |
| Post-Installation Leveling Roll | 1" (25 mm) |
| Solution Type | Universal |
| Special Features | ADA Compliant |
| TAA Compliant | No |
| Tilt | -10° / +0° in 2.5° increments |
| UPC | 841872177762 |
| VESA Mounting Pattern | up to 970 x 450mm |
| Certifications | cULusOSHPDUL |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Lever Lock Vertical Plate 17.1 Inches High, 10 Inches Wide
LL-VP2110$53.10
650 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5174$181.60
Camera Shelf for Tempo™ Flat Panel Wall Mount System
AS3A100$191.20
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
Video-Sound Bar Mount for Tempo™ Flat Panel Wall Mount System
AS3A101$209.60
Crestron® UC Bracket Accessory for Tempo™ Flat Panel Wall Mount System
AS3A102$136.00
1000 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5178$230.94
800 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5179Coming soon
HDMI HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G30024$872.99
Verified fitment
Questions about this part
Will the AS3LDP7 fit my display?
This mount is verified against 9,658 display models from 251 manufacturers, including Sony 55BZ30P, Panasonic LH65QM1, Samsung 460CX, LG 100QNED85AU, Sharp 40B553J2U, and Hisense 100QD6QF.
What extra components do I need to buy to use the storage panels?
While the PDU is included, you can expand the integrated storage by adding items such as Proximity™ Component Storage Panels (CSMP9X12) or Lever Lock Vertical Plates (LL-VP2110).
What are the requirements for wall installation?
The mount is compatible with 16" O.C. and 24" O.C. wall studs and features OSHPD, UL, and cULus certifications.
How much space is available for mounting devices behind the screen?
The Lever Lock™ plates allow for 1 RU, 1.75" (44 mm) of storage clearance between the back of the display and the storage panel when positioned at 0-degree tilt.
How do I adjust the display position after it is mounted?
The system provides micro-adjustable, lateral shift, extension, and tilt capabilities, including a 1" (25 mm) post-installation leveling roll to ensure a perfect fit.
