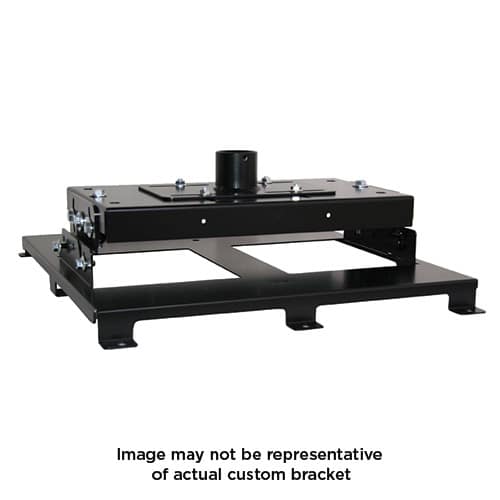

VCM95C
Ceiling mount for heavy LCD/CRT projectors, featuring 250 lbs capacity and independent roll, pitch, and yaw adjustments
The Chief VCM95C provides the heavy-duty support required for mounting large LCD or CRT projectors in ceiling applications. This mount is engineered to handle a weight capacity of 250 lbs (113.4 kg), making it a reliable choice for high-performance projection systems. For precise projector registration, the unit features independent roll, pitch, and yaw adjustments, allowing installers to fine-tune the image placement quickly. Installation versatility is a core feature, offering multiple mounting configurations. You can install the unit as a flush mount to the ceiling, utilize 0.5" threaded rods, or use a 1.5" NPT extension column. To achieve a flush mount, the LPK1 is required. The mount also supports integrated cable management through the top of the assembly without needing extra accessories. For maintenance, the quick connect/disconnect design allows for convenient access to lamps and filters on most projector models. This TAA compliant and UL Listed mount is built for professional, permanent installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 36" x 24" x 8" (914.4 x 609.6 x 203.2 mm) |
| Shipping Weight | 40 lbs (18.1 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | Interface Brackets |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Protective Glass | No |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168715 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Electrical Storage Enclosure
CMA160$302.40
Unistrut Adapter
CMA370$23.20
Questions about this part
What is the weight capacity of the Chief VCM95C?
The VCM95C supports a maximum weight capacity of 250 lbs (113.4 kg), suitable for heavy LCD and CRT projectors.
How do I adjust the projector image orientation with the VCM95C?
This mount features independent roll, pitch, and yaw adjustments to allow for quick and precise projector registration during installation.
What do I need to achieve a flush mount with the VCM95C?
To install the VCM as a flush mount to the ceiling, you will need the LPK1.
Can I use the VCM95C with an extension column?
Yes, the mount is compatible with a 1.5" NPT extension column for various mounting heights.
Does the VCM95C require additional accessories for cable management?
No, the mount features built-in cable management through the top of the mount.
