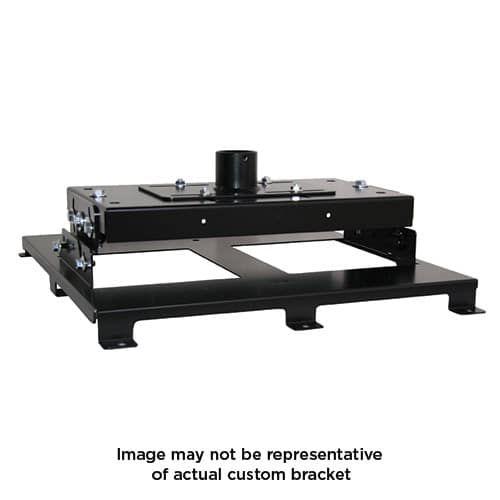

VCM44E
Ceiling-mounted projector mount with 250 lbs capacity and independent roll, pitch, and yaw adjustments
The VCM44E is a heavy-duty ceiling mount designed to provide stable support for large LCD or CRT projectors. This mount is engineered for professional environments requiring precise alignment, featuring independent roll, pitch, and yaw adjustments to facilitate rapid projector registration. For installers requiring specific mounting heights or configurations, the VCM44E supports multiple installation methods, including flush mounting to a ceiling with the LPK1, utilizing 0.5" threaded rods, or using a 1.5" NPT extension column. Integrated cable management allows for routing wires through the top of the mount without needing to purchase separate accessories. This design also includes a quick connect/disconnect feature to ensure convenient access to projector lamps and filters. The system is TAA compliant and UL Listed, making it suitable for various professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 35.65 lbs (16.2 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | Interface Brackets |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Protective Glass | No |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872027258 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Electrical Storage Enclosure
CMA160$302.40
Unistrut Adapter
CMA370$23.20
Questions about this part
How do I mount the VCM44E flush to a ceiling?
To achieve a flush mount installation with the VCM series, you must use the LPK1.
What options are available for mounting height and extension?
The VCM44E can be installed using 0.5" threaded rods, a 1.5" NPT extension column, or for a flush mount, the LPK1.
Does this mount require additional parts for cable management?
No, the VCM44E features built-in cable management through the top of the mount without the need for additional accessories.
Can I use this mount with an NPT column?
Yes, you can use a 1.5" NPT extension column with this mount. The CMA151 is a 1.5 Inch to 1 Inch NPT adapter for this purpose.
Is the VCM44E suitable for government contracts?
Yes, this projector mount is TAA compliant and is UL Listed.
