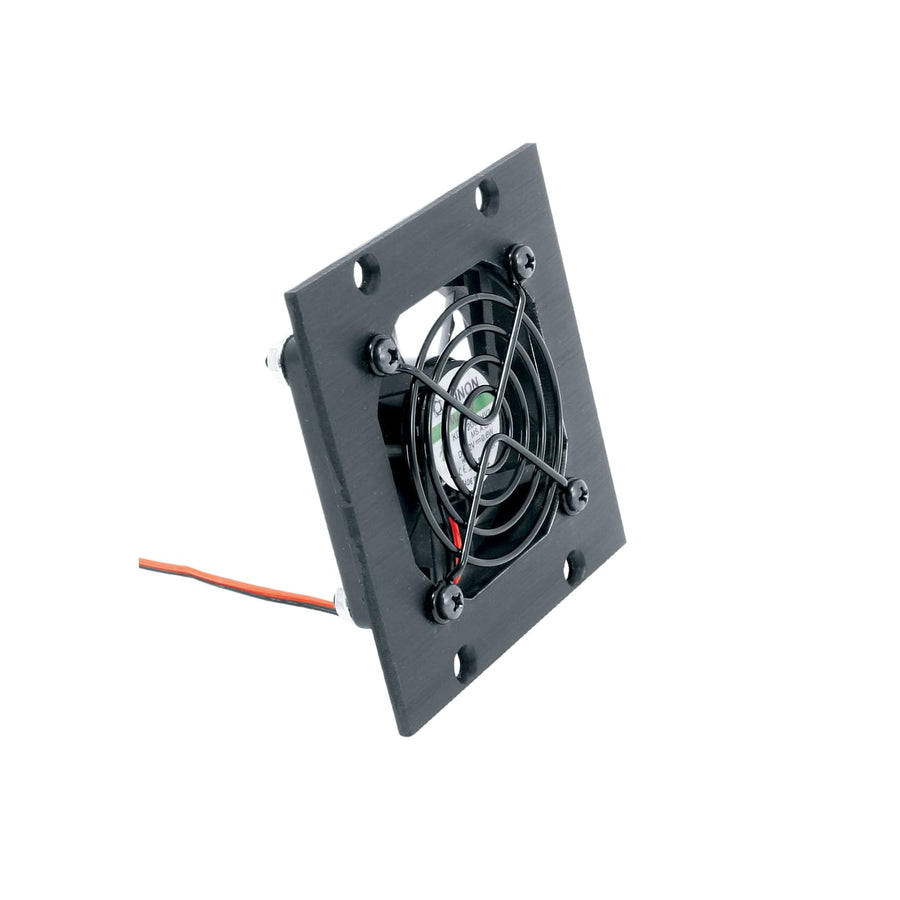

UCP Series Fan 15 CFM Mounts to Frame Kits
15 CFM cooling fan for UCP Series modular panels, operating on 12VDC with integrated pigtail leads
The Middle Atlantic UCP-FAN is a specialized cooling solution designed to extend the lifespan of equipment within an enclosure by actively removing heat. This 15 CFM fan is rated at 25 dBA and operates on 12VDC. It features a black brushed and anodized aluminum mounting plate that secures to the frame via two mounting points. For simplified installation, the unit includes an integrated 12" long pigtail lead and an included power supply. This module is built specifically for use within the UCP Series modular panel system, fitting into FK2, FK4, UCP-CH, UCP-CT, or UCP-SF base series kits, including swinging frames, chassis, and cable trays. It provides a compact cooling footprint with a depth of 0.89 in (2.3 cm), a height of 3.49 in (8.9 cm), and a width of 3.39 in (8.6 cm).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| CFM | 15 |
| Depth | 0.89 in (2.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Shipping Weight | 1.5 lbs (0.7 kg) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| Mounting Points | 2 |
| UCP Module Capacity | 1 |
| UPC | 656747094897 |
You'll need these with it
1 RU Brush Grommet Panel
BR1$86.40
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
Will the UCP-FAN fit in my UCP Series frame?
Yes, this fan kit is designed for UCP Series modular panels and is compatible with FK2, FK4, UCP-CH, UCP-CT, and UCP-SF base series kits, including swinging frames, chassis, and cable trays.
What is the power requirement for the UCP-FAN?
The UCP-FAN operates on 12VDC and features 12" integral pigtail leads. The necessary power supply is included with the kit.
How much airflow does this fan module provide?
This module provides 15 CFM of airflow at a noise rating of 25 dBA.
What materials is the UCP-FAN mounting plate made of?
The fan utilizes an aluminum mounting plate with a black brushed and anodized finish.
What is the total capacity of a UCP-FAN module?
The UCP-FAN is designed to occupy 1 UCP Module capacity within the modular panel system.
