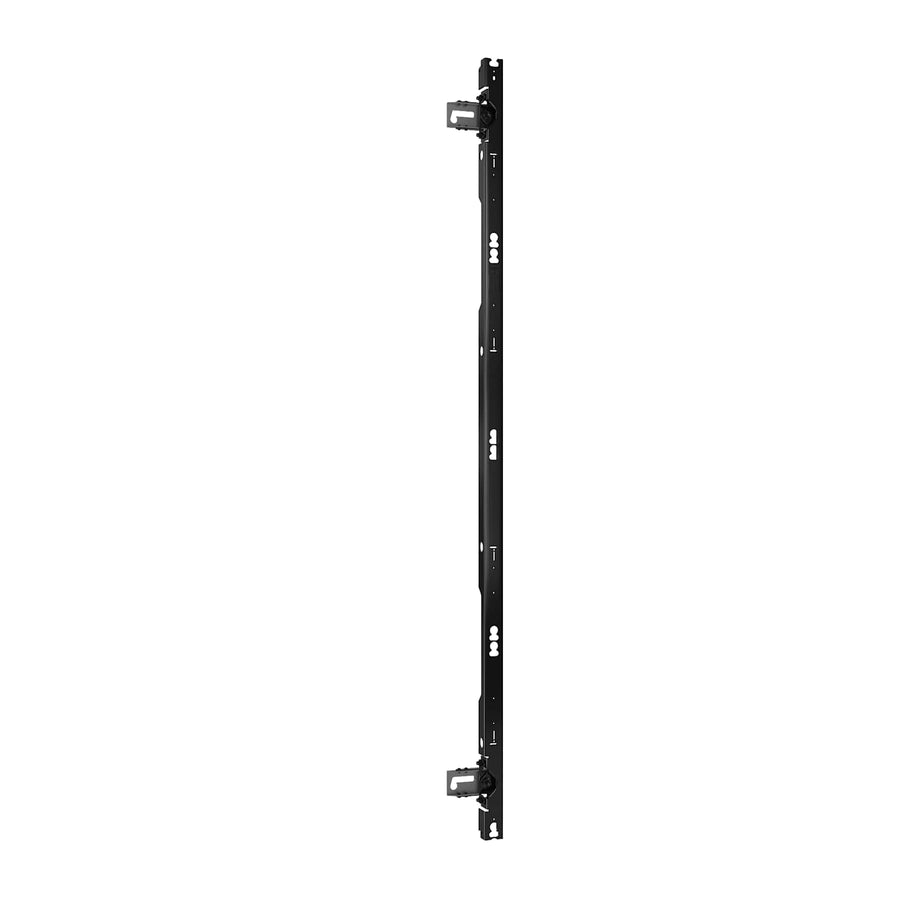

TiLED™ Right dvLED Wall Mount for Unilumin USLIM Series, 2,000 mm Tall
Right-side wall mount for Unilumin USLIM series video walls, 2,000 mm tall, supports 2 displays
The Chief TILD1X2US-R is a modular TiLED™ right-side wall mounting component designed specifically for Unilumin USLIM series video wall configurations. This 2,000 mm tall unit functions as the right-hand boundary of a multi-display setup, allowing installers to create seamless LED video walls by mixing and matching modular components. It is engineered to support 2 displays in a landscape orientation. To achieve a complete installation, this unit must be paired with other components in the TiLED™ series, such as the TILD1X2US-L left-side mount or middle sections like the TILD1X2US-M. Precise alignment is critical for direct view LED displays, and this mount provides essential X, Y, and Z-axis adjustments to ensure flawless positioning. The system features micro-adjustable, height, and lateral shift capabilities, alongside a 0.75” (19 mm) plumb adjustment to maintain a perfectly vertical plane. The equipment depth range for these displays is 5.37" – 6.12" (136mm-156mm). This TAA compliant mounting solution is designed to be easily specified and installed for professional LED video wall projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 5.37" – 6.12" (136mm-156mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 83.25" x 8.5" x 3.5" (211.5 x 21.6 x 8.9 cm) |
| Shipping Weight | 17.1 lbs (7.8 kg) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | Fixed, Lateral Shift, Micro-Adjustable, Height Adjustable |
| Application | Wall |
All other specifications 8
| LED Display Model | Unilumin USLIM |
| Manufacturer | Unilumin |
| Number of Displays | 2 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872176420 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ Left dvLED Wall Mount for Unilumin USLIM Series, 500 mm Tall
TILD1X05US-L$307.20
TiLED™ dvLED Wall Mount Vertical Connector Kit
TILVAB2$53.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
TiLED™ Left dvLED Wall Mount for Unilumin USLIM Series, 2,000 mm Tall
TILD1X2US-L$572.00
TiLED™ Middle dvLED Wall Mount for Unilumin USLIM Series, 500 mm Tall
TILD1X05US-M$307.20
TiLED™ Middle dvLED Wall Mount for Unilumin USLIM Series, 2,000 mm Tall
TILD1X2US-M$572.00
TiLED™ Right dvLED Wall Mount for Unilumin USLIM Series, 500 mm Tall
TILD1X05US-R$307.20
TiLED™ Middle dvLED Wall Mount for Unilumin USLIM Series, 1,000 mm Tall
TILD1X1US-M$307.20
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ Left dvLED Wall Mount for Unilumin USLIM Series, 1,000 mm Tall
TILD1X1US-L$307.20
TiLED™ 1 High dvLED Wall Mount Side Covers for Unilimin USLIM Series
TILSC1HUS$307.20
Verified fitment
Questions about this part
What is the TILD1X2US-R compatibility with Unilumin USLIM models?
It is verified for use with Unilumin USLIM series, including models such as USLIM 1.9, USLIM 2.6, KSLIM 2.9, and KSLIM 3.9.
What do I need to buy to complete the video wall installation?
This is a right-side component; you will need to select appropriate left-side (TILD1X2US-L) or middle (TILD1X2US-M) components to complete your specific configuration.
How does this mount assist with screen alignment?
The mount offers micro-adjustable, height, lateral shift, and 0.75" (19 mm) plumb adjustment to ensure the video wall is perfectly level and aligned.
What is the weight capacity for this mounting component?
The TILD1X2US-R has a weight capacity of 35 lbs (15.9 kg) per unit.
Which installation manual should I use for submittals?
You can refer to the TILD1X05US, TILD1X1US, and TILD1X2US Installation Manual for technical installation guidance.
