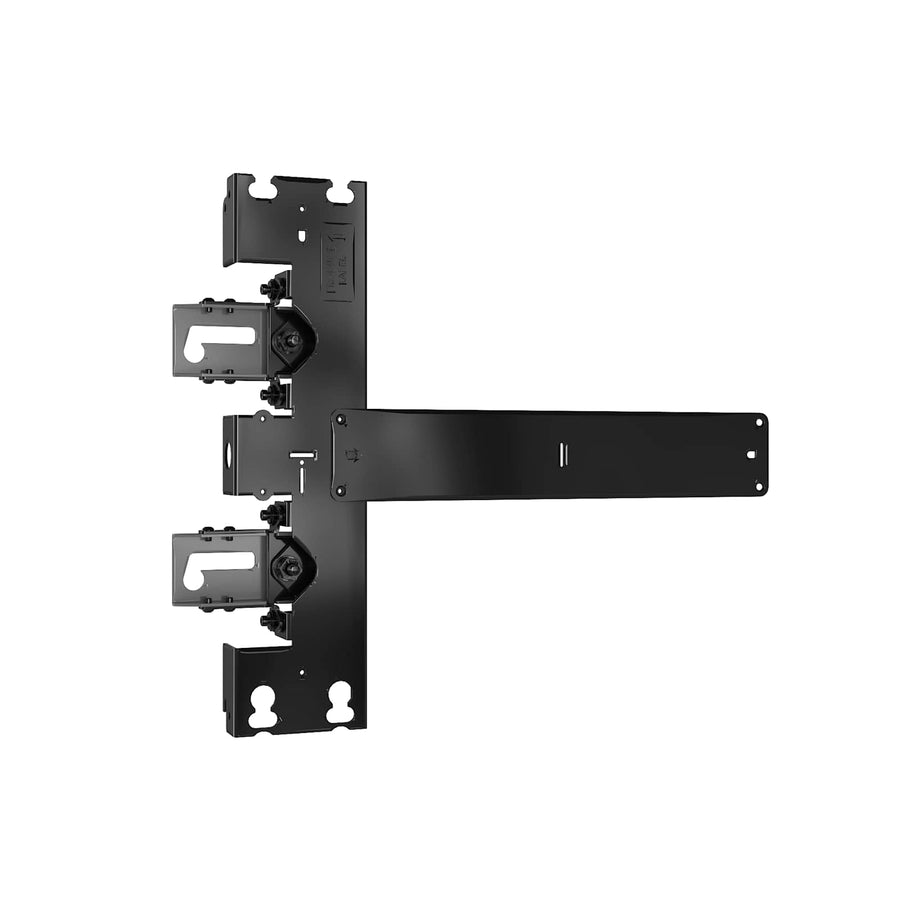

TiLED™ Middle dvLED Wall Mount for Unilumin USLIM Series, 500 mm Tall
Middle section dvLED wall mount for Unilumin USLIM Series, 500 mm height, 35 lbs capacity
The TILD1X05US-M is a middle section mounting component for the TiLED™ modular LED Video Wall Mounting System. Specifically designed for Unilumin USLIM Series displays, this 500 mm tall middle mount provides the structural foundation required for complex, multi-display video wall configurations. Because the TiLED™ system is modular, this SKU functions as the central link between the left and right edge components (such as the TILD1X05US-L and TILD1X05US-R) to create seamless, continuous display surfaces. To ensure a flawless installation, this mount offers essential X, Y, and Z-axis adjustments, including lateral shift, micro-adjustments, and height adjustability. This precision allows installers to correct plumb by up to 0.75" (19 mm) and manage equipment depth ranges between 5.37" and 6.12" (136mm–156mm). This system is TAA compliant and is intended for professional landscape orientation applications. Each single unit has a weight capacity of 35 lbs (15.9 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 5.37" – 6.12" (136mm-156mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 24.75" x 7.5" x 3.2"(628.7 x 190.5 x 81.3 mm) |
| Shipping Weight | 7.7 lbs (3.5 kg) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | Fixed, Lateral Shift, Micro-Adjustable, Height Adjustable |
| Application | Wall |
All other specifications 8
| LED Display Model | Unilumin USLIM |
| Manufacturer | Unilumin |
| Number of Displays | 1 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872176352 |
| Certifications | TAA |
