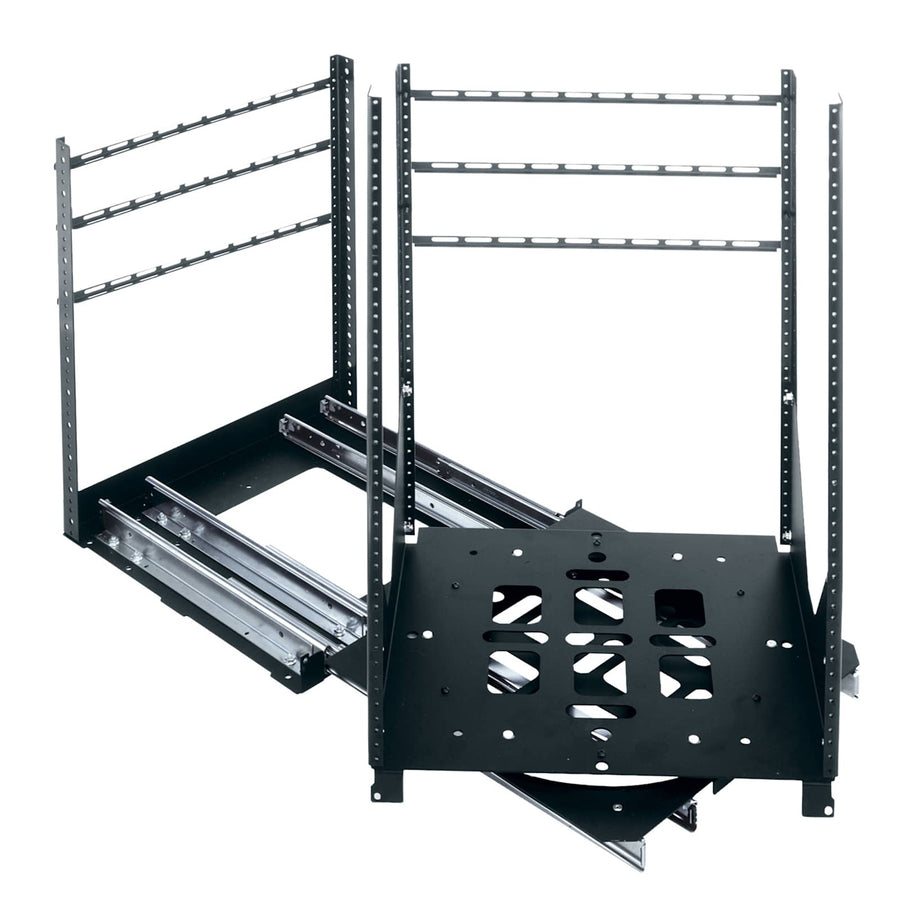

SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-16
16 RU slide-out rotating rack system providing 90-degree access for equipment servicing in cabinets or millwork
The Middle Atlantic SRSR-4-16 is a 16 RU rotating rack system designed to provide easy rear access to equipment connections within millwork, cabinets, or flush in-wall installations. This in-cabinet rack type is engineered to solve the challenge of servicing equipment tucked deep inside an enclosure. The equipment bay can extend and rotate 90 degrees in either direction, a feature that makes the system particularly efficient for smaller enclosures where space is limited. To facilitate easier installation and maintenance, the rotating bay locks securely at 0°, 60°, and 90°. The system features a self-centering mounting base to ensure the unit is aligned perfectly within your cabinet opening. For installation, the frame is removable, allowing for in-shop integration before the unit is moved to the final site. The SRSR-4-16 is TAA compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 19.14 in (48.6 cm) |
| Height | 31 in (78.7 cm) |
| Rack Units | 16 RU |
| Shipping Weight | 58 lbs (26.3 kg) |
| Usable Depth | 17.25 in (43.8 cm) |
| Usable Height | 28 in (71.1 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747043246 |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
100 CFM Fan Panel, Anodized
QFP-2$252.90
Single LED Work Light
LT-CABUTL-SINGLE$261.00
2 RU Utility Rack Drawer
UD2$216.90
Rackmount Power/Cooling, 11 Outlet, 15A & 2-Stage Surge
PDCOOL-1115R$846.00
100 CFM Fan Panel with Display, 27dB
UQFP-4D$1,026.90
1 RU Utility Panel
UP1$25.20
Questions about this part
What is the usable depth of the SRSR-4-16?
The SRSR-4-16 provides a usable depth of 17.25 in (43.8 cm) and a usable height of 28 in (71.1 cm).
Will this rack work for equipment in a tight cabinet?
Yes, the SRSR-4-16 can rotate 90 degrees in either direction and locks at 0°, 60°, and 90° to allow for easy servicing in cramped spaces.
What accessories are compatible with the SRSR series?
Compatible accessories include the UTR1 1 RU Mounting Rackshelf, PD-915R Rackmount Power, and the QBP-2 1 RU BlowerPanel.
Is this rack TAA compliant?
Yes, the SRSR-4-16 is TAA compliant and is manufactured in the USA.
How is the equipment accessed once installed?
The rotating equipment bay can be extended and rotated up to 90 degrees to provide access to rear connections and cabling.
