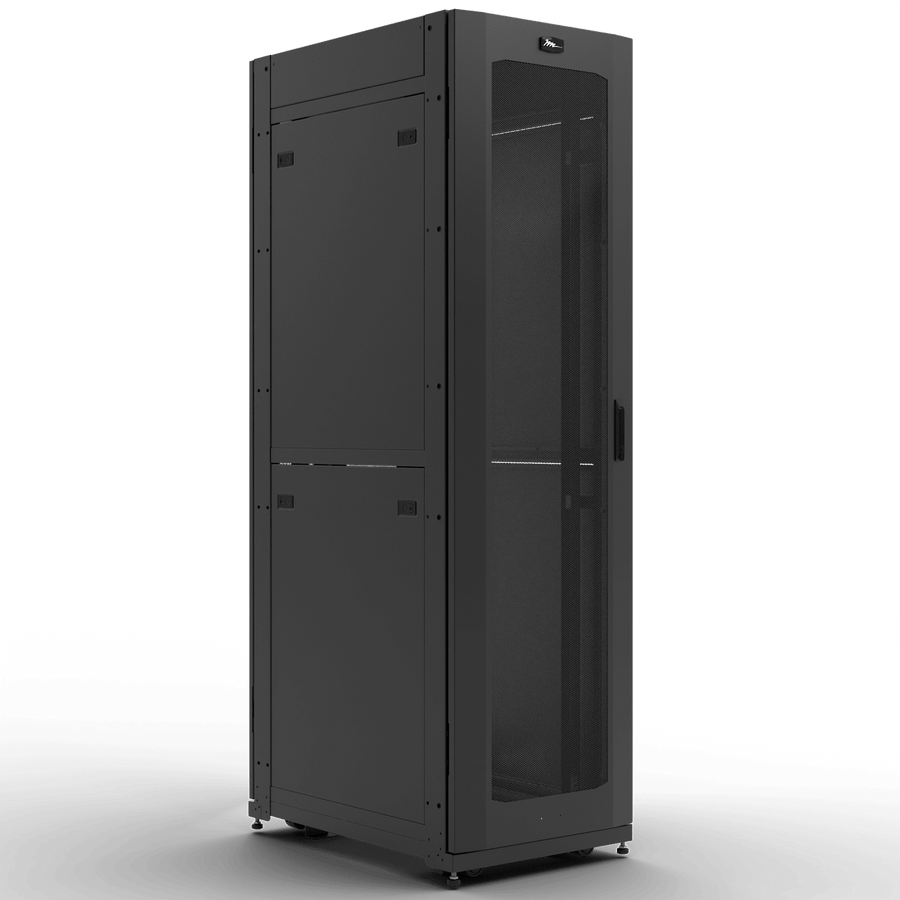

SNE Series Rack SNE24D-4536-P1
45 RU wide security network enclosure kit with 36-inch depth, seismic rating, and TAA compliance
The SNE24D-4536-P1 is a wide security network enclosure kit designed for high-density digital system deployments. This pre-configured 45 RU floor-standing rack features a 24-inch width and a 36-inch depth, providing a usable depth of 32.48 inches and a usable height of 78.75 inches. Built from steel with a black textured powder coat finish, this enclosure is designed for passive front-to-rear airflow, utilizing a 70% open front door and a 70% open area split rear door to facilitate cooling. It is a TAA compliant and UL listed solution that is also seismic rated with a seismic load capacity of 1050 lbs (476.3 kg). This unit is gangable for scalable configurations and is Lever Lock™ compatible, accepting all 21-inch vertical accessories. The enclosure includes four leveling feet, four casters, and two pairs of adjustable cage-nut rackrails, along with 100 6mm cage nuts and rack screws for setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 84.77 in (215.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 311 lbs (141.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 78.75 in (200 cm) |
All other specifications 18
| Width | 24 in (61 cm) |
| Airflow Direction | Passive Front to Rear |
| Component Type | Passive |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | Cage Nut |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | Yes |
| System Type | Digital |
| TAA Compliant | Yes |
| UPC | 656747207921 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
FTA Series 4 Inch DC Fan
FT-FAN$90.00
100 CFM Fan Panel, Anodized
QFP-2$252.90
45 RU Vertical Cable Fingers
SNE-IVCMF-45$173.70
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
100 CFM Fan Panel, 27dB, Anodized
UQFP-4RA$647.10
2 RU Adjustable Rackshelf, 23.5 to 32 Inches Deep
VDS$202.50

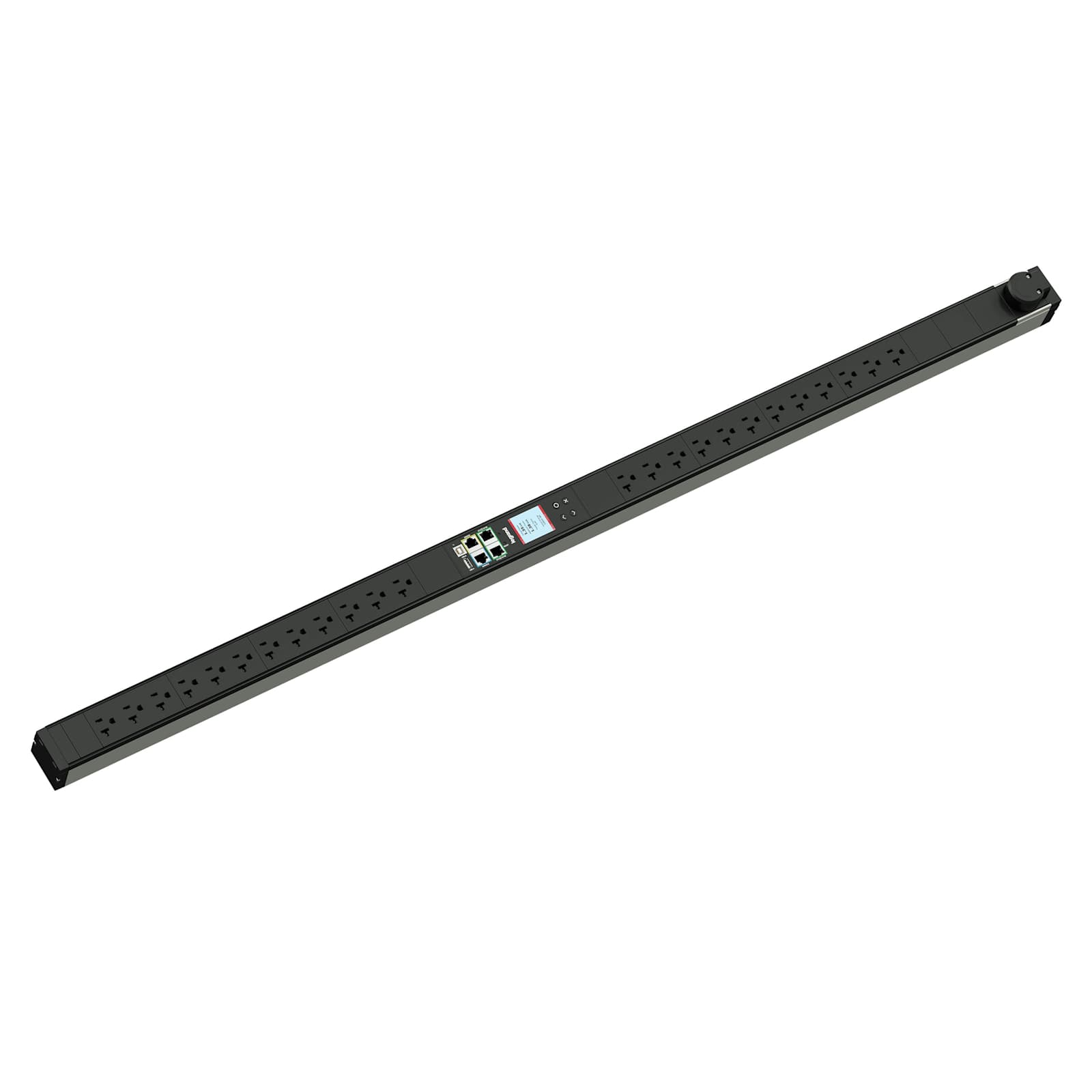

Legrand Vertical ZeroU Network Metered PDU, 24 Outlet
LP-41200$1,310.40
45 RU Wire Grid Lace, 6 Inches Wide
LACE-WB6-45$114.30
Questions about this part
What is the difference between the SNE24D-4536-P1 and its WMRK-4536 replacement?
The SNE24D-4536-P1 is being discontinued on May 1, 2027, and is scheduled to be replaced by the WMRK-4536 model.
What accessories are needed to complete this rack installation?
The kit includes cage nuts and rack screws, but you may need to purchase additional items like the UTR1 1 RU Mounting Rackshelf or UQFP-4RT Fan Panels for full deployment.
Can this enclosure be used in seismic-prone areas?
Yes, this enclosure is seismic rated with a specific seismic load capacity of 1050 lbs (476.3 kg).
How is cable management handled in this enclosure?
The unit includes a solid top with a brush cable pass-through and is compatible with SNE-IVCMF-45 45 RU vertical cable fingers.
Is this enclosure suitable for TAA compliant projects?
Yes, the SNE24D-4536-P1 is TAA compliant and is manufactured in the USA.
