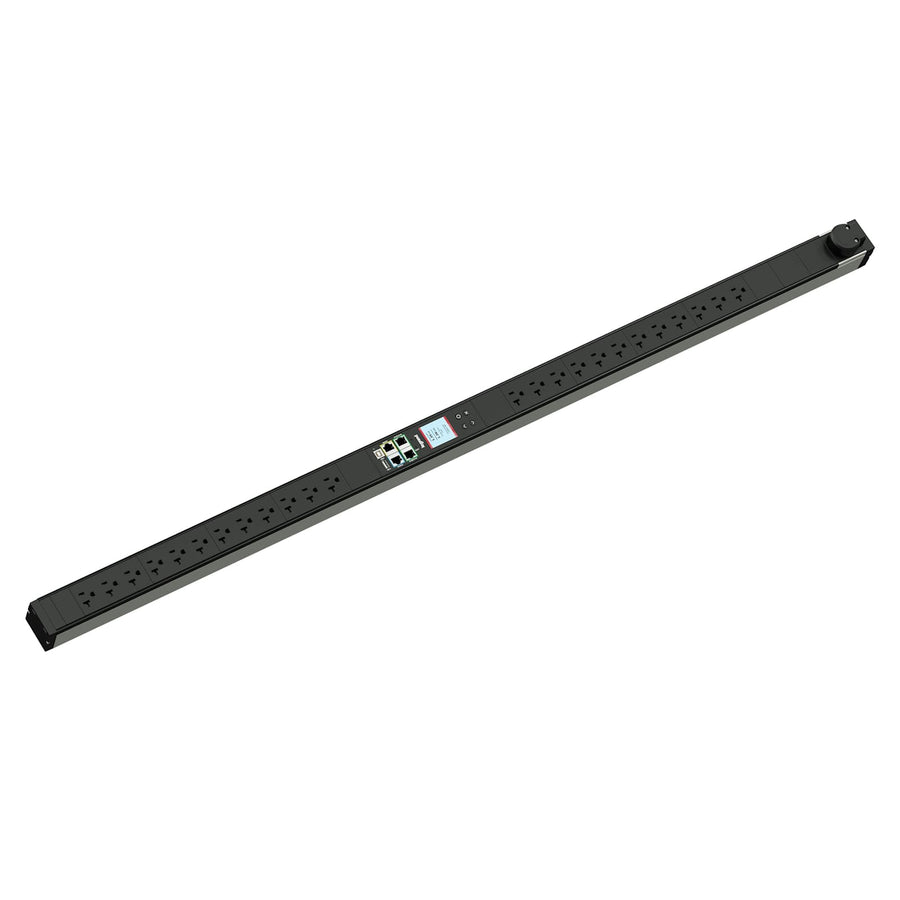

Legrand Vertical ZeroU Network Metered PDU, 24 Outlet
Vertical ZeroU Network Metered PDU with 24 NEMA 5-20R outlets, 20 Amp, and real-time power monitoring
The Legrand LP-41200 is a Vertical ZeroU Network Metered Power Distribution Unit designed to provide real-time, line-level power metering for critical infrastructure. This 20 Amp unit features 24 NEMA 5-20R outlet receptacles, allowing for high-density power distribution within a rack without occupying horizontal RU space. It is equipped with a color LCD screen on the unit itself, which provides immediate visibility and reporting of power usage. For remote management, the LP-41200 enables monitoring of load levels, custom notifications, and user-specified conditions via tablets, smartphones, or computers from nearly anywhere. This unit is TAA Compliant and UL Listed. Installation is facilitated via a vertical button mount, and it includes both horizontal and vertical mounting brackets. The device features a 9.84 ft (3 m) corded power cable with a L5-20P plug and has a slim 2 in (5.1 cm) depth profile.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 51.1 in (129.8 cm) |
| Shipping Weight | 9.96 lbs (4.5 kg) |
| Volts AC | 120 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 24 |
| Plug Type | L5-20P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | Yes |
| UPC | 662875015208 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
Will the LP-41200 fit in my standard server rack?
Yes, this is a ZeroU vertical mount PDU that saves rack space. It is compatible with 42 to 45 RU environments when used with the FWD-UVPB-42-45 or SNE-UVPB-4245-S universal vertical power brackets.
What kind of power plug and outlets does this PDU use?
The LP-41200 features a L5-20P plug type and 24 NEMA 5-20R receptacle outlets rated for 16A.
Can I monitor this PDU remotely?
Yes, the network metering allows you to monitor load levels and receive custom notifications on smartphones, tablets, or computers from nearly anywhere.
How do I install the LP-41200 in a vertical orientation?
The unit utilizes a vertical button mount and comes with both horizontal and vertical mounting brackets for installation flexibility.
Is this PDU TAA compliant?
Yes, the LP-41200 is TAA Compliant and is UL Listed and FCC certified.
