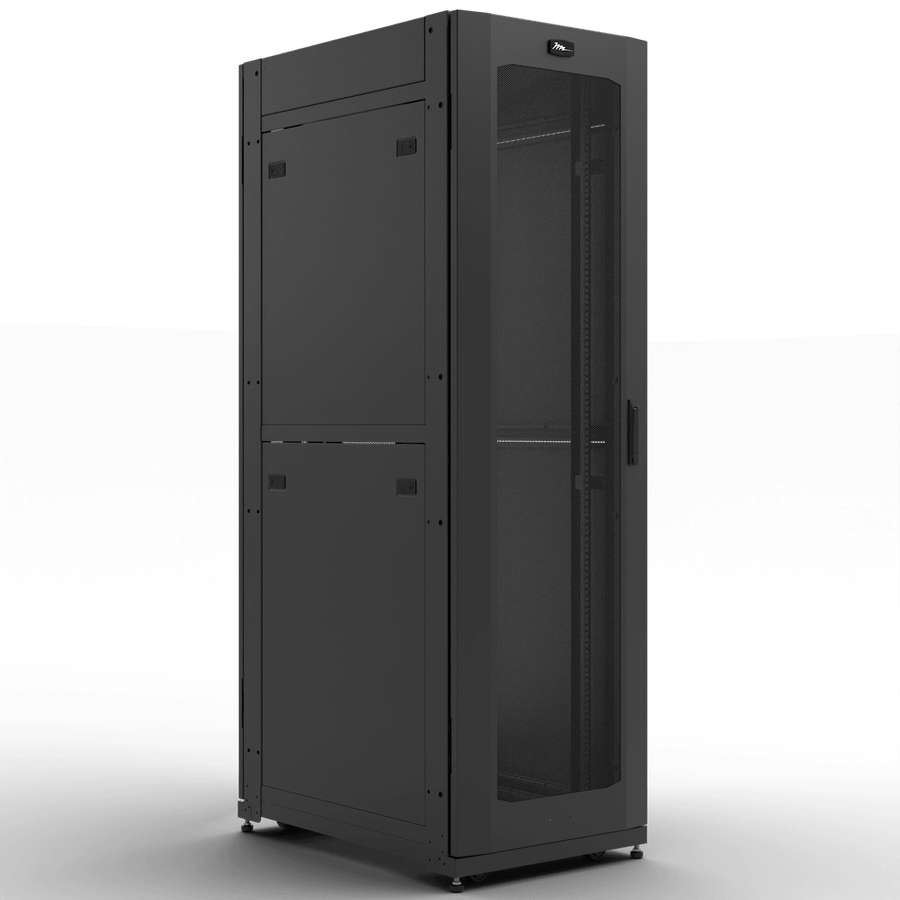

SNE Series Rack SNE24D-4236-P1
42 RU wide security network enclosure with 24" width, seismic rated, and TAA compliant for professional installations
The SNE24D-4236-P1 is a 42 RU SNE Wide Security Network Enclosure Kit designed to house critical network and security infrastructure. This floor-standing steel enclosure features a 24" width and 79.52" height, providing a 32.48" usable depth for high-density equipment mounting. It is configured for passive front-to-rear airflow, utilizing a 70% open front door and a split rear door with a 70% open area to optimize thermal management. The unit is Seismic Rated with a seismic load capacity of 1050 lbs (476.3 kg) and is UL Listed with a UL load capacity of 3000 lbs (1,360.8 kg). This TAA compliant kit is pre-configured and includes a solid top with a brush cable pass-through, two pairs of adjustable cage-nut rackrails, 100 6mm cage nuts and rack screws, four leveling feet, and four casters. This specific model is scheduled for discontinuation on December 1, 2026; the manufacturer recommends the WMRK-4236 as the designated replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 79.52 in (202 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 302 lbs (137 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 73.5 in (186.7 cm) |
All other specifications 18
| Width | 24 in (61 cm) |
| Airflow Direction | Passive Front to Rear |
| Component Type | Passive |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | Cage Nut |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | Yes |
| System Type | Digital |
| TAA Compliant | Yes |
| UPC | 656747207792 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

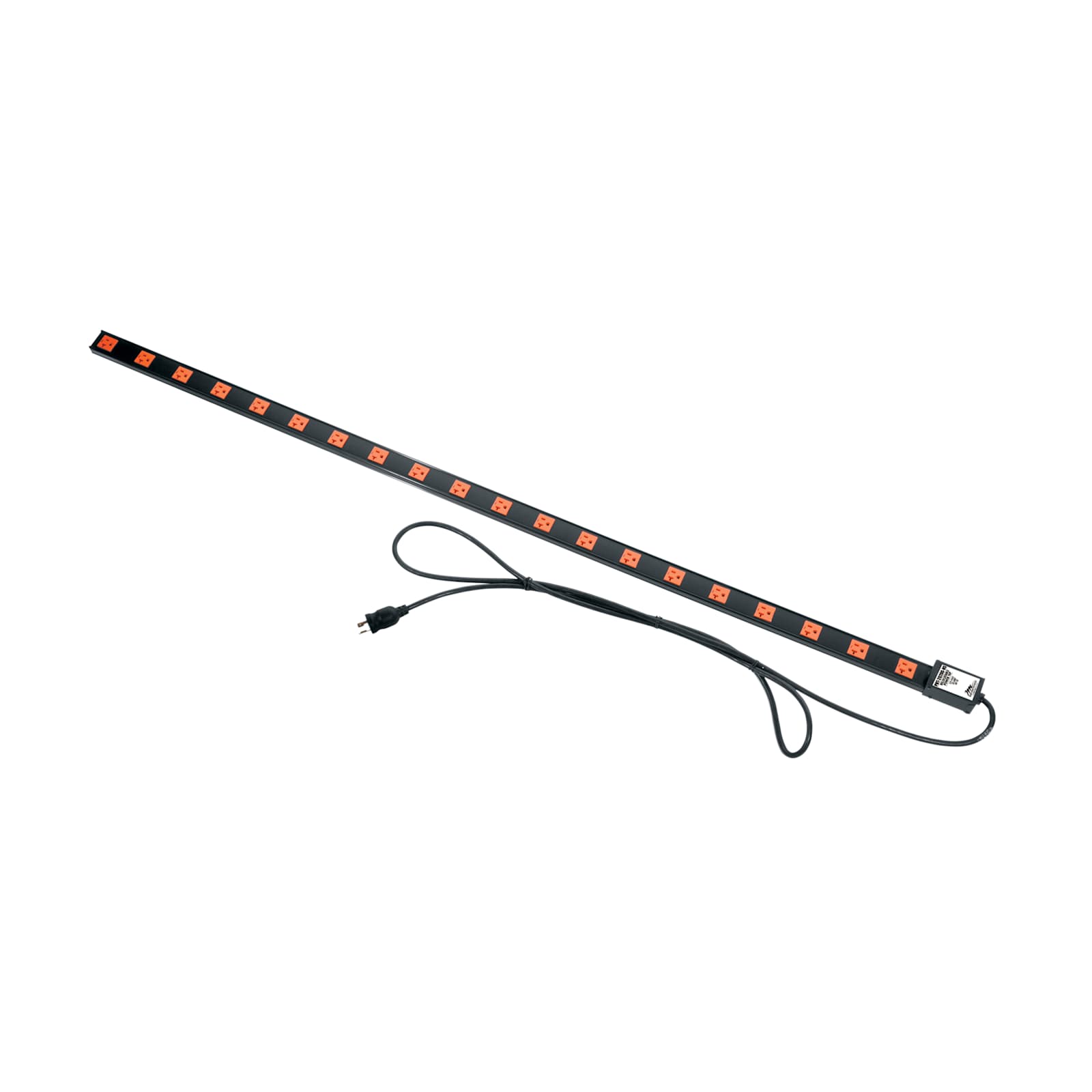

PDT Low Profile Vertical Power Strip with TwistLock Plug, 20 Outlet, 20A
PDT-2020TL-NS$450.90
PDT Low Profile Vertical Power Strip with TwistLock Plug, 20 Outlet, 20A with Local Meter
PDT-2020TL-M-NS$703.80
Pre-Configured MPR Raceway, 20A Dual Circuit
PCR-2X320A$1,794.60

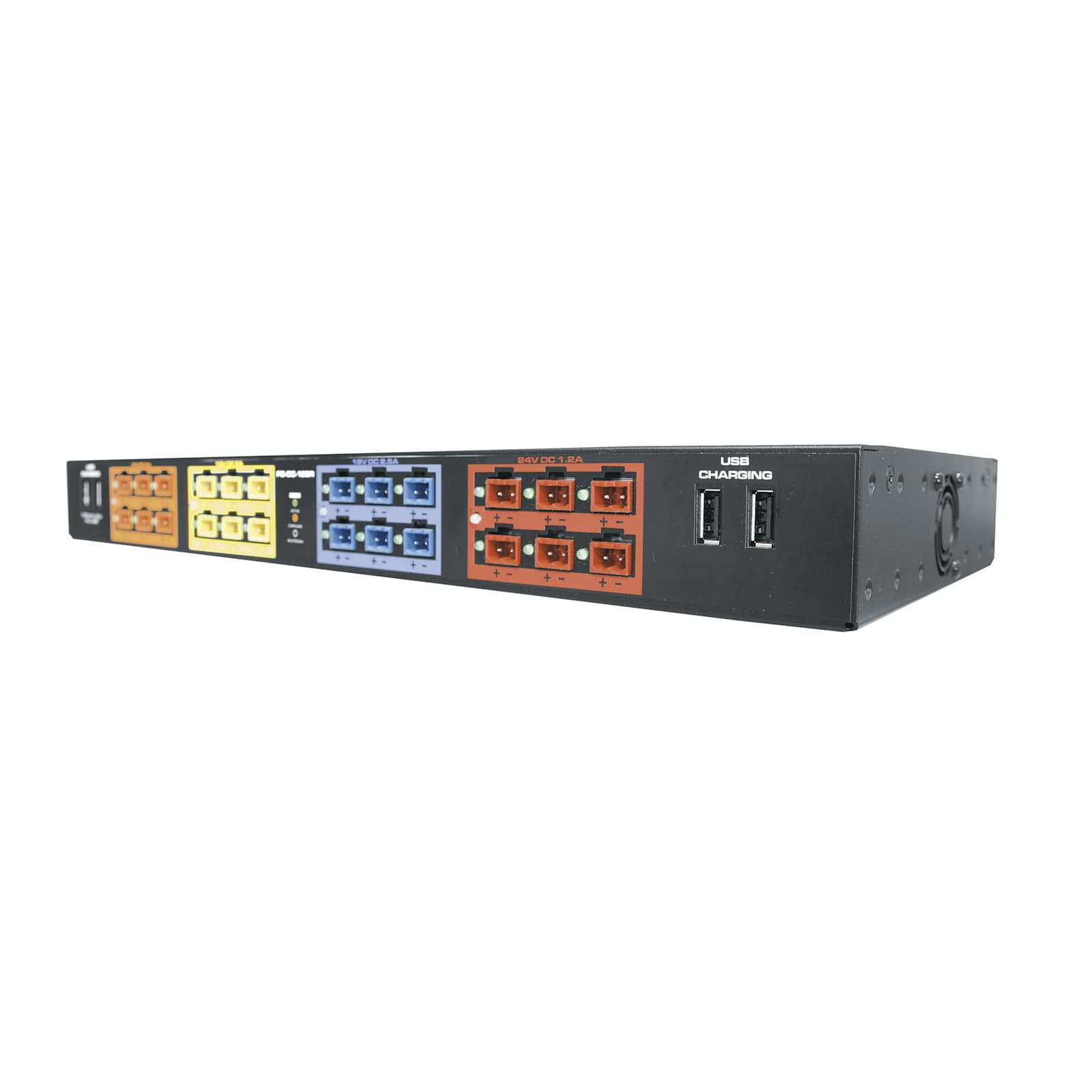

125W Multi-Mount Universal DC Power Distribution for Small to Medium Devices
PD-DC-125R$990.00

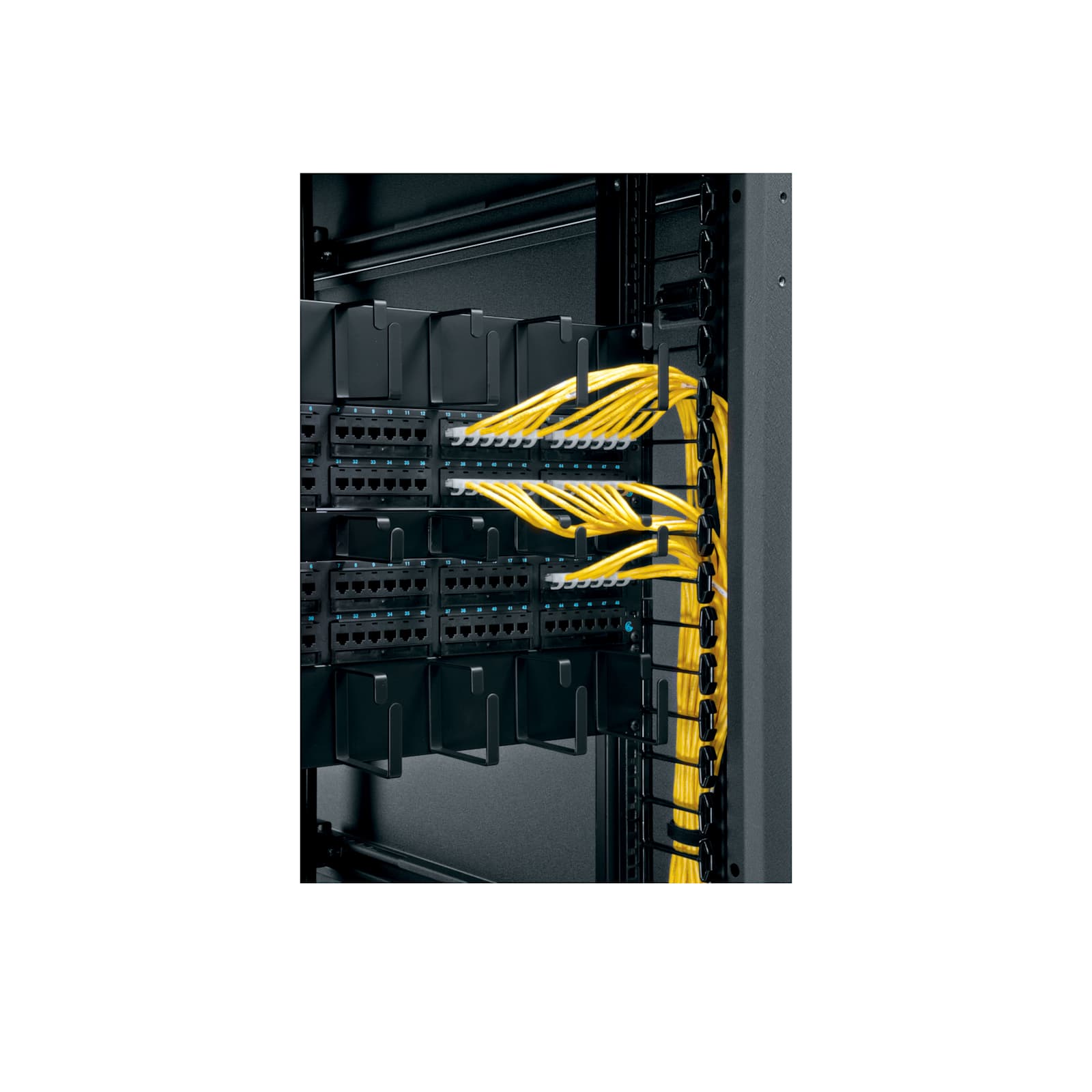

42 RU Vertical Cable Fingers
SNE-IVCMF-42$165.60
42 RU Rackrail 10-32 for 24 Inch Wide SNE Series
SNE24-1032-RR42$351.90

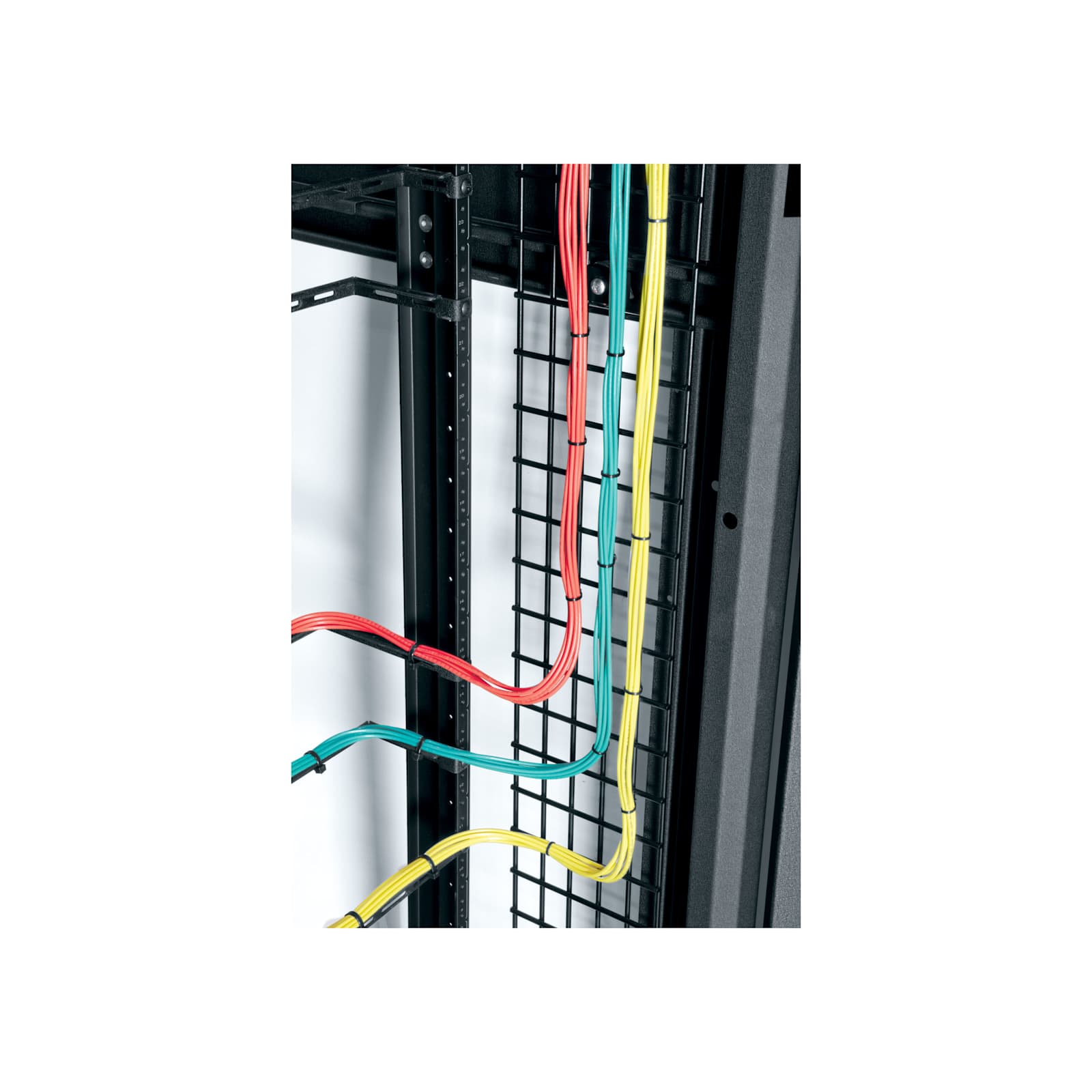

42 RU Wire Grid Lace, 6 Inches Wide
LACE-WB6-42$107.10
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
What is the recommended replacement for the SNE24D-4236-P1?
Middle Atlantic recommends the WMRK-4236 as the replacement for this model, which is scheduled for discontinuation on December 1, 2026.
Is the SNE24D-4236-P1 seismic rated?
Yes, this enclosure is Seismic Rated with a seismic load capacity of 1050 lbs (476.3 kg) and is UL Listed.
What is the usable depth and height for equipment mounting?
The SNE24D-4236-P1 provides a usable height of 73.5" (186.7 cm) and a usable depth of 32.48" (82.5 cm).
Can I mount vertical accessories in this SNE enclosure?
Yes, this kit is Lever Lock compatible and accepts all 21" vertical accessories.
Does this enclosure support TAA compliance for government contracts?
Yes, the SNE24D-4236-P1 is TAA Compliant and is manufactured in the USA.
