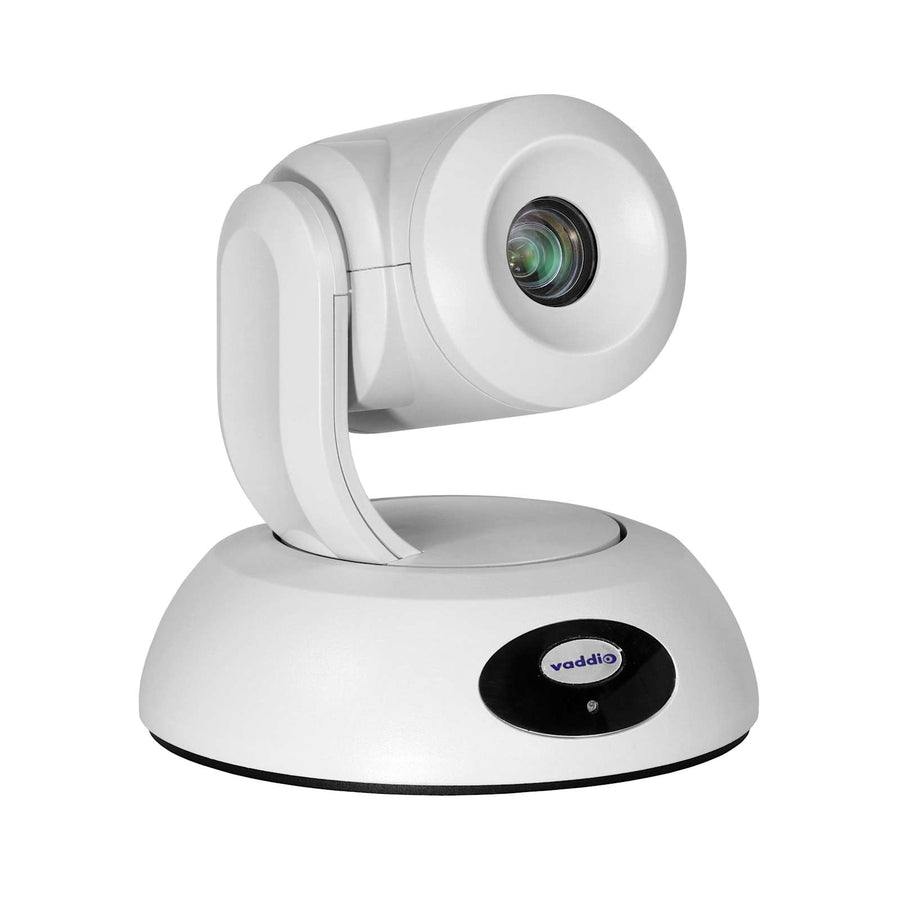

RoboSHOT 30E SDI
White PTZ camera with 30x total zoom, offering simultaneous 3G-SDI, HDMI, and H.264 IP streaming
The Vaddio RoboSHOT 30E SDI is a professional PTZ camera designed for high-definition video in large meeting rooms, lecture halls, and houses of worship. Utilizing a 1/2.5-type Exmor R CMOS sensor, this camera delivers high-quality 1080p 60 video, even in low-light environments where minimum illumination is 1 Lux (F1.6). It features 30x total zoom, comprised of 20x optical zoom and 10x IntelliZoom™ image processing, which maintains high resolution by analyzing pixel patterns rather than simple digital cropping. This unit supports simultaneous 3G-SDI, HDMI, and IP (H.264) streaming for versatile integration into any AV signal chain. Control is highly flexible via a built-in web-based user interface, IR remote, joystick, RS232, Telnet, or Trigger. For smooth, natural movement, the camera utilizes Vaddio’s Tri-Synchronous Motion technology and silent BLDC direct drive motors. This specific white variant is TAA compliant and includes a PoE+ midspan power injector for simplified power delivery over the network.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTriggerWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | 3G SDIHDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | 3G SDIHDMIIP Streaming |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503420 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Thin Profile Wall Mount Tall
535-2000-246$177.30
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Vaddio Device Controller
999-42300-000$855.00
PoE+ Midspan Power Injector
451-0400-055$187.20
Thin Profile Wall Mount Long
535-2000-245$177.30
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
RoboSHOT 12E SDI
999-99300-000$3,150.00
Questions about this part
Will this camera work for my large lecture hall or house of worship?
Yes, the RoboSHOT 30E SDI is specifically designed for large and medium rooms, providing a 70.2° wide field of view and 30x total zoom to reach subjects at distance.
What video outputs are available on the RoboSHOT 30E SDI?
This camera supports simultaneous outputs for 3G-SDI, HDMI, and H.264 IP streaming (RTSP/RTMP) for flexible distribution.
How is the camera powered and what is included in the package?
The camera is powered via PoE+ and the package includes a PoE+ midspan power injector, a thin profile wall mount, and a Vaddio IR Remote Commander.
How do I control the camera remotely?
You can manage the camera through a built-in web-based user interface over an IP network, or via RS232, Telnet, or a joystick.
Which mounting options are compatible with this SKU?
This unit is compatible with various Vaddio mounts, including the 535-2000-246 Thin Profile Wall Mount Tall and the 535-2000-206 Suspended Ceiling Mount.
