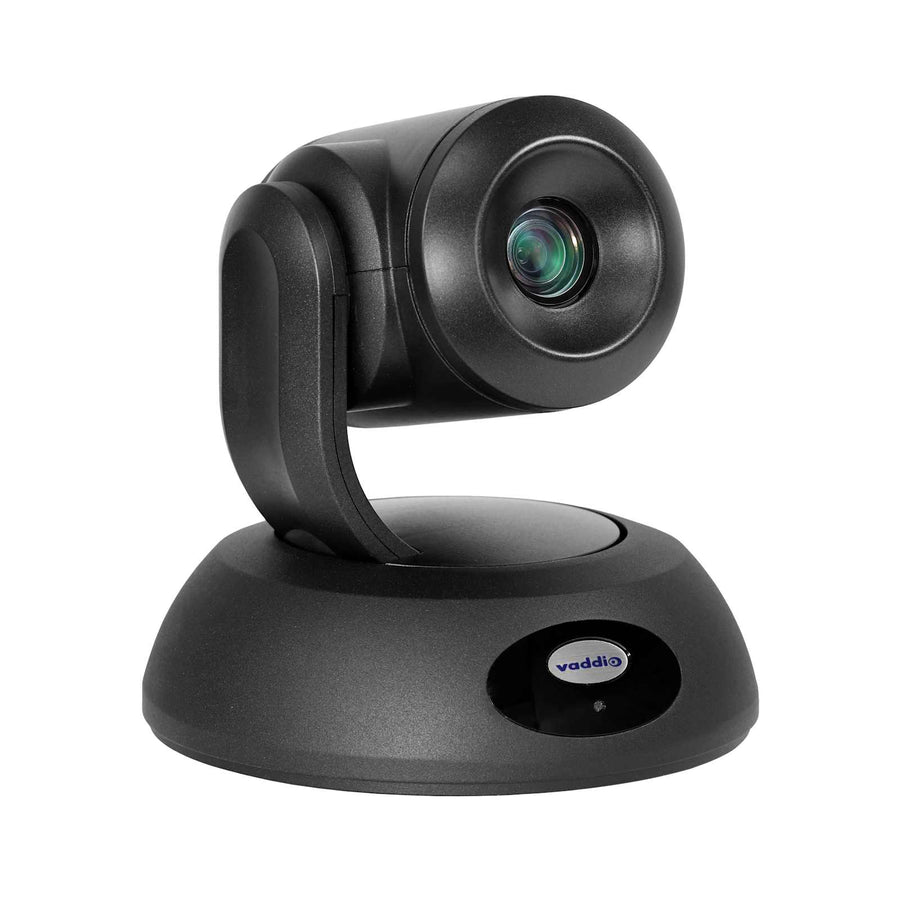

RoboSHOT 12E SDI
PTZ camera with 12x optical zoom, 1080p60 resolution, and simultaneous 3G-SDI, HDMI, and IP H.264 streaming
The Vaddio RoboSHOT 12E SDI is a professional A/V presentation camera designed for small to medium rooms, such as classrooms and conference rooms, that require a wide angle of view. This PTZ camera utilizes a 1/2.5-type Exmor R CMOS sensor to deliver high-definition 1080p/60 video quality, featuring enhanced wide dynamic range to maintain detail in environments with uneven lighting. It features a 12x optical zoom and a field of view ranging from 70.2° at the wide end to 6.8° at the tele end. For flexible deployment, it provides simultaneous 3G SDI, HDMI, and IP (H.264) streaming. The camera is equipped with silent BLDC direct drive motors and Vaddio's Tri-Sync Motion technology for smooth, natural movement across all three axes. Control is versatile, offering a built-in web-based user interface for remote IP management, as well as RS232, Telnet, and IR remote options. This TAA-compliant unit is ideal for live streaming to platforms like YouTube or Facebook via RTSP or RTMP formats.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | 3G SDIHDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | 3G SDIHDMIIP Streaming |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503314 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
PoE+ Midspan Power Injector
451-0400-055$187.20
Thin Profile Wall Mount Tall
535-2000-246$177.30
Thin Profile Wall Mount Long
535-2000-245$177.30
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
Vaddio Device Controller
999-42300-000$855.00
RoboSHOT 30E SDI
999-99330-000$3,150.00
ProductionVIEW HD-SDI MV
999-5655-000Discontinued
Questions about this part
The camera features simultaneous outputs for 3G-SDI, HDMI, and IP (H.264) streaming.
The camera features simultaneous outputs for 3G-SDI, HDMI, and IP (H.264) streaming.
What is the pan and tilt range of this Vaddio camera?
This unit offers a pan range of ±150° and a tilt range from +90° to -30°.
Can I manage this camera remotely over a network?
Yes, it includes a built-in web-based user interface for remote management via IP, and also supports RS232 and Telnet control.
What accessories are needed for installation?
This package includes a thin profile wall mount with mounting hardware, a Vaddio IR Remote Commander, and a PoE+ midspan power injector.
Is there a way to control multiple RoboSHOT cameras at once?
Yes, you can use the free Vaddio Deployment Tool desktop application to easily deploy and manage hundreds of conference rooms.
