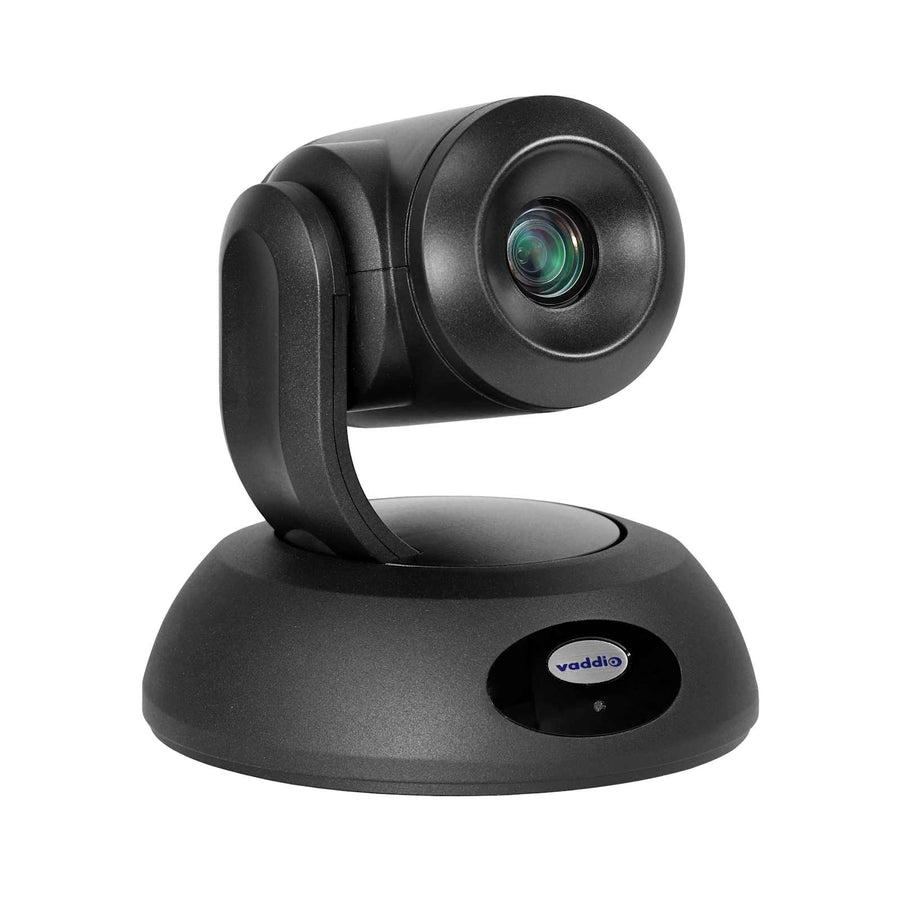

RoboSHOT 30E SDI
Professional PTZ camera with 20x optical zoom, 1080p60 resolution, and simultaneous 3G-SDI, HDMI, and IP streaming
The Vaddio RoboSHOT 30E SDI is a professional-grade PTZ camera engineered for high-definition performance in large meeting rooms, lecture halls, and houses of worship. It features a 1/2.5-type Exmor R CMOS sensor that provides superior light-gathering capabilities, delivering sharp 1080p 60 video even in environments with minimum illumination of 1 Lux (F1.6). This camera offers a versatile 20x optical zoom supplemented by 10x IntelliZoom™ technology, which uses advanced image processing to maintain high resolution at greater distances. Engineered for flexible deployment, the RoboSHOT 30E SDI supports simultaneous 3G SDI, HDMI, and IP (H.264) streaming. It is powered via PoE+ and includes a midspan power injector. For movement, it utilizes silent BLDC direct drive motors and Vaddio’s Tri-Synchronous Motion technology, allowing all three axes to move simultaneously for natural, ultra-smooth motion. Control is highly accessible via a built-in web-based user interface, IR remote, or traditional interfaces like RS232, Telnet, and joystick. This TAA compliant model is ideal for large-scale deployments requiring remote IP management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTriggerWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | 3G SDIHDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | 3G SDIHDMIIP Streaming |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503413 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Thin Profile Wall Mount Tall
535-2000-246$177.30
PoE+ Midspan Power Injector
451-0400-055$187.20
Thin Profile Wall Mount Long
535-2000-245$177.30
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
RoboSHOT 12E SDI
999-99300-000$3,150.00
Vaddio Device Controller
999-42300-000$855.00
Questions about this part
Will the RoboSHOT 30E SDI work in low-light environments?
Yes, the 1/2.5-type Exmor R CMOS sensor is designed for high-definition performance even at a minimum illumination of 1 Lux (F1.6).
What video outputs are available on the RoboSHOT 30E SDI?
The camera provides simultaneous 3G SDI, HDMI, and IP streaming (H.264) for flexible integration into any AV system.
How is the camera powered and what is included?
This unit is powered via PoE+ and the package includes a PoE+ midspan power injector, a thin profile wall mount, and an IR remote commander.
What is the total zoom capability of this camera?
The camera features a 20x optical zoom combined with 10x IntelliZoom™ processing for a total of 30x magnification.
Can I manage this camera remotely over my network?
Yes, it features a built-in web-based user interface for remote control and management via the IP network.
