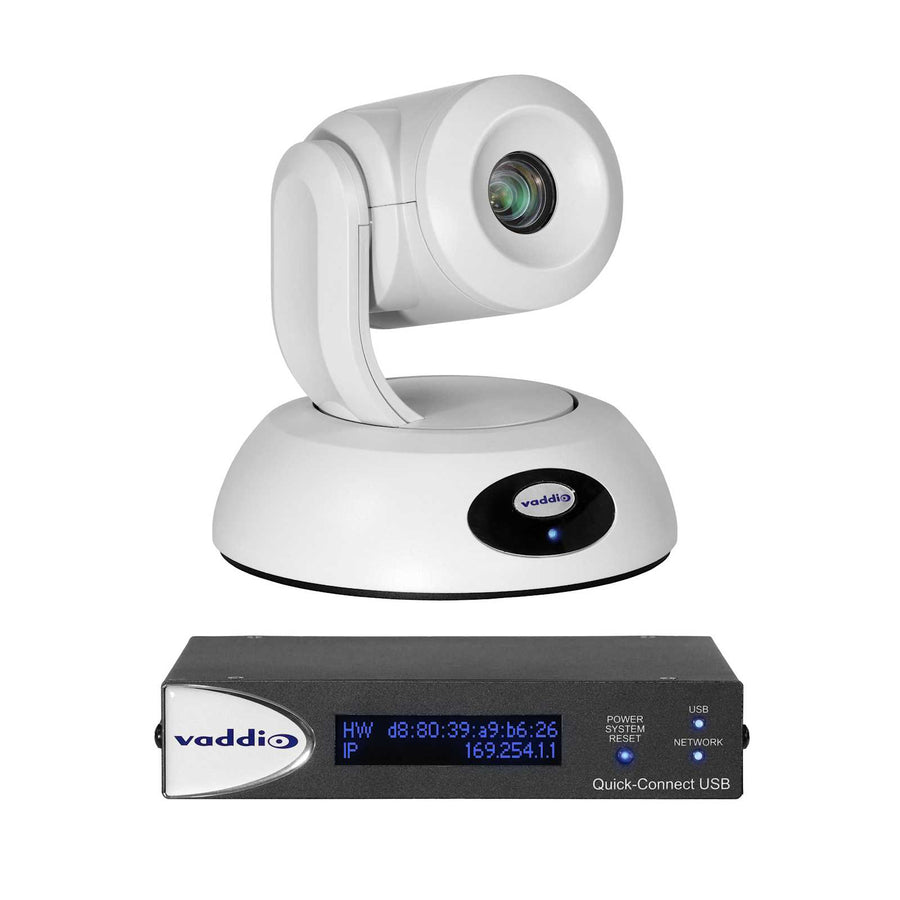

RoboSHOT 30E QUSB System
White PTZ camera system with 30x total zoom, 1080p 60 video, and QUSB quick-connect interface
The RoboSHOT 30E QUSB System is a professional white PTZ camera designed for high-performance video in large rooms, lecture halls, and houses of worship. This system utilizes Vaddio’s Quick-Connect™ USB interface to deliver high-definition 1080p 60 video, power, and control over just two Cat-5 cables at distances up to 100' (30.5 m). At the heart of the camera is a 1/2.5-type Exmor R CMOS sensor with 8.51 Megapixels, providing superior light-gathering and contrast even in low-light environments with a minimum illumination of 1 Lux (F1.6). The 30E features a 20x optical zoom supplemented by 10x IntelliZoom™ image processing, allowing for significant digital magnification without the loss of image resolution typically caused by electronic cropping. For smooth operation, the camera employs silent BLDC direct drive motors and Tri-Sync Motion technology, which enables the pan, tilt, and zoom axes to move simultaneously for natural, fluid motion. Control is highly versatile, supporting IR remote, joystick, RS232, Telnet, or a built-in web-based user interface for remote management via an IP network. This TAA-compliant system is ideal for integrators requiring reliable, high-definition remote camera solutions for complex AV installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 100 in (254 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 20" (508 x 0 x 0 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 38
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | With OneLINK EZIM |
| Output Ports | HD YPbPrHDMIUSB 2.0 |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.78A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QUSB |
| Signal Type | HD YPbPrHDMIIP StreamingUSB 2.0 |
| Solution Type | Camera with Extension |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503185 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
Thin Profile Wall Mount Tall
535-2000-246$177.30
RoboSHOT 30E AVBMP
999-99100-500$5,454.00
RoboSHOT 30E QCCU System
999-99170-000$7,664.40
Thin Profile Wall Mount Long
535-2000-245$177.30
RoboSHOT 30E QDVI System
999-99160-000$7,202.70
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
24 Volt Power Supply (2.08 Amp)
451-2000-024$78.30
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Questions about this part
Will this RoboSHOT 30E system work for my large lecture hall installation?
Yes, this system is specifically rated for large rooms and lecture halls. It provides high-quality 1080p 60 video and can be extended up to 100' (30.5 m) using two Cat-5 cables.
What video outputs are available through the QUSB interface?
The Quick-Connect USB interface supports USB 2.0 (UVC) streaming, H.264 streaming via RTSP or HLS, and provides both HDMI and HD analog component (YPbPr) video outputs.
Does this camera support remote control over a network?
Yes. You can manage the camera via its built-in web-based user interface over an IP network, or use RS232 and Telnet for 3rd party control.
What is the difference between optical and IntelliZoom on this model?
The camera features a 20x optical zoom for physical lens magnification and an additional 10x IntelliZoom™ which uses pattern matching to increase magnification without compromising image resolution.
What do I need to purchase to complete the installation?
This QUSB system includes the camera, thin profile wall mount, IR remote, QUSB interface, and power supply. For specific mounting needs, you may require a 1/2 Rack Mounting Kit (998-6000-004) or an Offset Drop-Down Mount (535-2000-296).
