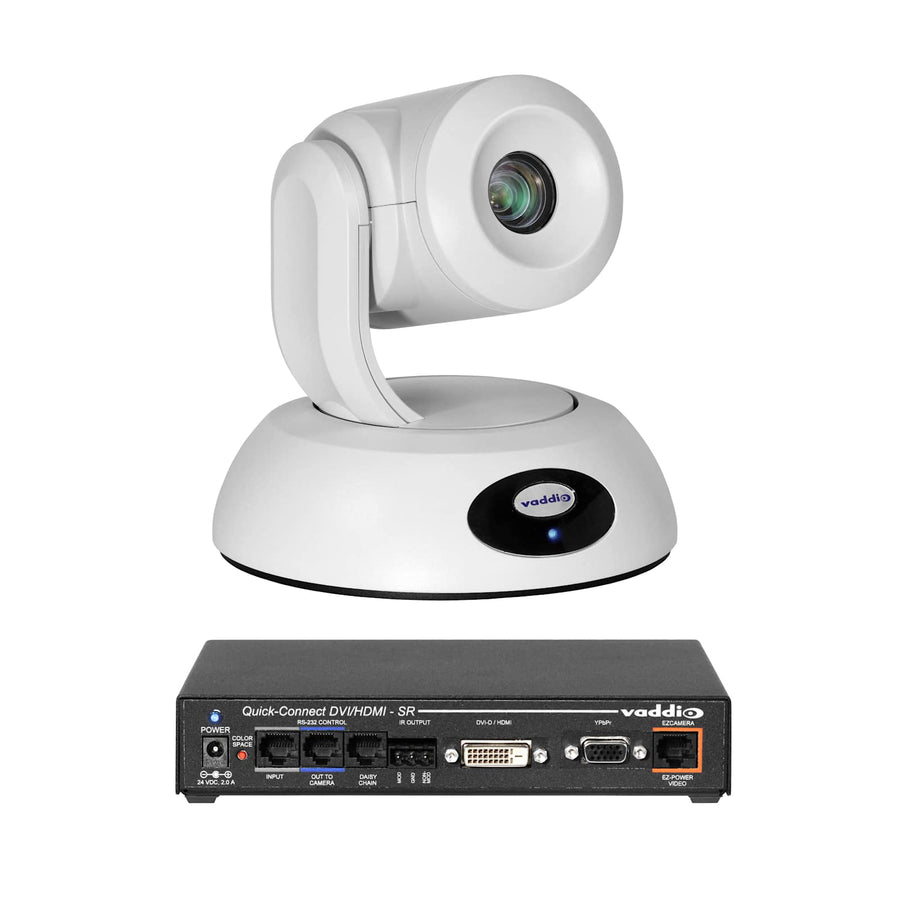

RoboSHOT 30E QDVI System
White PTZ camera system featuring 30x zoom, 1080p 60 resolution, and Quick-Connect QDVI for simultaneous HDMI and YPbPr outputs
The RoboSHOT 30E QDVI System is a professional-grade PTZ camera solution designed for high-definition video performance in medium to large rooms. This white system utilizes the Quick-Connect™ DVI/HDMI (QDVI) interface to deliver simultaneous analog YPbPr HD video and digital video (DVI-D or HDMI) outputs via separate connectors, making it an ideal choice for complex video conferencing, multiple monitoring setups, or large-scale projection. The camera features a 1/2.5-type Exmor R CMOS sensor and 8.51 Megapixel resolution to ensure striking 1080p/60 video quality, even in challenging, low-light environments with a minimum illumination of 1 Lux (F1.6). Equipped with 20x optical zoom and an additional 10x IntelliZoom™ Image Processing, the RoboSHOT 30E maintains high resolution even when zooming at significant distances. The system employs silent BLDC direct drive motors and Tri-Sync Motion technology, allowing all three axes to move simultaneously for smooth, natural camera movement. For simplified installation, power, video, and control are transmitted over two Cat.5 cables for distances up to 100' (30.5m). This TAA-compliant system is managed via a built-in web-based user interface, RS232, Telnet, or the included IR Remote Commander, facilitating easy remote management and IT control in lecture halls, conference centers, and houses of worship.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 150 in (381 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 20" (508 x 0 x 0 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 38
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | DVI DHD YPbPrHDMI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.0A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QDVI |
| Signal Type | HD YPbPrHDMIRS 232 |
| Solution Type | Camera with Extension |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503017 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Thin Profile Wall Mount Tall
535-2000-246$177.30
RoboSHOT 30E AVBMP
999-99100-500$5,454.00
RoboSHOT 30E QCCU System
999-99170-000$7,664.40
RoboSHOT 30E QUSB System
999-99190-000$7,569.00
Thin Profile Wall Mount Long
535-2000-245$177.30
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
24 Volt Power Supply (2.08 Amp)
451-2000-024$78.30
1-RU Rack Panel for 2 Interfaces
998-6000-003$80.10
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Questions about this part
Will this RoboSHOT 30E fit my specific room size?
The RoboSHOT 30E is optimized for use in medium and large rooms, such as lecture halls, conference centers, and houses of worship.
What is the maximum cable run for the RoboSHOT 30E QDVI?
The system can transmit power, video, and control over two Cat.5 cables for distances up to 100' (30.5m).
What video outputs are included with the QDVI system?
The QDVI interface provides simultaneous analog HD YPbPr and digital HDMI or DVI-D outputs via separate connectors.
How can I remotely control the camera?
You can manage the camera through a built-in web-based user interface via an IP network, or via RS232, Telnet, or the included IR Remote Commander.
What do I need for a full installation?
The package includes the camera, a thin profile wall mount with hardware, a QDVI SR Interface, an IR Remote Commander, a 24V power supply, and a US power cord.
