RoboSHOT 12E SDI

RoboSHOT 12E SDI

999-99300-000W
TAA COMPLIANTIN STOCK

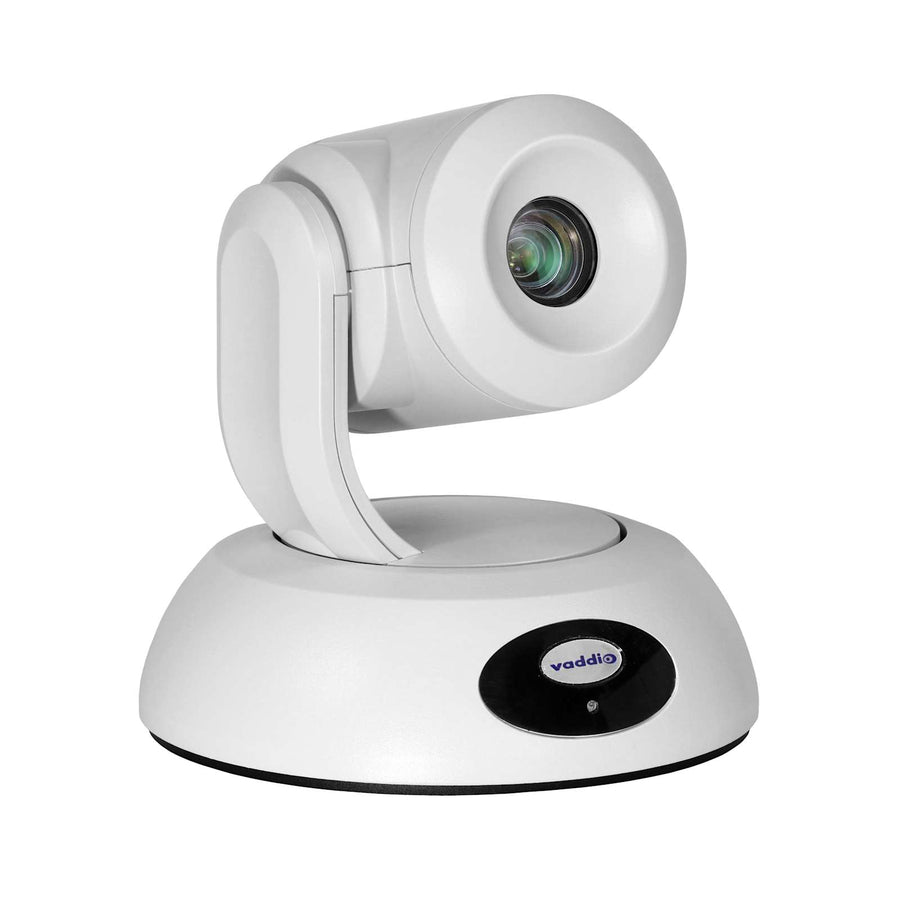

White PTZ camera with 12x optical zoom and simultaneous 3G-SDI, HDMI, and IP H.264 streaming outputs

The Vaddio RoboSHOT 12E SDI in white is a professional A/V presentation camera engineered for small to medium rooms. This camera is ideal for conference rooms, training rooms, and classrooms that require a wide angle of view to capture all participants. It features a 1/2.5-type Exmor R CMOS sensor that delivers high-definition 1080p at 60 fps. The advanced image signal processing (ISP) enhances light-gathering capabilities, providing sharp video and improved contrast even in dim lighting conditions. A key advantage for system integrators is the ability to perform simultaneous 3G-SDI, HDMI, and IP (H.264) streaming, ensuring multiple destinations receive a signal without complex distribution hardware. The camera's Tri-Sync Motion technology allows for ultra-smooth, natural movement by coordinating all three axes of motion simultaneously. For remote management, the built-in web-based user interface allows administrators to control the camera from anywhere on the IP network via a standard web browser. This TAA-compliant unit includes a PoE+ Midspan Power Injector and a thin profile wall mount to facilitate streamlined installation in professional environments.

Specifications are supplied by the manufacturer. For complete details, check the Resources section.

Key features

·12x optical zoom for precise framing in small to medium spaces·Simultaneous 3G-SDI, HDMI, and IP H.264 streaming outputs·1/2.5-type Exmor R CMOS sensor for high-definition 1080p/60 video quality·Tri-Sync Motion technology for smooth, simultaneous three-axis movement·Remote IP management via a built-in web-based user interface·TAA compliant and CE, FCC certified for professional deployment

Specifications

43 fields
Main specifications 8
Depth6.75 in (17.1 cm)
Height6.94 in (17.6 cm)
Operating Temperature32° to 104°F (0° to 40°C)
Product Weight4.85 lbs (2.2 kg)
Shipping Weight13 lbs (5.9 kg)
Width7.05 in (17.9 cm)
3rd Party ControlRS232Telnet
Browser-based User Interface for Remote ControlBuilt-in
All other specifications 35
Camera TypePTZ
ColorWhite
Compatible WithVaddio
Control MethodIR RemoteJoystickRS232TelnetWeb UI
Estimated Room SizeMedium RoomSmall Room
Field of View70.2° Wide End to 6.8° Tele End
Field of View WideGreater than 70
Focus SystemAutoManual
GainAutoManual
Image Sensor Type1/2.5-type Exmor R CMOS sensor
InvertibleYes
ManufacturerVaddio
Max Resolution1080p 60
Minimum Illumination1 Lux (F1.6)
OneLINK CompatibilityNo
Output Ports3G SDIHDMIIP Streaming
Pan and Tilt RangePan: ±150°Tilt: +90° to -30°
Pan and Tilt Speed0.35°/sec - 120°/sec
Pixels8.51 Megapixel
Power CordUS Cord
Power SupplyPoE+ Midspan Power Injector
Power TypePoE+
Preset Positions16 Custom Home Position
PTZ MotorsSilent BLDC Direct Drive Motors
Quick-Connect CompatibilityNo
Signal Type3G SDIHDMIIP Streaming
Solution TypeCamera Only
Special FeaturesVaddio Special Offer
TAA CompliantYes
Tri-Sync MotionYes
UPC840077503321
White BalanceAutoManualOne Push
Zoom12x
CertificationsCEFCCTAA
Warranty3 years

Questions about this part

What video outputs are available on the RoboSHOT 12E SDI?

The camera provides simultaneous outputs via 3G-SDI, HDMI, and IP (H.264) streaming for versatile signal distribution.

How do I control the RoboSHOT 12E SDI remotely?

You can manage the camera via a built-in web-based user interface over an IP network, or use RS232, Telnet, or an IR remote.

What is required to power this camera?

This SKU is powered via PoE+, and the package includes a PoE+ Midspan Power Injector for installation.

Will this camera work for live streaming to social media?

Yes, it supports IP streaming in RTSP or RTMP formats with H.264 compression, making it compatible with platforms like YouTube and Facebook.

What is the difference between this and the RoboSHOT 30E SDI?

While both are part of the RoboSHOT Elite Series, the 999-99300-000W is a 12x zoom variant, whereas the 30E provides different optical capabilities.
