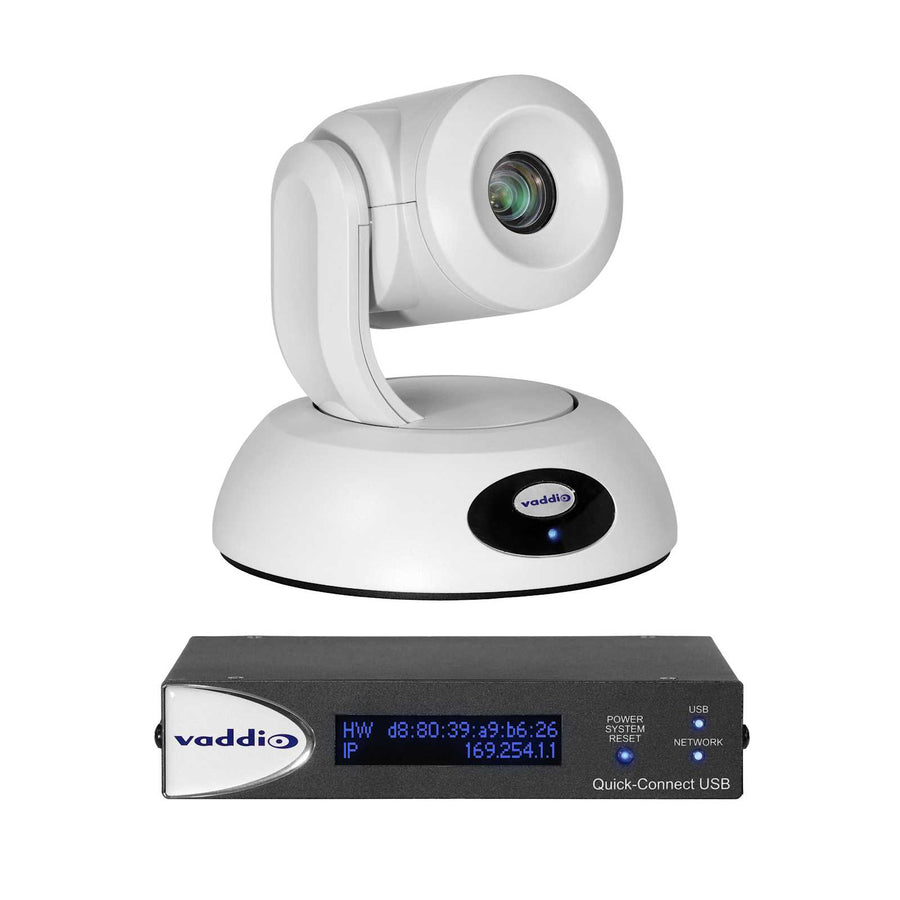

RoboSHOT 12E QUSB System
White PTZ camera system for small to medium rooms, featuring 12x optical zoom and 1080p/60 HD video quality
The Vaddio RoboSHOT 12E QUSB System 999-99090-000W is a professional-grade PTZ camera solution designed for small to medium rooms such as classrooms, training rooms, and conference spaces. This white-finish system utilizes the RoboSHOT Elite Series technology, incorporating a 1/2.5-type Exmor R CMOS sensor to deliver sharp 1080p at 60 fps video. It features a 70.2° wide field of view and 12x optical zoom to capture detail from a distance. The system's Tri-Synchronous Motion technology ensures ultra-smooth camera movement by coordinating all three axes simultaneously. Deployment is streamlined via the Quick-Connect™ USB Interface, allowing power, control, and video to be delivered over two Cat-5 cables up to 100' (30.5 m). The QUSB interface provides multiple output options, including USB 2.0 (UVC) streaming, HDMI, and HD analog component (YPbPr). For remote management, the camera features a built-in web-based user interface for IP network control, alongside standard RS232 and Telnet support.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 150 in (381 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 26" x 15" x 19" (660.4 x 381 x 482.6 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 38
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HD YPbPrHDMIUSB 2.0 |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 2.0A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | QUSB |
| Signal Type | HD YPbPrHDMIUSB 2.0 |
| Solution Type | Camera with Extension |
| Special Features | With Quick-Connect Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077502812 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
RoboSHOT 30E QUSB System
999-99190-000$7,569.00
24 Volt Power Supply (2.08 Amp)
451-2000-024$78.30
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
RoboSHOT 12E QCCU System
999-99070-000$6,809.40
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
RoboSHOT 12E QDVI System
999-99060-000$6,404.40
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Questions about this part
Will the RoboSHOT 12E QUSB System work in my conference room?
This system is specifically recommended for small to medium spaces like training rooms and classrooms that require a wide field of view.
What video outputs are provided by the QUSB interface?
The Quick-Connect USB interface supports USB 2.0 (UVC) streaming, HDMI, and HD analog component (YPbPr) video outputs.
How far can I run the cabling for the RoboSHOT 12E?
You can deliver power, video, and control over two Cat-5 cables for a total distance of up to 100' (30.5 m).
What tools and accessories are needed for installation?
This system includes a thin profile wall mount and a Vaddio IR Remote Commander. It is compatible with various mounts such as the 535-2000-246 Thin Profile Wall Mount Tall.
Can I control the camera remotely over a network?
Yes, the camera features a built-in web-based user interface for remote management over an IP network, and it supports RS232 and Telnet control.
