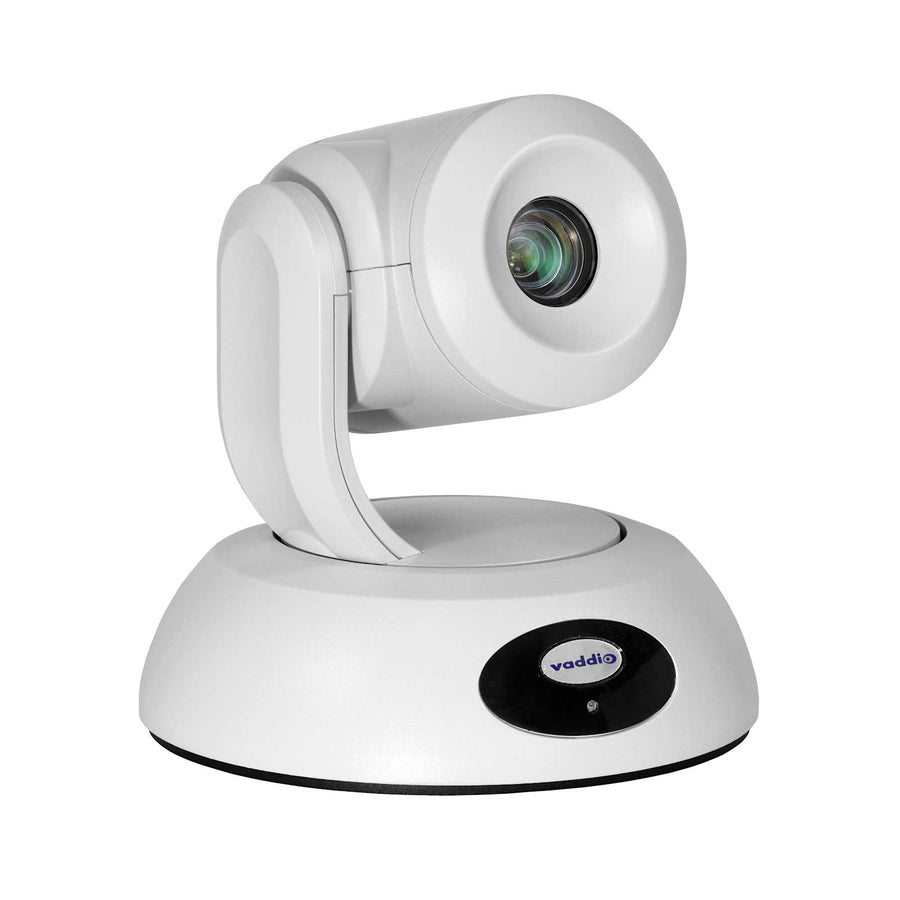

RoboSHOT 12E NDI
White PTZ camera with simultaneous HDMI and native NDI streaming, 12x zoom, and 1080p/60 resolution for medium to small rooms
The Vaddio RoboSHOT 12E NDI (999-99407-000W) is a professional A/V presentation camera designed to deliver simultaneous HDMI and native NewTek NDI® streaming. Engineered for broadcast applications, classrooms, and conference rooms, this camera provides one of the lowest signal latencies in the industry. The integrated 1/2.5-type Exmor R CMOS sensor and advanced image signal processing ensure high-definition 1080p/60 video quality, even in dim lighting conditions with a minimum illumination of 1 Lux (F1.6). This camera is ideal for small to medium rooms requiring a wide field of view, ranging from 70.2° at the wide end to 6.8° at the tele end. It features 12x optical zoom and Silent BLDC Direct Drive Motors for smooth, quiet operation. Using Vaddio's Tri-Synchronous Motion technology, the camera achieves ultra-smooth, natural motion across all three axes. Control is highly versatile, supporting IR Remote, Joystick, NDI, RS232, Telnet, and a built-in web UI. For deployment, this unit is TAA compliant and powered via PoE+ (requires a PoE+ Midspan Power Injector, included in this package).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 35
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickNDIRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMINDI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMINDIRS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077506087 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Device Controller
999-42300-000$855.00
Thin Profile Wall Mount Tall
535-2000-246$177.30
Thin Profile Wall Mount Long
535-2000-245$177.30
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
Will the RoboSHOT 12E NDI fit my specific display setup?
This camera is designed for small to medium rooms. It features a 70.2° wide field of view and 12x zoom to provide optimal coverage for various viewing distances.
What is included in the package with the 999-99407-000W?
This package includes the camera, a PoE+ Midspan Power Injector, a thin profile white wall mount with hardware, a quick-start card, and a Vaddio IR Remote Commander.
What additional accessories do I need for installation?
Depending on your mounting requirements, you may need a suspended ceiling mount (535-2000-206), a DomeVIEW HD indoor pendant enclosure (998-9100-200), or an in-wall enclosure (999-2225-118).
How can I control the camera remotely?
You can control the camera via NDI, a built-in Web UI, RS232, Telnet, an IR remote, or a joystick. It also supports Tri-Sync motion for smooth movement across all axes.
Which technical documents are available for submittals?
Technical documentation includes the RoboSHOT 12E/30E NDI PTZ Camera Data Sheet, CAD drawings in DWG and PDF formats, and the complete Operation Manual.
