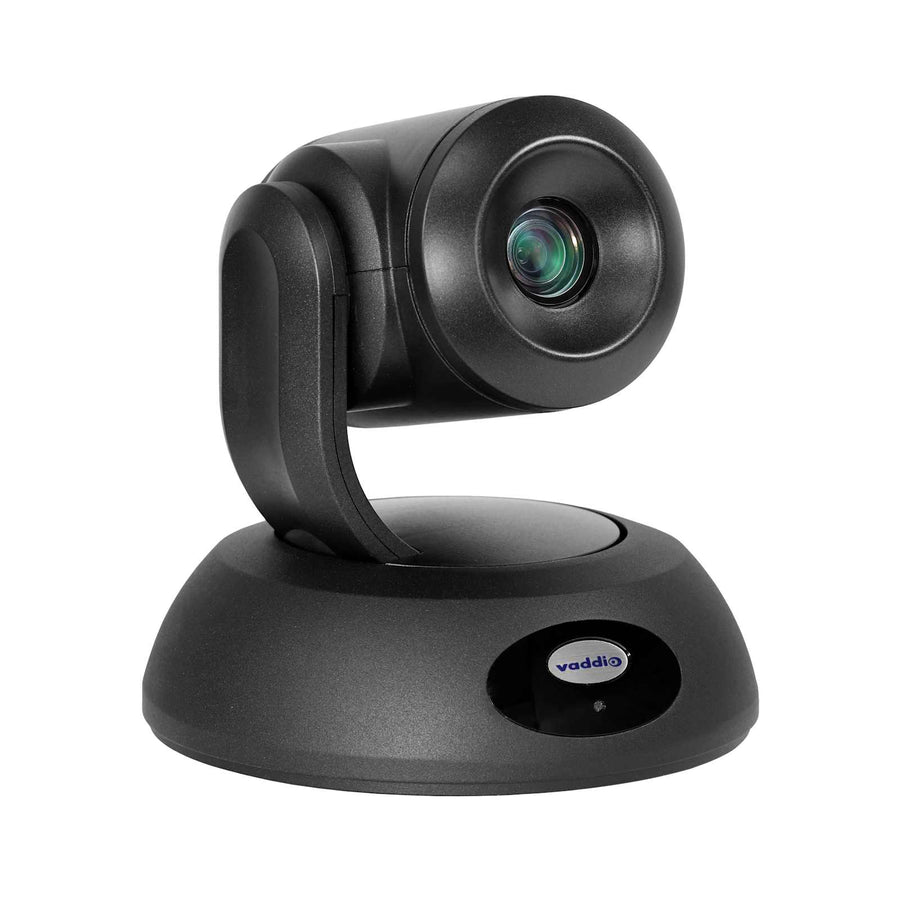

RoboSHOT 12E NDI
NDI PTZ camera providing simultaneous HDMI and native NewTek NDI streaming with 12x optical zoom
The Vaddio RoboSHOT 12E NDI is a professional PTZ camera designed for high-performance broadcast, classroom, and conference room environments. This Elite Series unit provides simultaneous HDMI and native NewTek NDI® streaming, delivering some of the lowest signal latencies in the industry for live switching and streaming. Equipped with a 1/2.5-type Exmor R CMOS sensor, the camera produces high-definition 1080p/60 video with exceptional contrast and light-gathering capabilities, even in dim lighting conditions with a minimum illumination of 1 Lux (F1.6). The RoboSHOT 12E NDI features a 12x optical zoom and a wide field of view ranging from 70.2° at the wide end to 6.8° at the tele end. Movement is handled by silent BLDC direct drive motors using Vaddio’s Tri-Sync Motion technology, which enables simultaneous three-axis movement for fluid, natural motion. The camera is ideal for small to medium rooms and offers versatile control via NDI, RS232, Telnet, IR remote, joystick, or a built-in web UI. For deployment, the camera supports PoE+ via a midspan power injector and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 35
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickNDIRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMINDI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMINDIRS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077506070 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30

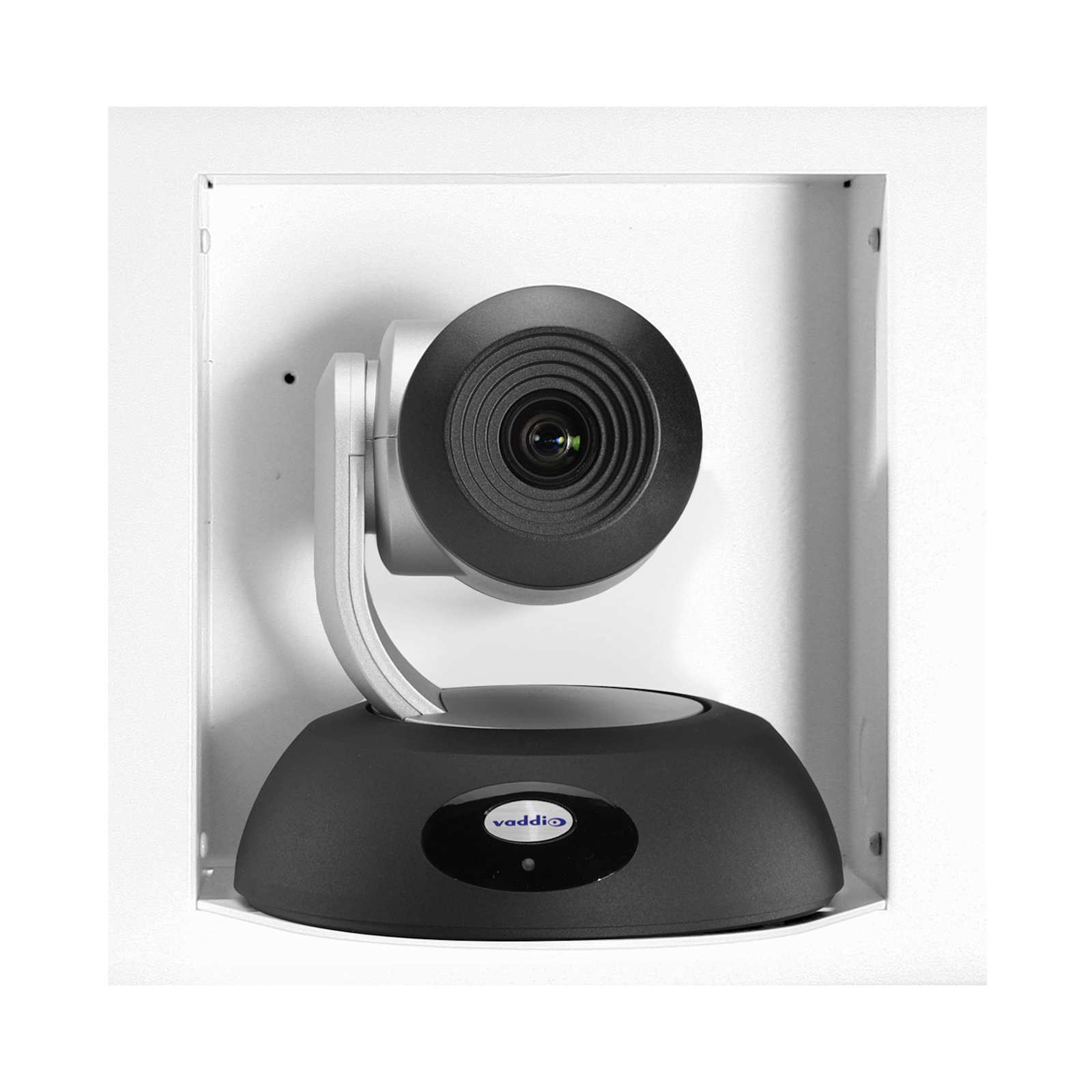

IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Device Controller
999-42300-000$855.00

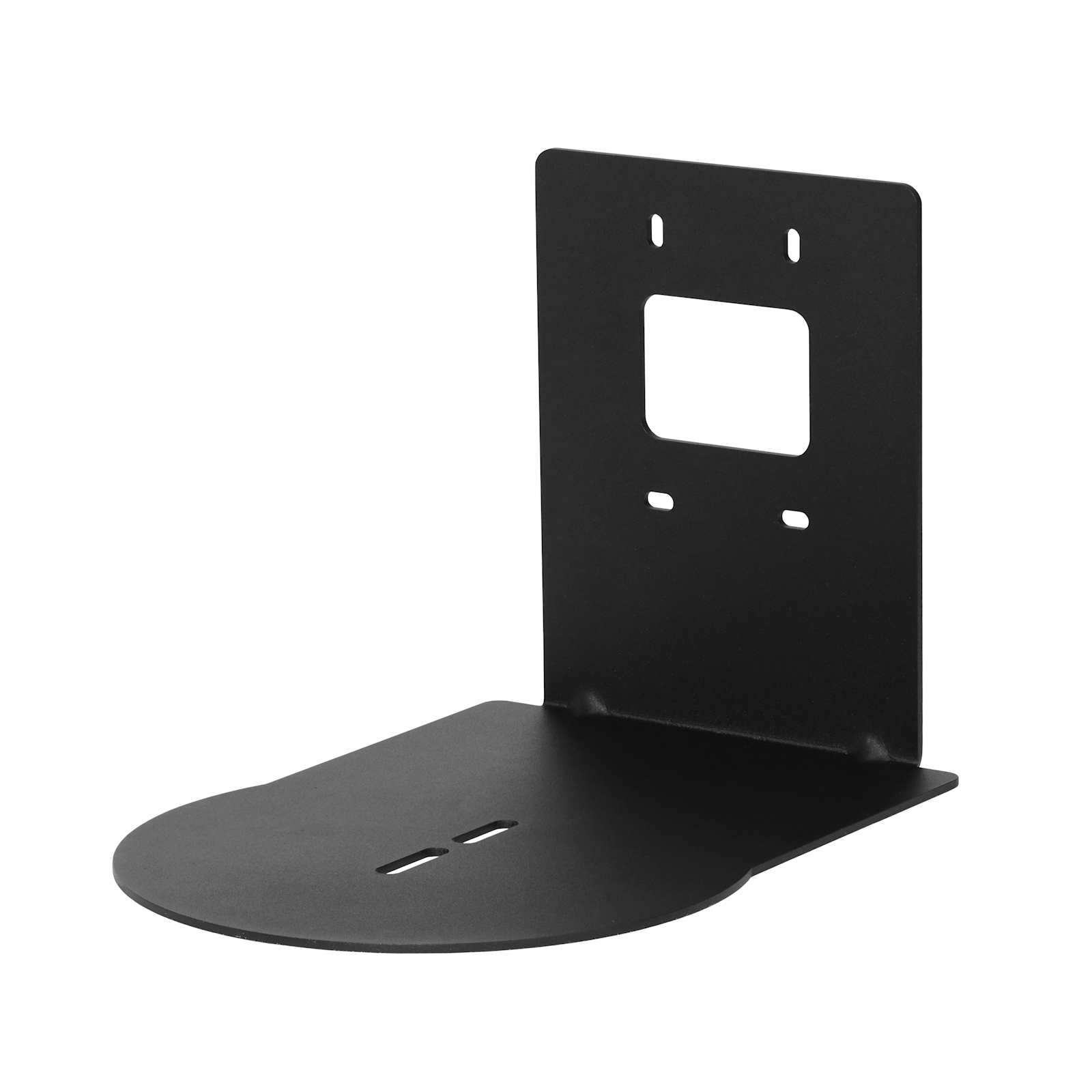

Thin Profile Wall Mount Tall
535-2000-246$177.30

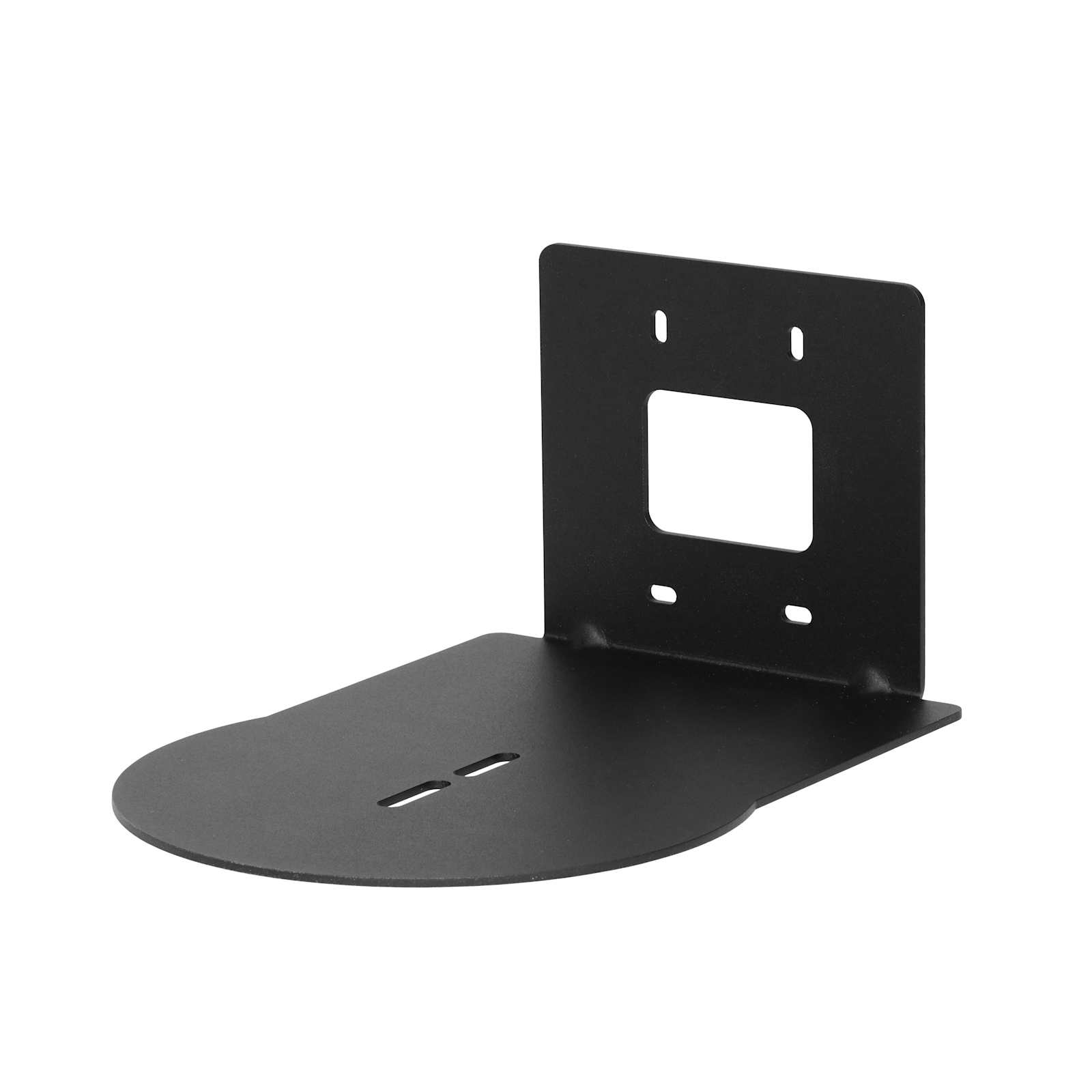

Thin Profile Wall Mount Long
535-2000-245$177.30

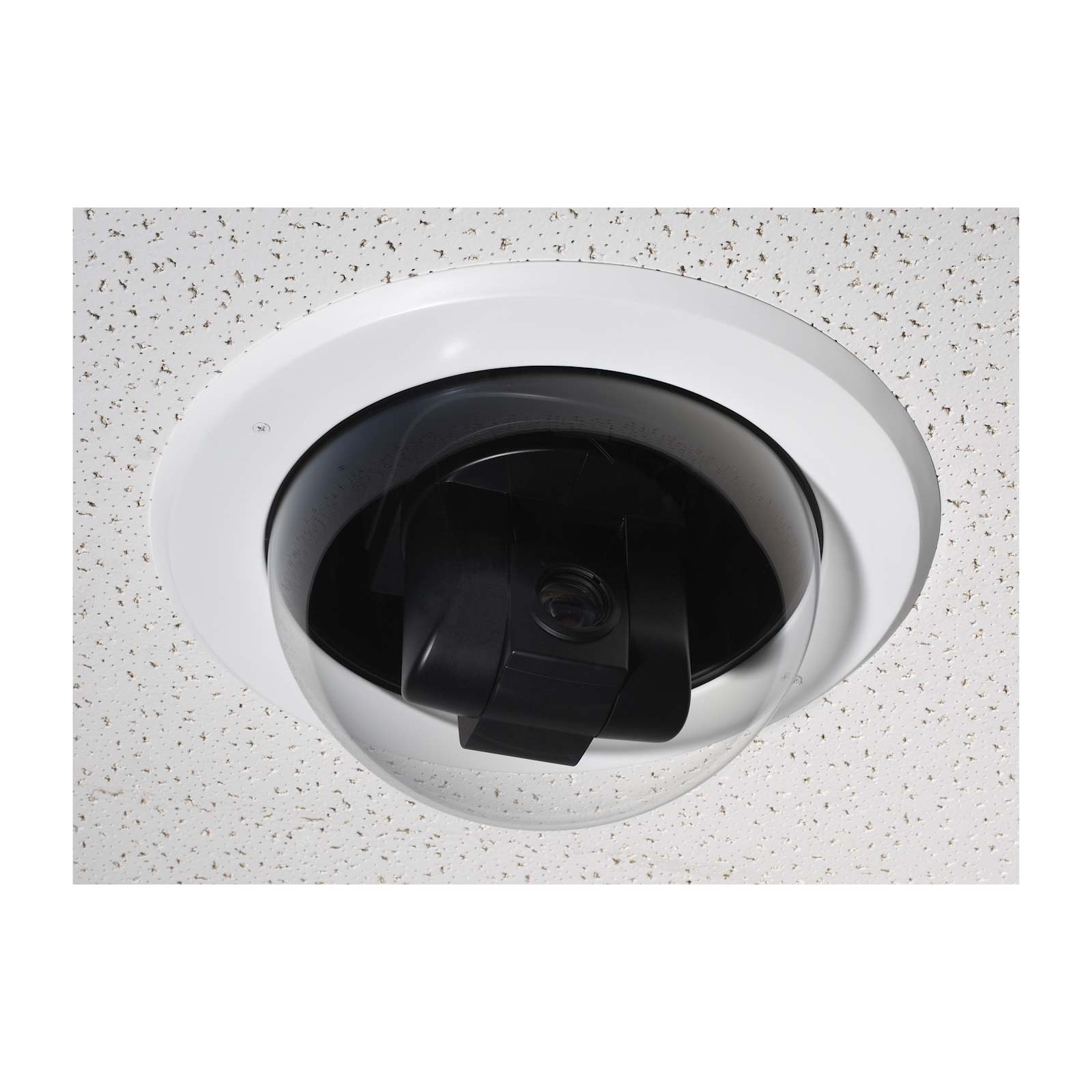

DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60

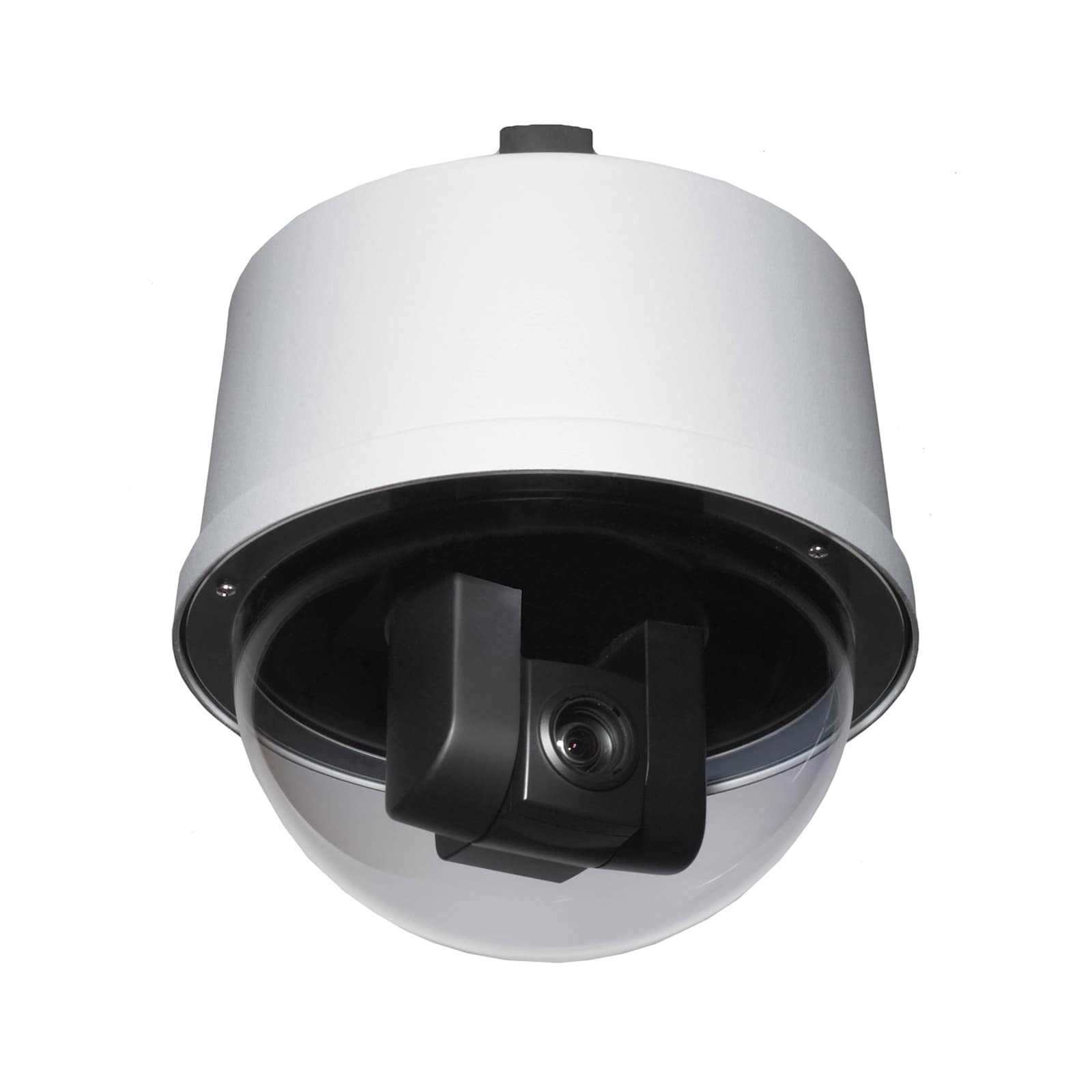

DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60

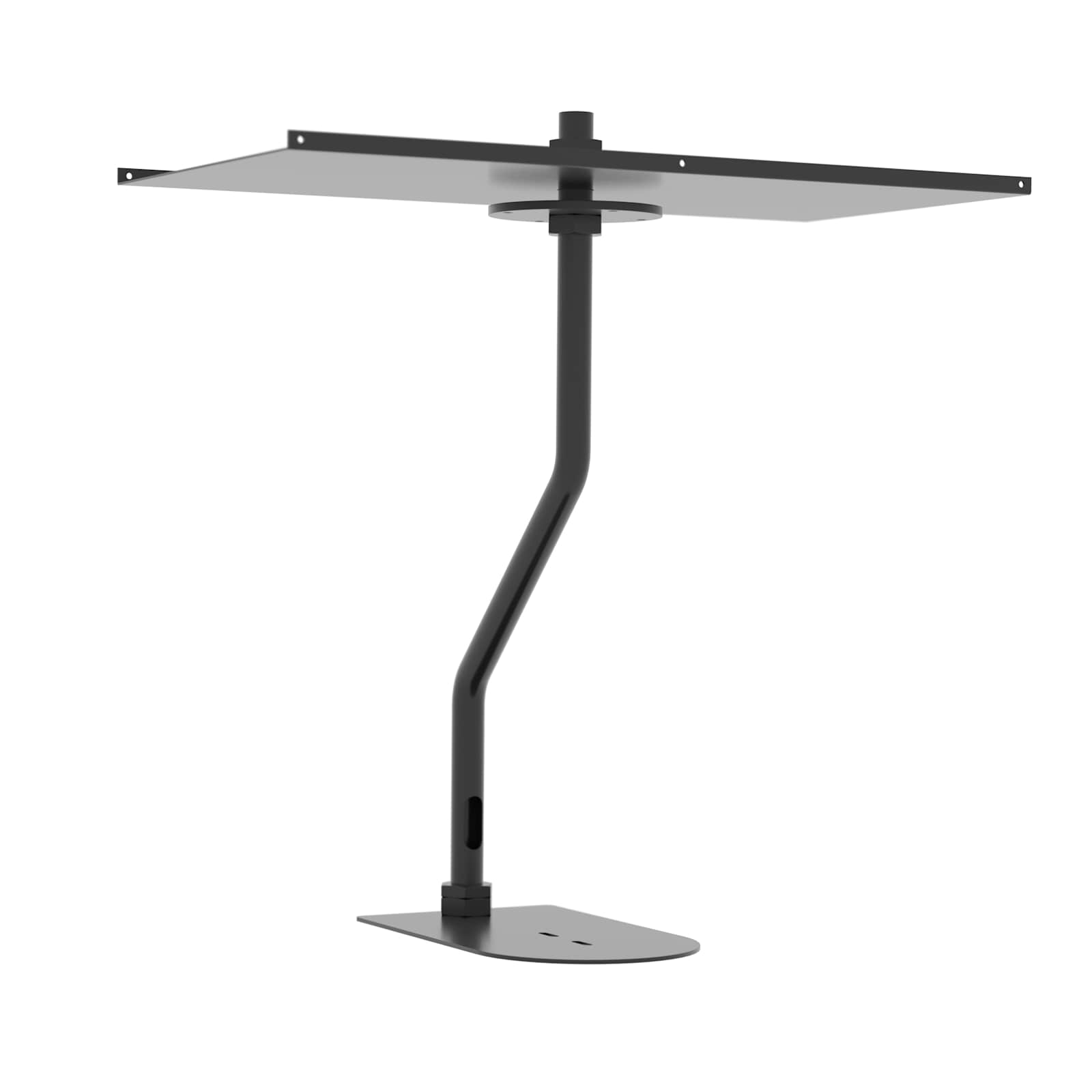

Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
Will the RoboSHOT 12E NDI fit my classroom or conference room setup?
This camera is specifically recommended for small to medium rooms, offering a 70.2° wide field of view and 12x optical zoom to cover the space.
What video outputs are available on the 999-99407-000?
The unit provides simultaneous HDMI and native NDI® streaming, allowing you to send video to a display and a network stream at the same time.
What is required to power the RoboSHOT 12E NDI?
The camera is powered via PoE+ and includes a PoE+ midspan power injector in the package.
Can I control this camera over the network?
Yes, it features a built-in web UI for remote control and supports NDI, RS232, and Telnet for seamless network integration.
What mounting options are available for this PTZ camera?
While a thin profile wall mount is included in the package, you can also use suspended ceiling mounts (535-2000-206) or flush dome enclosures (998-9000-200).
