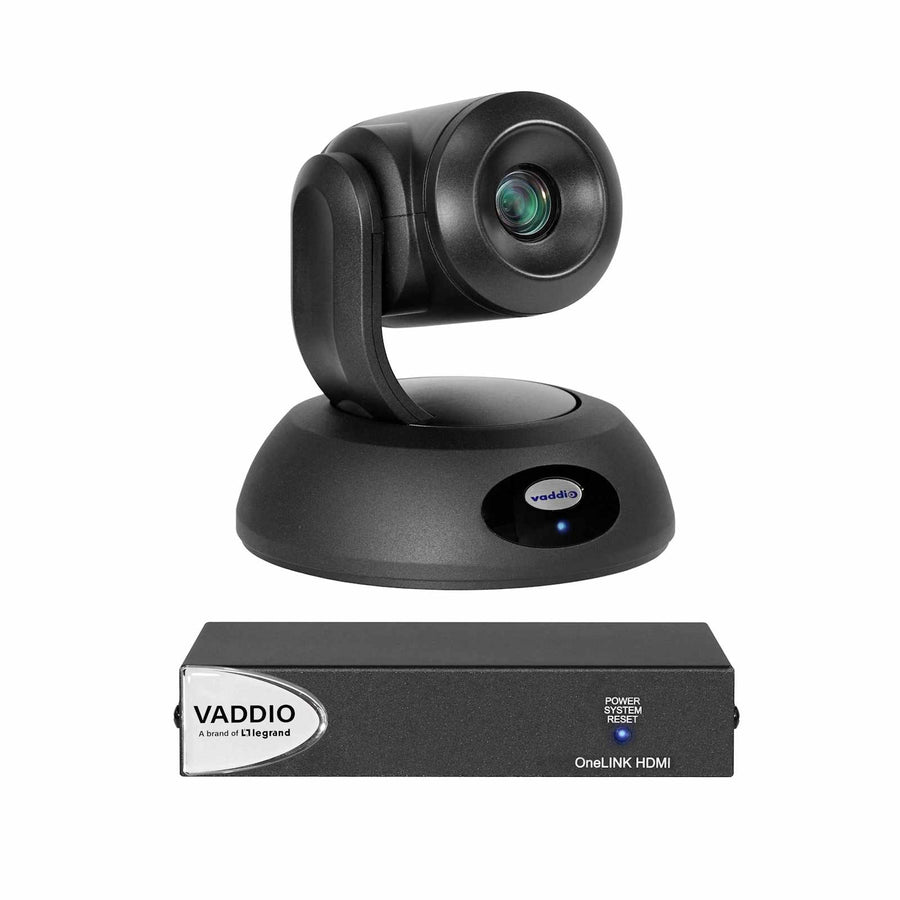

RoboSHOT 12E HDBT OneLINK HDMI System
PTZ camera with 12x optical zoom, featuring OneLINK HDMI for power, video, and control over a single cable up to 328 ft
The RoboSHOT 12E HDBT OneLINK HDMI System (999-99600-100) provides a professional video solution for small to medium rooms, including conference, training, and classrooms. This system utilizes Vaddio's OneLINK HDMI extension technology, allowing you to run power, video, and control through a single Cat-6 cable for distances up to 328 ft (100 m). This setup eliminates cable clutter and simplifies installation in environments where remote camera placement is required. The camera features a 1/2.5-type Exmor R CMOS sensor and 8.51 Megapixel resolution, delivering high-definition 1080p/60 video. It utilizes silent BLDC direct drive motors to facilitate smooth, natural motion through Tri-Sync Motion technology. For remote management, the system supports IP streaming (RTSP/RTMP with H.264) and provides a built-in web-based user interface for control via a browser. Control is highly versatile, supporting IR remotes, joysticks, RS232, Telnet, touch screens, and IP. This TAA-compliant system is an ideal choice for high-quality video capture in environments with varied lighting, thanks to its wide dynamic range and 1 Lux (F1.6) minimum illumination capability.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Width | 7.05 in (17.9 cm) |
All other specifications 41
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension System | with OneLINK HDMI |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control Extension3G SDIAudio MixerHDMIUSB 3.0 |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDbTHDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | 12VDC3.0A |
| Power Type | OneLINK |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDbTHDMIIP Streaming |
| Solution Type | Camera with Extension |
| Special Features | With OneLINK Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077504120 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCHDBaseTTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
CG56784$18.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
48 Volt Power Supply (1.35 Amp)
440-1370-148$86.40
RoboSHOT 12E HDBT OneLINK Bridge System
999-99600-200$6,583.50
RoboSHOT 12E HDBT
999-99600-000$4,083.30
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
OneLINK HDMI Extension for Vaddio HDBaseT Cameras
999-1105-043$1,579.50
IN-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras
999-2225-150$1,075.50
Questions about this part
How far can I run the camera with the OneLINK HDMI system?
Using a Cat-6 cable, the OneLINK HDMI system can extend power, video, and control up to 328 ft (100 m). Using Cat-5e, the reach is up to 230 ft (70 m).
What is required to mount this camera in a ceiling or wall?
For professional installation, you may need accessories such as the 535-2000-240 Thin Profile Wall Mount or the 2225-118 In-Wall Enclosure. A suspended ceiling mount (535-2000-206) is also available.
Can I control the RoboSHOT 12E HDBT via a network?
Yes. The system features a built-in web-based user interface for remote control over an IP network and supports IP streaming in RTSP or RTMP formats.
What video formats and outputs are supported?
The camera supports HDbT, HDMI, and IP Streaming outputs, providing simultaneous high-definition video and H.264 compression for streaming.
What is the difference between this and the RoboSHOT 30E system?
This SKU (999-99600-100) is the 12E HDBT version, whereas the 999-99630-100 is the 30E HDBT variant.
