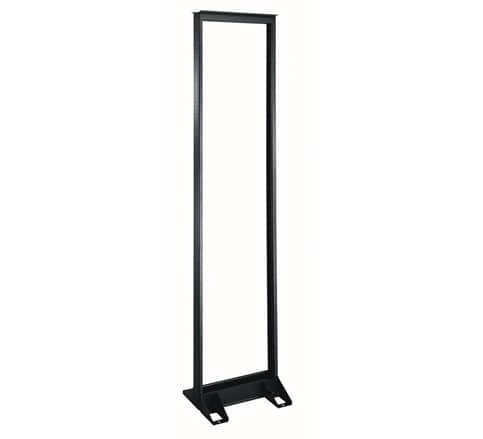

RL Series 2 Post Steel Open Frame Rack - RL10-38
38 RU 2-post steel open frame rack with 10-32 threaded rails and 1600 lbs total weight capacity
The Middle Atlantic RL10-38 is a 38 RU 2-post steel open frame rack designed for efficient equipment organization. Constructed from heavy-duty 11-gauge steel, these channels provide significant strength for high-density AV environments. This series features a self-aligning, self-squaring, and self-leveling design, which facilitates much faster assembly on-site. The top rails are engineered to accommodate standard cable ladders for streamlined wire management. This specific model features 10-32 threaded rails and numbered spaces to simplify component installation. To ensure a complete setup, please note that the PB-5A power bracket is required if you intend to mount vertical power strips within this rack. This TAA compliant and UL listed rack ships flat to maximize transport efficiency and reduce storage footprints during transit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.25 in (38.7 cm) |
| Height | 72.37 in (183.8 cm) |
| Rack Units | 38 RU |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 3 in (7.6 cm) |
| Usable Height | 66.5 in (168.9 cm) |
| Weight Capacity | 1600 lbs (725.7 kg) |
| Width | 19.62 in (49.8 cm) |
All other specifications 6
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747014369 |
| Certifications | TAAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
2 RU Utility Rackshelf, 14.55 Inches Deep
U2$95.40
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Hinged Horizontal Cable Manager
HHCM-2$94.50
Multi-Mount PDU, 18 Outlet, 15A & 2-Stage Surge
PD-1815R-RN$387.00

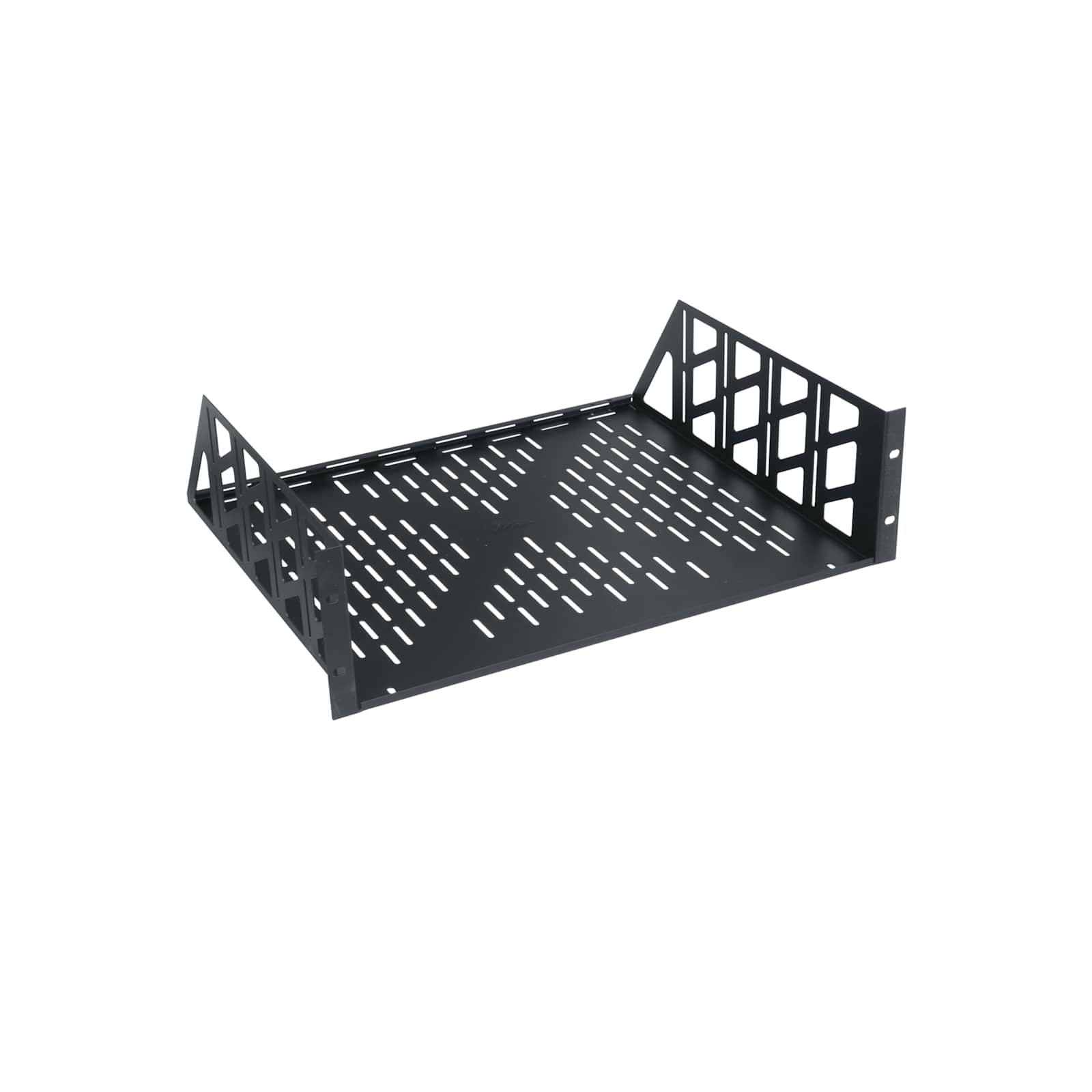

3 RU Utility Rackshelf, 15.4 Inches Deep, Vented
