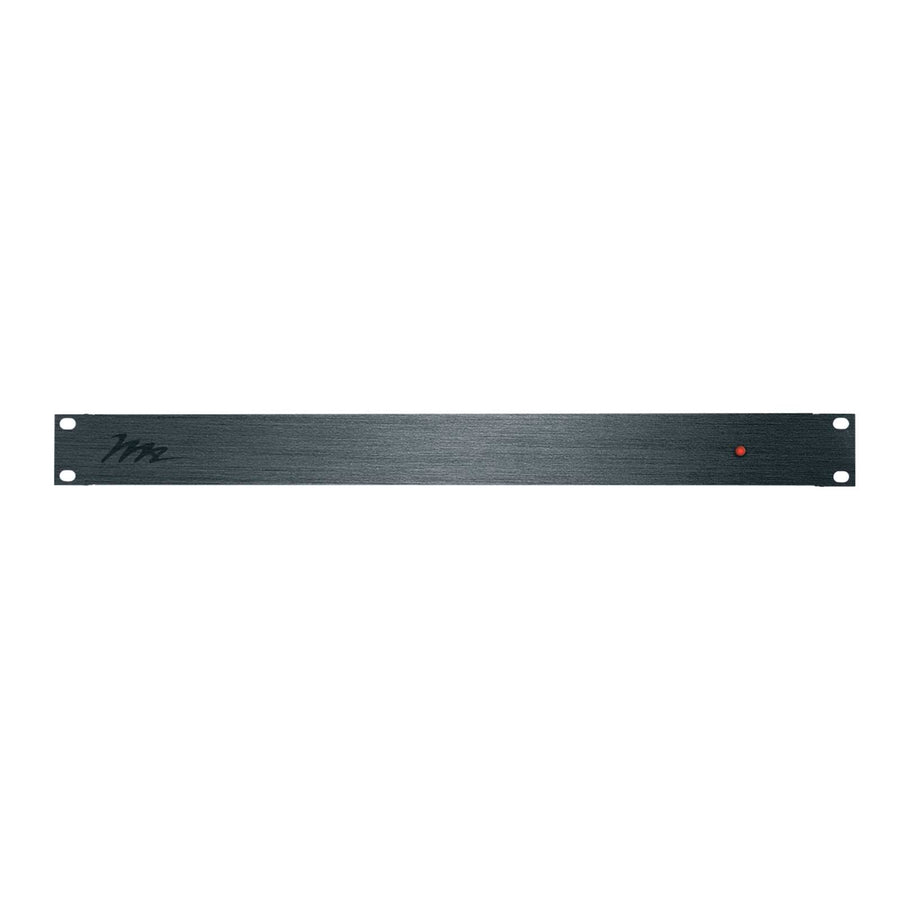

Rackmount Power, 8 Outlet, 15A, Basic Surge Protection - Anodized
1RU rackmount power strip with 8 outlets, 15A capacity, and basic surge protection in a brushed and anodized finish
The PD-815RA-PL provides essential power distribution for professional AV racks, occupying 1RU of vertical space. This 15 Amp, 120 VAC unit features 8 rear distribution outlets and a front-facing status pilot light to allow for quick power verification. Beyond simple power distribution, this strip includes basic surge and spike protection along with EMI filtering to help protect sensitive electronic equipment from electrical interference. The unit is designed with a corded 9 ft (2.7 m) power cable ending in a standard 5-15P plug. For installation, the chassis features 2 mounting points and a 1.75 in (4.4 cm) height with a 9.2 in (23.4 cm) depth. This anodized finish version is part of the PD series of rackmount power strips, which also offers options in a flat black powder coat and different outlet counts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.2 in (23.4 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 9 lbs (4.1 kg) |
| Volts AC | 120 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 11
| Cable Type | Corded |
| Finish | Brushed and Anodized |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Power Switch | No |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747056383 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PD-815RA-PL fit in a standard 19-inch rack?
Yes, this unit is designed for standard 19 in (48.3 cm) wide rack installations and occupies 1RU of vertical space.
What electrical protections does the PD-815RA-PL provide?
The PD-815RA-PL includes basic surge and spike protection along with EMI filtering to help protect your equipment.
Does this power strip have a power switch?
No, the PD-815RA-PL does not include a power switch, but it does feature a front status pilot light for power verification.
What is the difference between this and the PD series black models?
While this SKU features a brushed and anodized finish, other models in the PD series offer a flat black powder coat.
Which document should I use for a submittal?
You can use the PD Series Rackmount Power Strips A&E Specification Sheet for technical submittals.
