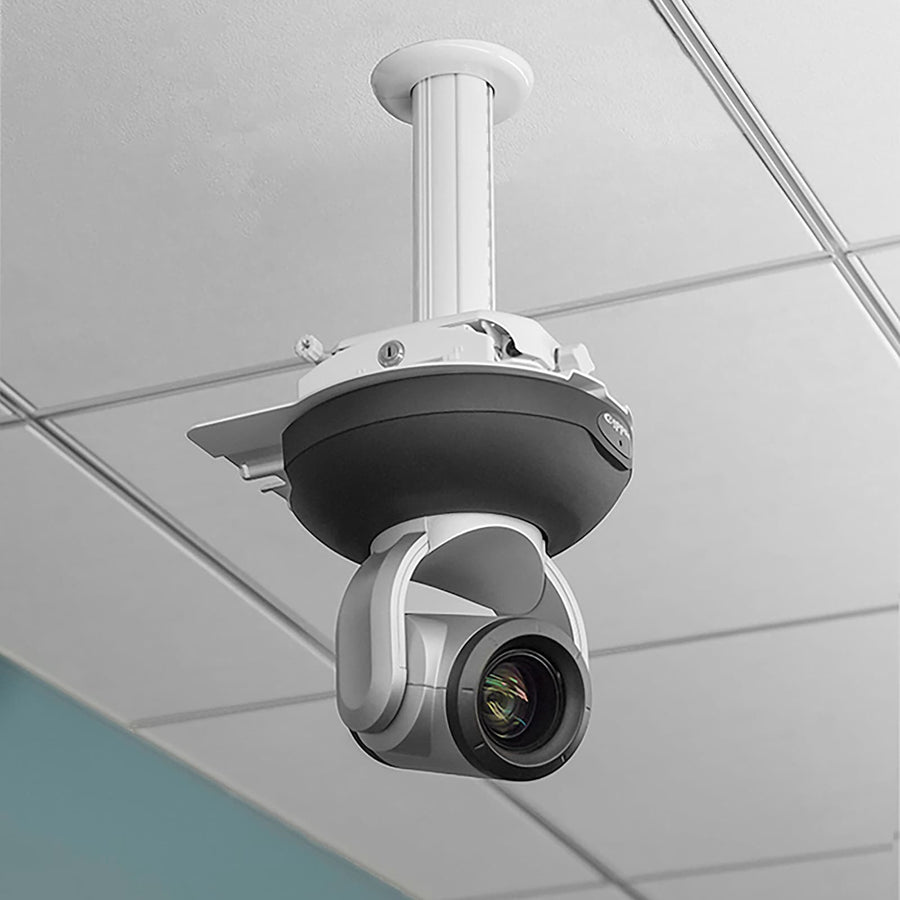

QuickCAT Mount with OneLINK HDMI for Cisco Precision 60/HD
Ceiling mount with OneLINK HDMI for Cisco Precision 60/HD, extending video, power, and control up to 328 ft over Cat-5e/6
The 999-82120-000 QuickCAT Mount with OneLINK HDMI is a comprehensive ceiling mounting solution designed specifically for the Cisco Precision 60 and HD cameras. This system integrates a Vaddio OneLINK HDMI extension, allowing installers to transmit power, video, and control signals over a single Cat-5e or Cat-6 cable for distances up to 328 ft (100 m). The universal ceiling mount is engineered for suspended ceilings, offering compatibility with 2x2', 2x4', 60 x 60 cm, and 62.5 x 62.5 cm grids, and it functions even in irregular grid layouts. For installation flexibility, the mount features an adjustable height range of 0 to 12" (0 to 305 mm), allowing for precise camera positioning. Security is addressed through an integrated key and lock system, while the Q-Lock Quick Release Lever enables rapid camera connection and disconnection. This white-finished assembly weighs 14 lbs (6.4 kg) and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 24.9 in (63.3 cm) |
| Height | 19.8 in (50.3 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 14 lbs (6.4 kg) |
| Shipping Dimensions | 30" x 9" x 11.25" (762 x 228.6 x 285.8 mm) |
| Shipping Weight | 21.5 lbs (9.8 kg) |
| Width | 7.25 in (18.4 cm) |
| Application | Ceiling |
All other specifications 9
| Color | White |
| Compatible With | Cisco |
| OneLINK Compatibility | No |
| Power Cord | US Cord |
| Quick-Connect Compatibility | No |
| TAA Compliant | Yes |
| UPC | 840077501624 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the 999-82120-000 work with my Cisco camera?
Yes, this package is specifically designed for Cisco Precision 60 and HD camera models.
What is the maximum cable run for the OneLINK HDMI system?
The OneLINK HDMI extension allows you to reach distances up to 328 ft (100 m) using either Cat-5e or Cat-6 cabling.
What kind of ceiling grid is this mount compatible with?
This mount is compatible with 2x2', 2x4', 60 x 60 cm, and 62.5 x 62.5 cm ceiling grids, including irregular layouts.
How much height adjustment does the mount provide?
The mount offers 0 to 12" (0 to 305 mm) of vertical height adjustment for precise camera placement.
What accessories are needed for remote camera control?
The Vaddio Device Controller (999-42300-000) is a compatible accessory for this system.
