PTRK Series Portable Rolling Rack - PTRK-2126MDK
21 RU portable rolling rack with 500 lbs capacity, keylocked front and rear doors, and a wood laminate top
The Middle Atlantic PTRK-2126MDK is a rugged, portable solution for high-demand environments where equipment mobility is required. This 21 RU series rack features a fully welded steel construction that supports a weight capacity of 500 lbs (226.8 kg). It is designed with spring-loaded recessed side handles to facilitate safe transport and includes heavy-duty commercial-grade locking casters for smooth movement. For security, the unit comes standard with both keylocked front and rear doors, including a plexi front door. The design incorporates vented side panels for passive thermal management and laser knockouts on the rear door to accommodate fans. The top features a graphite-marbled wood laminate, and the bottom includes slots for cable strain relief and equipment securing. The front-adjustable 10-32 threaded rackrails provide a usable height of 36.75" (93.3 cm) and a usable depth of 24.5" (62.2 cm). This TAA compliant rack is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26.93 in (68.4 cm) |
| Height | 46.95 in (119.3 cm) |
| Rack Units | 21 RU |
| Usable Depth | 24.5 in (62.2 cm) |
| Usable Height | 36.75 in (93.3 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 27.91 in (70.9 cm) |
| Federal Ops Country of Origin | USA |
All other specifications 6
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747071447 |
| Wood Laminate Top | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00
21 RU Rackrail 10-32 for PTRK Series
PTRK-RR21$88.20
1 RU Utility Rackshelf, 10.75 Inches Deep
U1$72.90
5 RU Sliding Rackshelf, 23 Inches Deep
SS5-23VTR$717.30

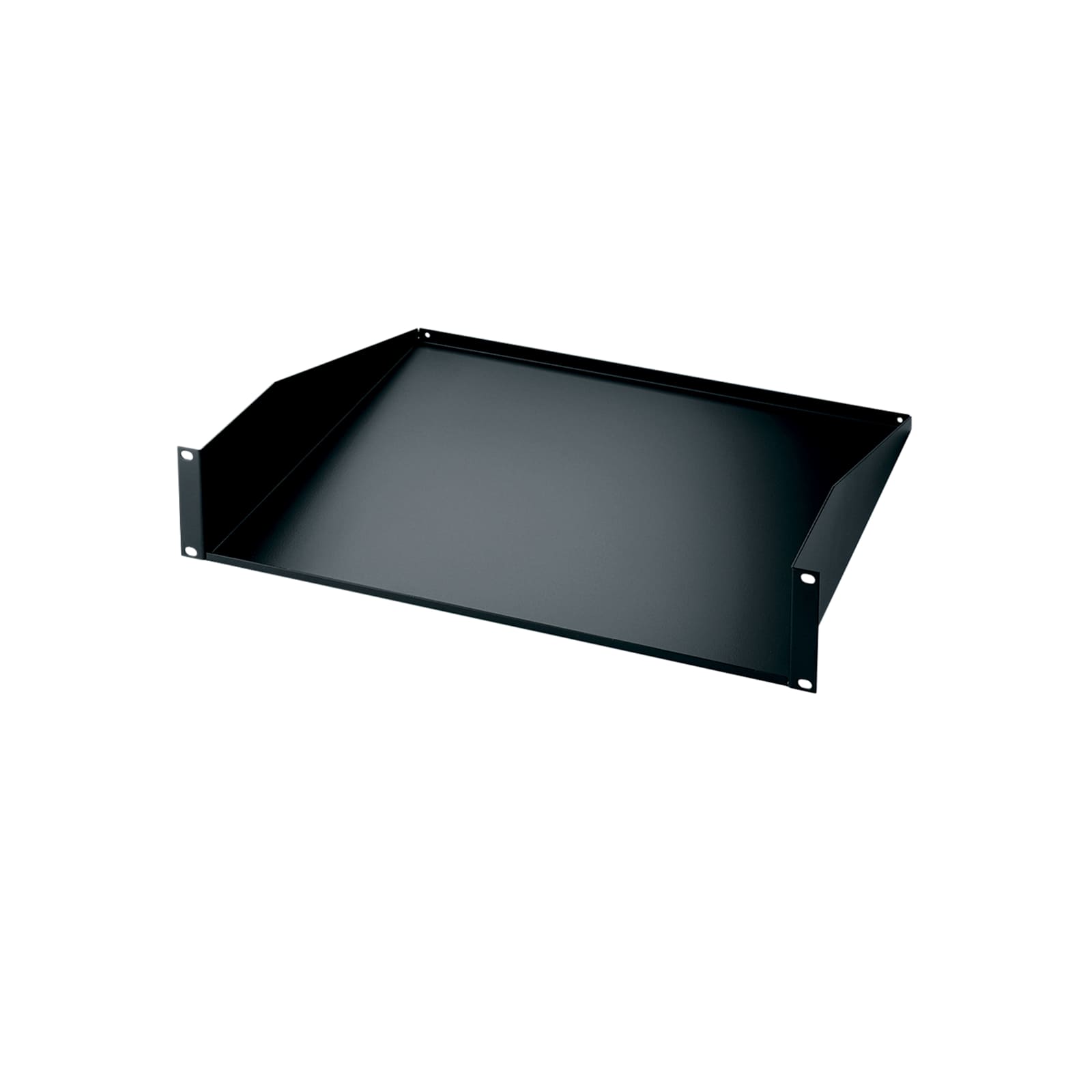

2 RU Utility Rackshelf, 14.75 Inches Deep - 50 Piece
U2MP$3,249.90

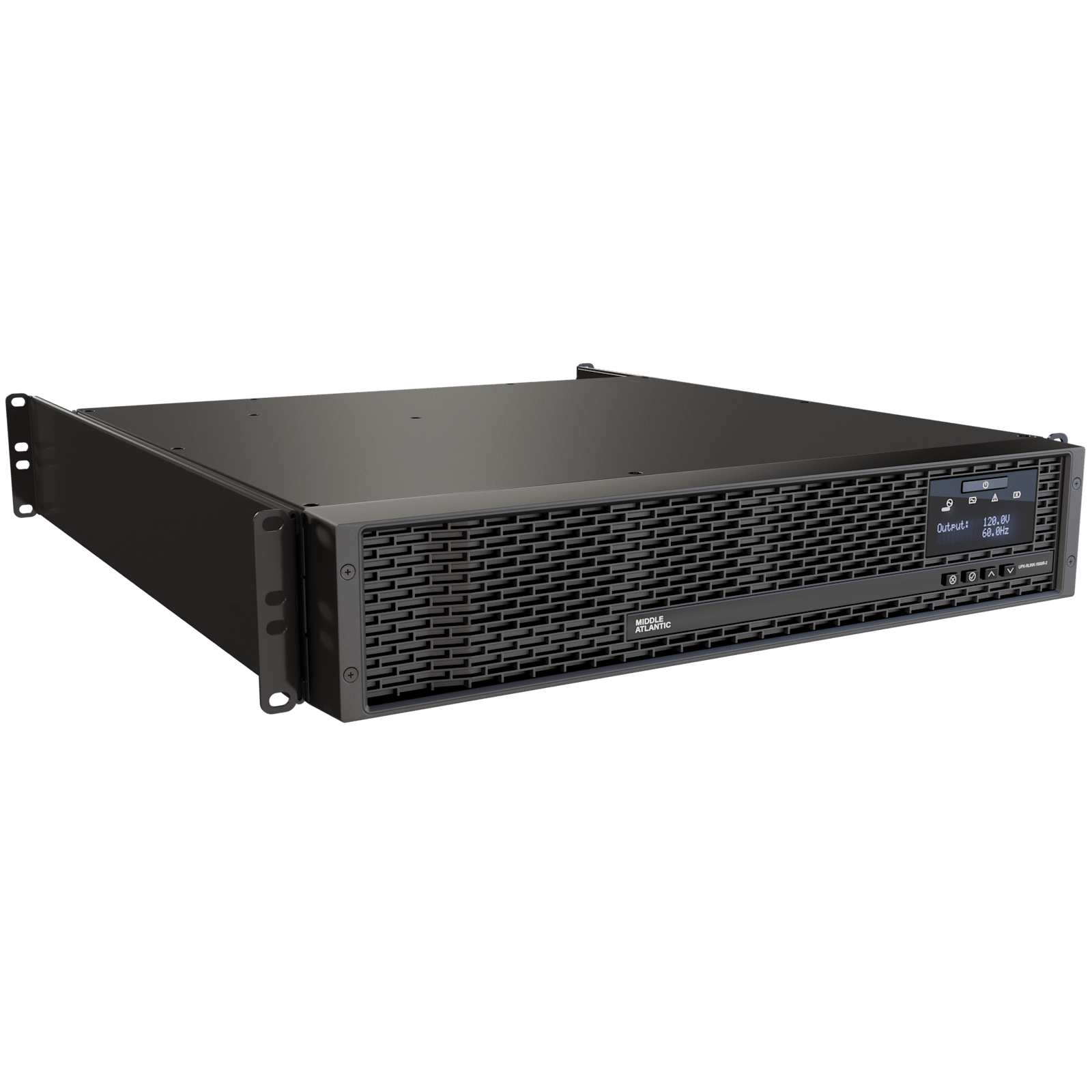

NEXSYS™ 1500VA, 15 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-1500R-2$3,079.80
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Questions about this part
Will the PTRK-2126MDK fit my equipment height and depth?
This rack provides a usable height of 36.75" (93.3 cm) and a usable depth of 24.5" (62.2 cm) to accommodate your 21 RU gear.
What is the maximum load this portable rack can hold?
The fully welded steel construction supports a total weight capacity of 500 lbs (226.8 kg).
Does this rack include security features for the equipment?
Yes, it comes standard with keylocked front and rear doors, including a plexi front door, to keep your gear secure during transport.
What accessories are compatible with this PTRK series rack?
You can install items such as the PD-915R Rackmount Power, Select Series PDU (RLNK-215), or various U1 and WUSS utility shelves.
Is this rack TAA compliant for government contracts?
Yes, the PTRK-2126MDK is TAA compliant and manufactured in the USA.
