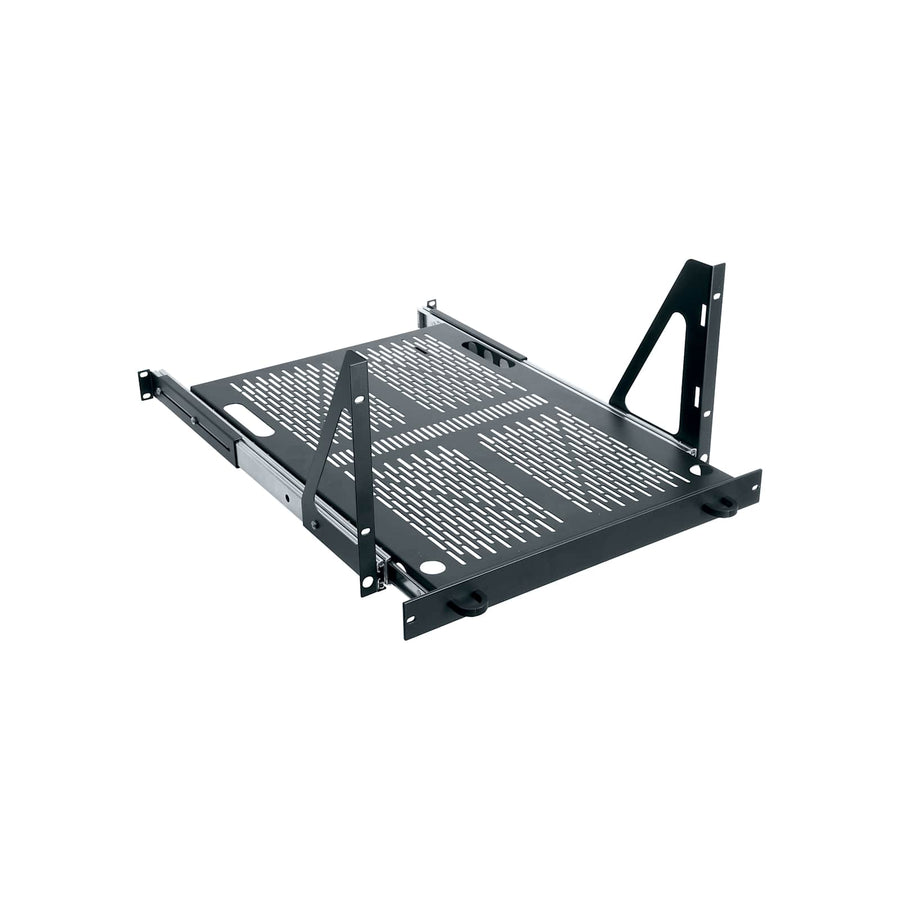

5 RU Sliding Rackshelf, 23 Inches Deep
5 RU heavy-duty full extension sliding shelf for VTR and CPU equipment, 75 lb capacity at full extension
The SS5-23VTR is a 5 RU heavy-duty sliding shelf designed specifically for VTR and CPU equipment in broadcast environments. This full extension, lockout shelf system facilitates maintenance and user access by providing secure, stable movement for sensitive hardware. Built with steel construction and a durable powder coat finish, it supports a 75 lb (34 kg) load capacity even at full extension. The shelf features pre-installed mounting ears to accelerate installation and offers adjustable 4-point mounting for deployment flexibility. It supports three mounting depth ranges, from 12-1/2" to 29-1/8". This 23 in (58.4 cm) deep unit can be customized with an optional lightweight, removable front cover panel, specifically the SS-VTR-CVR5, for improved aesthetics or protection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 23 in (58.4 cm) |
| Height | 10.46 in (26.6 cm) |
| Rack Units | 5 RU |
| Shipping Weight | 17.5 lbs (7.9 kg) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Mounting Points | 4 |
| UPC | 656747123788 |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
VTR/CPU Heavy-Duty Sliding Shelf Cover Panel for SS5-23VTR
SS-VTR-CVR5$90.90
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the SS5-23VTR work for my CPU or VTR equipment?
Yes, it is designed for VTR applications in broadcast environments and can accommodate any similar equipment requiring maintenance access.
What is the weight capacity of this 5 RU shelf?
The shelf supports a 75 lb (34 kg) load capacity when fully extended.
Can I add a cover to the SS5-23VTR?
You can add a lightweight, removable front cover panel, specifically the SS-VTR-CVR5, for this unit.
Does this shelf support different mounting depths?
Yes, it provides three mounting depth ranges between 12-1/2" and 29-1/8".
What other accessories are compatible with the SS5-23VTR?
This shelf is compatible with several cooling options, including the COMP-COOL50 Component Cooler and the COMP-COOL-3 3-piece set.
