PCC Mini
Precision joystick controller for up to 4 IP-controlled Vaddio cameras, featuring PoE+ power and HDMI output

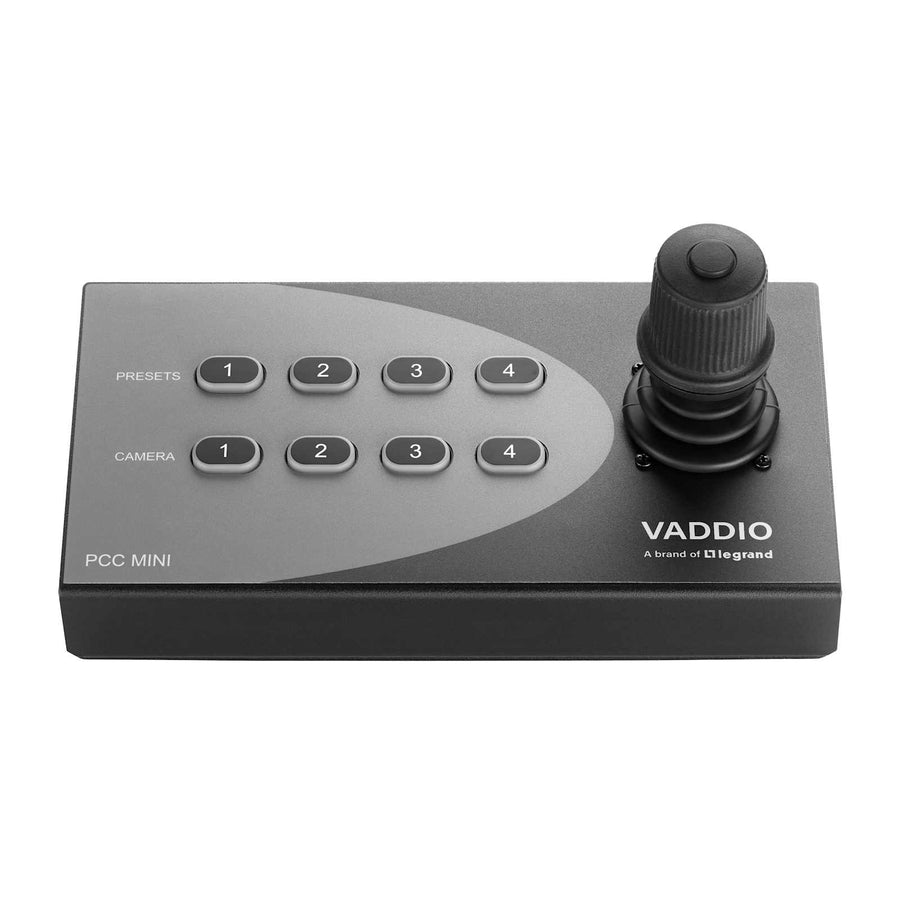

The Vaddio 999-57750-000 PCC Mini is a low-profile, ergonomic joystick designed to provide production-grade PTZ control in small studios or cost-sensitive environments. This controller utilizes a three-axis industrial-grade Hall effect joystick to allow for highly precise camera movements. It is capable of managing up to four compatible IP-controlled Vaddio cameras. For each camera, users can define a custom home position and program up to four specific preset positions, which are easily accessed via the four programmable preset buttons and a dedicated home button on the chassis. Construction features a weighted steel chassis with soft feet to ensure stability on a desktop surface. This unit is powered via PoE+ and can be connected to the same Ethernet switch as the cameras or via a PoE+ Mid-span power injector. A notable feature is the HDMI output, which allows for the display of a decoded IP stream from a selected camera, provided the stream is enabled on the camera itself. This controller is TAA compliant and is ideal for users requiring streamlined, professional control without a large footprint.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.75 in (12.1 cm) |
| Height | 5 in (12.7 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 18" x 11" x 5" (457.2 x 279.4 x 127 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Width | 9 in (22.9 cm) |
| 3rd Party Control | Built in |
| Color | Black |
All other specifications 11
| Control Method | without Vaddio Device Controller |
| Control Type | Camera ControllersJoysticks |
| Input Ports | Network |
| Output Ports | HDMI |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| TAA Compliant | Yes |
| UPC | 840077508326 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
How many Vaddio cameras can I control with the PCC Mini?
The PCC Mini can control up to 4 compatible IP-controlled Vaddio cameras.
Do I need a separate power supply for the PCC Mini?
The unit is PoE+ powered. It can run directly from an Ethernet switch or via a PoE+ Mid-span power injector.
Can I see a video feed from the camera on this controller?
Yes, the HDMI output can display a decoded IP stream from the selected camera if that stream is enabled on the camera.
What is the difference between the PCC Mini and the Vaddio Device Controller?
The PCC Mini is a compact, low-cost joystick, whereas the Vaddio Device Controller is an alternative option for expanded control features.
Which installation guide should I use for setup?
For installation and connection details, refer to the EasyIP PCC and PCC Mini Installation Guide.
