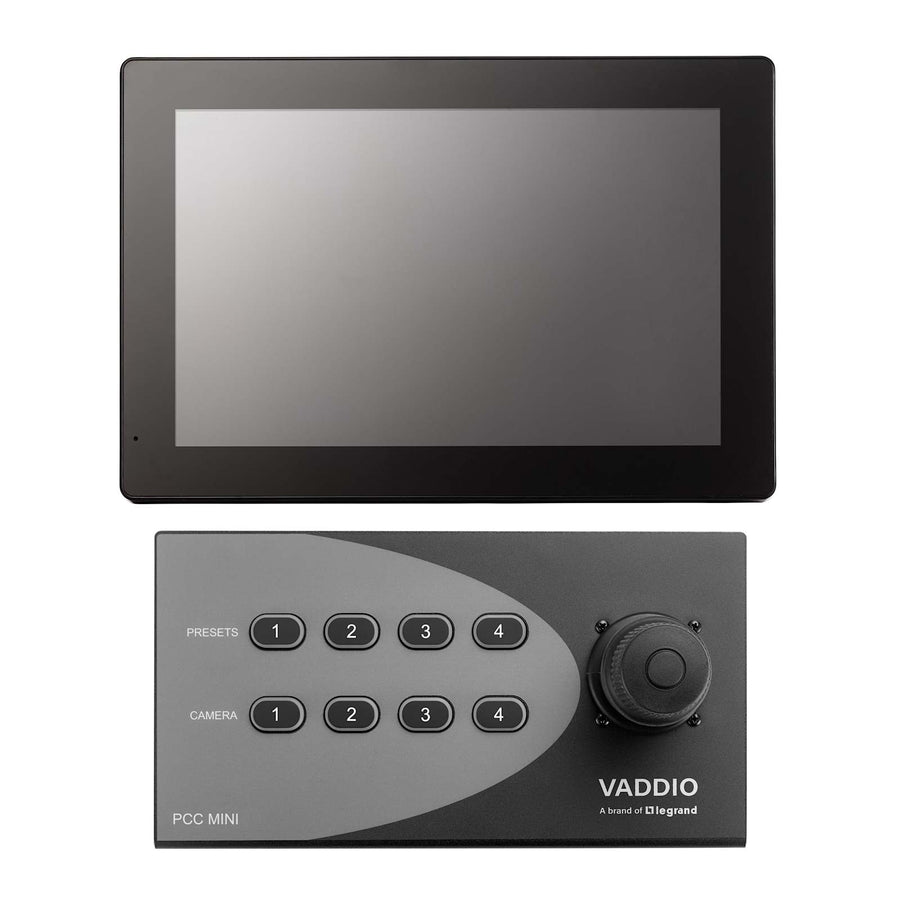

PCC Mini with Vaddio Device Controller
Precision camera controller featuring a three-axis Hall effect joystick and a 10-inch PoE+ color touchscreen
The Vaddio 999-57750-800 PCC Mini with Vaddio Device Controller provides high-precision PTZ control for production-grade environments. This kit pairs a low-profile joystick with a 10-inch color touchscreen to manage up to four compatible IP-controlled Vaddio cameras. The three-axis industrial-grade Hall effect joystick allows for smooth, precise movement, while the touchscreen provides access to web-based user interfaces for Vaddio PTZ cameras, EasyIP peripherals, and AV bridges. Users can configure a custom home position and up to four presets per camera, which are easily accessible via the four programmable preset buttons and a dedicated home button. This unit is PoE+ powered, allowing for flexible placement via an Ethernet switch or a PoE+ Mid-span power injector. For monitoring, the HDMI output can display a decoded IP stream from the selected camera, provided the feature is enabled on the camera itself. This TAA-compliant solution is built with a weighted steel chassis to ensure stability on any desktop surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Joystick: 4.75 in (12 cm) Vaddio Device Controller screen: 1.1 in (2.9 cm) |
| Height | Joystick: 5 in (12.7 cm) Vaddio Device Controller screen: 7 in (17.8 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 25.25" x 12.25" x 12.25" (641.4 x 311.2 x 311.2 mm) |
| Shipping Weight | 9.95 lbs (4.5 kg) |
| Width | Joystick: 9 in (22.9 cm) Vaddio Device Controller screen: 10.3 in (26 cm) |
| 3rd Party Control | Built in |
| Color | Black |
All other specifications 11
| Control Method | with Vaddio Device Controller |
| Control Type | Camera ControllersJoysticksTouch Screen |
| Input Ports | Network |
| Output Ports | HDMI |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| TAA Compliant | Yes |
| UPC | 840077508418 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
How many cameras can I control with the 999-57750-800?
You can control up to four compatible IP-controlled Vaddio cameras, with each camera supporting a custom home position and four programmable presets.
How is the Vaddio PCC Mini and Device Controller powered?
The system uses PoE+ (Power over Ethernet) and can be powered through the same Ethernet switch used by the cameras or via a PoE+ Mid-span power injector.
What is the purpose of the HDMI output on the joystick?
The HDMI output can display a decoded IP stream from your selected camera, which requires the feature to be enabled within the camera's settings.
What is included in the 999-57750-800 package?
This package includes the PCC Mini joystick and the Vaddio Device Controller, which features a 10-inch touchscreen and a commercial-grade steel tabletop mount.
Can I manage many Vaddio devices with this controller?
Yes, you can use the free Vaddio Deployment Tool desktop application to easily deploy and manage hundreds of Vaddio devices throughout your installation.
