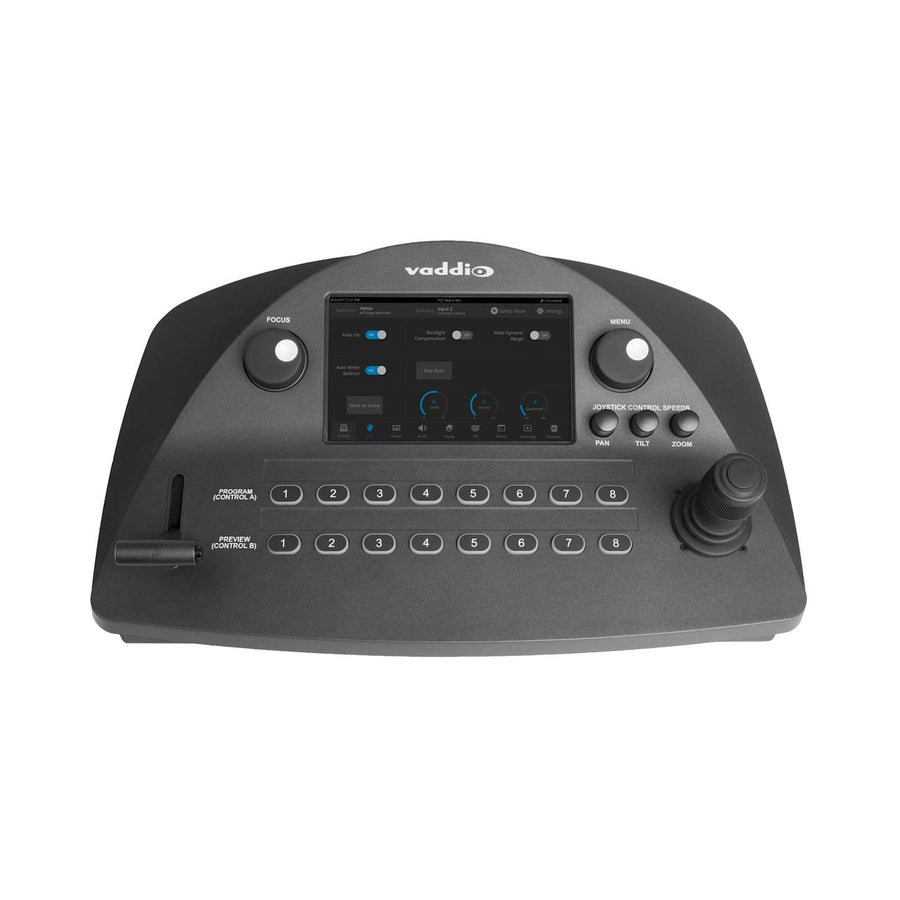

PCC MatrixMIX Live Production Controller
Live production controller for AV Bridge MatrixMIX, featuring a touchscreen, Hall-effect joystick, and PoE+ power.
The PCC MatrixMIX Live Production Controller is designed for use with the AV Bridge MatrixMIX AV Switcher. This broadcast-quality controller integrates video switching, camera control, and graphics mixing into a single ergonomic interface. It is equipped with precision controls for demanding camera operation environments, including a three-axis Hall-effect joystick for smooth, precise movements and a large focus knob with an auto/manual toggle for fine control. Operators can utilize the illuminated push buttons for quick camera selection and dedicated pan, tilt, and zoom speed control knobs. The device features a full-color touchscreen interface to locate camera functions easily. For remote management, the unit includes a built-in browser-based user interface, allowing for control from anywhere via an embedded web server. This controller supports RS232 and Telnet for 3rd party control and provides HDMI and IP Streaming output ports. It is TAA compliant and operates within a temperature range of 32° to 104°F (0° to 40°C). The 7.2 lbs (3.3 kg) unit is powered via PoE+ and is compatible with Vaddio RoboSHOT and ConferenceSHOT cameras on the network.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 11 in (27.9 cm) |
| Height | 5.13 in (13 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 7.2 lbs (3.3 kg) |
| Shipping Dimensions | 24" x 17" x 13" (609.6 x 431.8 x 330.2 mm) |
| Shipping Weight | 11 lbs (5 kg) |
| Width | 17 in (43.2 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 11
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Control Method | JoystickTelnetWeb UI |
| Control Type | Camera ControllersJoysticks |
| Output Ports | HDMIIP Streaming |
| Power Cord | US Cord |
| Power Type | PoE+ |
| TAA Compliant | Yes |
| UPC | 840077501327 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
What cameras is the PCC MatrixMIX compatible with?
The PCC MatrixMIX provides seamless control for any Vaddio RoboSHOT or ConferenceSHOT cameras located on the network.
Does the PCC MatrixMIX require a separate power supply?
The unit uses PoE+ power, and the package includes a mid-span PoE+ power injector with an AC cord set.
What is the difference between this and the AV Bridge MatrixMIX?
The PCC MatrixMIX is the dedicated live production controller designed to work with the AV Bridge MatrixMIX AV Switcher to manage switching and camera operations.
Can I control the PCC MatrixMIX remotely?
Yes, it features a built-in web server and browser-based user interface, allowing for remote control through a network connection.
Which documents should I use for installation and submittals?
The PCC MatrixMIX Installation Guide and Technical Spec PDF are available for installation, while the Integrator's Complete Guide is best for system design.
