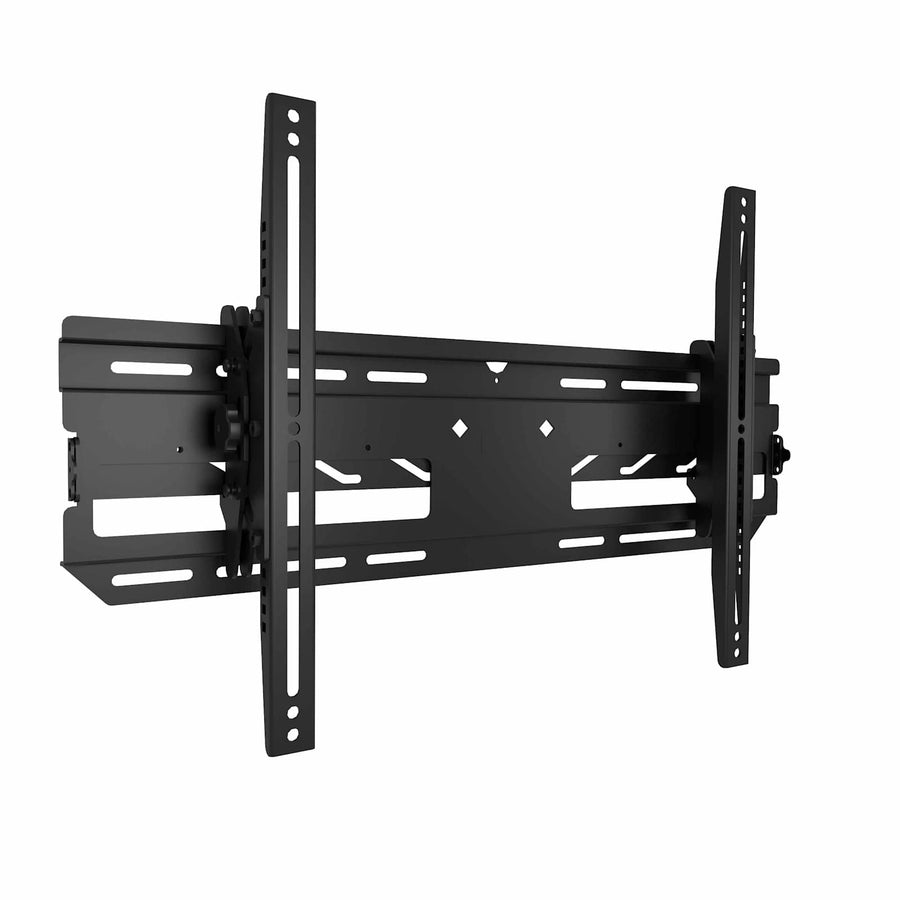

ODMLT Tilting Outdoor Wall Mount
Tilting outdoor wall mount for all-weather installations, featuring 175 lbs capacity and lateral shift adjustment
The ODMLT Tilting Outdoor Wall Mount is engineered to support all-weather outdoor installations, enhancing the viewing experience for digital signage and outdoor living spaces. This UL Listed mount features a weatherproof design that includes a protective outdoor-rated finish and stainless-steel hardware to withstand humid or exposed environments. It provides full motion capabilities to ensure optimal viewing from various positions through integrated tilt and lateral shift adjustability. This universal solution is verified against 7,321 display models from 336 manufacturers, including models from LG ELECTRONICS, SAMSUNG, PHILIPS, and SHARP. For installations on a bare 8" concrete wall, the ODMLT can be secured using 5/16 x 3" Buildex® Tapcon® anchors with Blue Climaseal® coating, though these anchors are not included with the mount. The mount supports a VESA mounting pattern range of 127 x 100mm to 643 x 430mm and maintains a weight capacity of 175 lbs (79.4 kg). This series is designed to work with most indoor or outdoor displays, including those from Panasonic and Toshiba.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.27 in (8.3 cm) |
| Height | 18 in (45.7 cm) |
| Minimum Depth | 3.27 in (8.3 cm) |
| Overall Dimensions | 18" x 29" x 3.27" (457 x 737 x 83 mm) |
| Shipping Weight | 13.69 lbs (6.2 kg) |
| Wall Stud Compatibility | 16" and 24" (406mm and 610mm) |
| Weight Capacity | 175 lbs (79.4 kg) |
| Width | 29 in (73.7 cm) |
All other specifications 11
| Adjustability | Tilt, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Outdoor Use |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872168210 |
| VESA Mounting Pattern | 127 x 100mm - 643 x 430mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Fusion® Display Mount Adapter for 55 in. Cisco Webex Board
FHB5088$415.20
Fusion® and Thinstall™ Hardware Kits | Legrand AV
FHB5149$116.80
Verified fitment
Questions about this part
Will the ODMLT fit my outdoor display?
The ODMLT is verified against 7,321 models from 336 manufacturers, including Samsung 400CX and LG 100QNED8, supporting VESA patterns from 127 x 100mm to 643 x 430mm.
What hardware is needed for a concrete wall installation?
For installation on a bare 8" concrete wall, you will need 5/16 x 3" Buildex® Tapcon® anchors with Blue Climaseal® coating, which are not included with the ODMLT.
What accessories are compatible with this mount?
You can use various accessories like the FHBO5168 brackets for outdoor 55-inch displays or the FHB5147 Universal Flat Panel Mount Hardware kit to complete your installation.
How much weight can this outdoor mount support?
The ODMLT has a maximum weight capacity of 175 lbs (79.4 kg) for a single display installation.
How much adjustment is available for viewing angles?
This mount provides tilt adjustment ranging from +15° to -15° along with lateral shift to help eliminate glare and optimize the viewing position.
