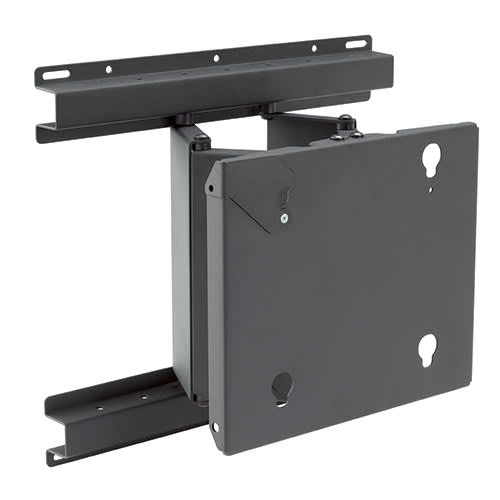

MPWUB, Medium Flat Panel Swing Arm Wall Display Mount - 8 Inch Extension
Medium flat panel swing arm mount for 32" - 65" displays, providing up to 8.75" of extension and 45º of swivel
The Chief MPWUB is a medium flat panel swing arm wall display mount designed to provide smooth extension for monitors and flat panel displays. It is engineered to maintain an ultra low-profile in the home position, sitting only 1.5" (38 mm) deep once installed. This mount offers an 8.75" (222 mm) extension range to help installers achieve the ideal viewing angle for the user. To allow for precise positioning after the initial install, the mount includes integrated lateral shift of up to 4.5" (11.4 cm). Users can orient the display in either landscape or portrait mode; for easier rotation, the MAC400 M-Series Rotation Adapter can be used so the screen does not need to be removed from the mount. The MPWUB supports a VESA mounting pattern from 100 x 100mm to 709 x 431mm and handles a weight capacity of up to 100 lbs (45.4 kg). This model is compatible with 16" (406mm) center studs. Please note that depth and extension measurements do not include the interface bracket, which adds an additional 0.5" to 1.5".
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 18 in (45.7 cm) |
| Lateral Shift | 4.5 in (11.4 cm) |
| Overall Dimensions | 18.0" x 23.6" x 3.4" (457 x 600 x 87mm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
All other specifications 9
| Width | 23.6 in (59.9 cm) |
| Adjustability | Extension |
| Application | Wall |
| Color | Black |
| Orientation | Landscape and Portrait |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872104485 |
| VESA Mounting Pattern | 100 x 100mm - 709 x 431mm |
Resources
You'll need these with it
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series Rotation Adapter
MAC400$187.20
M-Series CPU/DVD/Media Player Adapter-MAC251
MAC251$187.20
M-Series CPU/DVD/Media Player Adapter-MAC252
MAC252$172.80
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC525, In-Wall Storage Box
PAC525$79.20
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Large Accessory Shelf
PACCS1$147.20
M-Series Interface Brackets - MSB6364
MSB6364$125.60
M-Series Interface Brackets - MSB6301
MSB6301$125.60
Verified fitment
Questions about this part
Will this mount fit my display?
The MPWUB is verified against 9,701 display models from 371 manufacturers, including Samsung 245B, LG 26CS460T, Panasonic BT3DL2550, TCL 32D100, and Sharp 40BG3E.
How much extension does the MPWUB provide?
This swing arm provides a smooth extension of up to 8.75" (222 mm) to reach your desired viewing angle.
What do I need to buy to use this with an interface bracket?
The MPWUB requires an interface bracket such as the M-Series Universal Interface Bracket (MSBUB) to complete the installation.
Can I change the orientation from landscape to portrait?
Yes, the mount supports both orientations. You can use the MAC400 M-Series Rotation Adapter to rotate the display without removing it from the mount.
Does this mount include the necessary installation tools?
The installation manual for the MPW series can be found in the resources section for a complete list of tools required for your install.
