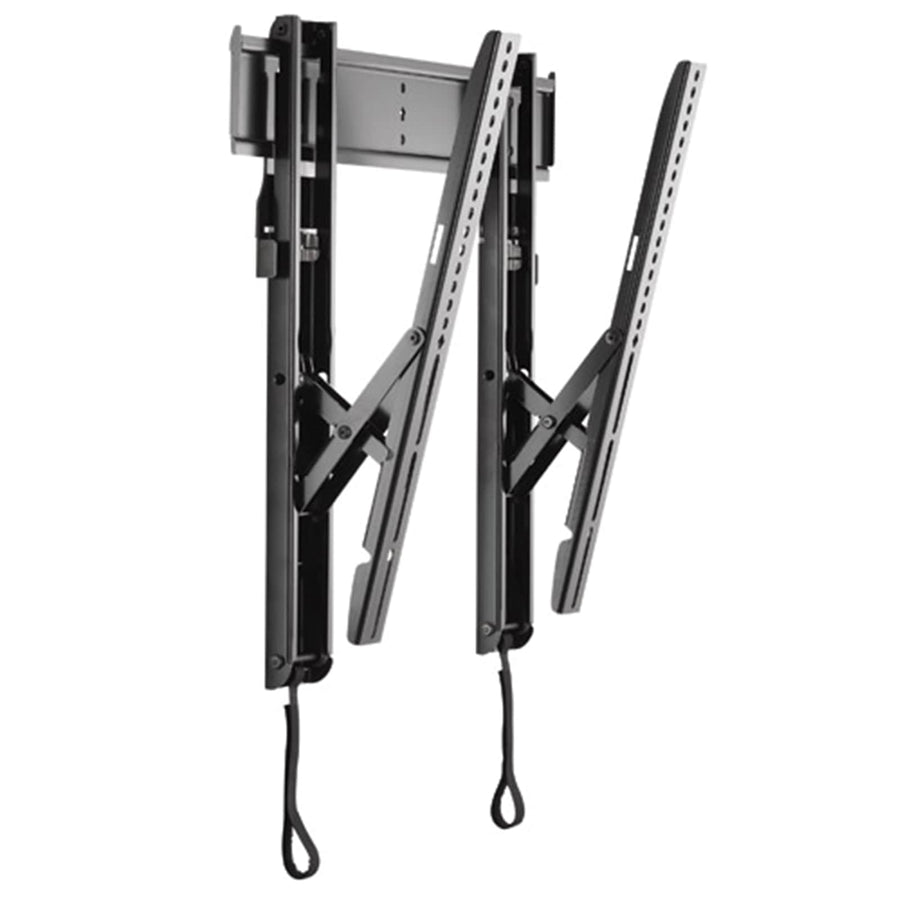

Medium Thinstall™ Tilt Wall Mount
Tilt wall mount for ultra-thin displays up to 2 in (50.8 mm) deep, featuring 12° tilt and GlideLock technology
The Chief MTTU is a Medium Thinstall™ Tilt Wall Mount engineered specifically for ultra-thin TVs with a maximum screen thickness of 2 in (50.8 mm). Designed to complement the aesthetics of modern, low-profile displays, this mount offers an ultra low-profile design that maintains a minimalist appearance on the wall. It features a one-piece steel bracket with two tilting interfaces, each equipped with a sliding flat for enhanced security. To expedite installation, the system utilizes GlideLock technology for tool-less latching. For installation flexibility, the mount provides 12° of smooth, fingertip tilt (+0° and -12°) and allows for lateral shift depending on the specific VESA mounting pattern of the screen. To assist with cable management and access, the mount includes a dedicated cable stand and a bottom pullout feature. This unit is designed for landscape orientation only and is UL Listed for safety. Because of its extremely low-profile design, it is highly recommended to use an in-wall accessory box, such as the PAC525 or PAC526, to facilitate outlet installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Screen Thickness | 2 in (50.8 mm) |
| Minimum Depth | 0.75 in (1.9 cm) |
| Shipping Dimensions | 33.5" x 11.25" x 3" (850.9 x 285.8 x 76.2 mm) |
| Shipping Weight | 11.25 lbs (5.1 kg) |
| Typical Screen Size | 26" - 47" (660mm - 1194mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Adjustability | Tilt |
| Application | Wall |
All other specifications 9
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +0° and -12° |
| UPC | 841872117232 |
| VESA Mounting Pattern | 100 x 100mm - 600 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the MTTU fit my ultra-thin display?
The MTTU is designed specifically for displays with a maximum thickness of 2 in (50.8 mm). It is verified against 3,086 display models from 49 manufacturers, including the Sony 65BZ35P and LG 32LE4500.
What do I need for the wall installation?
Due to the ultra low-profile design, it is recommended to use an in-wall accessory box like the PAC525 or PAC526 to assist with outlet installation.
Can I use this mount in portrait orientation?
No, this specific mount is designed for landscape orientation only.
What tools are required for installation?
The mount features GlideLock technology, which provides tool-less latching to speed up the installation process.
Does this mount allow for screen adjustment?
Yes, it provides 12° of smooth tilt (+0° and -12°) and allows for lateral shift depending on your screen's VESA mounting pattern.
