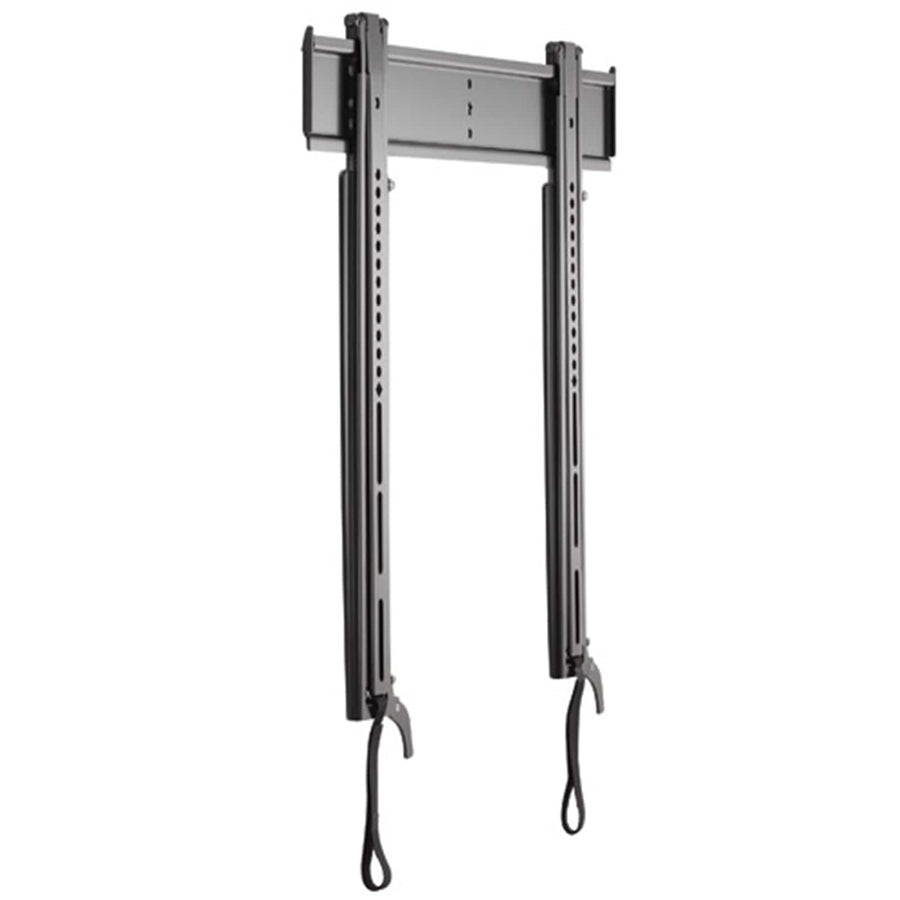

Medium Thinstall™ Fixed Wall Display Mount
Fixed wall mount for 32" - 65" displays with an ultra-low 0.39" (1 cm) profile and GlideLock tool-less latching
The Chief MSTU is a Medium Thinstall™ Fixed Wall Display Mount specifically designed for ultra-thin flat panel TVs with a depth of less than 5 inches (127 mm). This universal solution features an ultra-low-profile design with a minimum depth of 0.39 in (1 cm) to keep displays as close to the wall as possible. The mount utilizes GlideLock technology, providing tool-less latching for faster, more efficient installation. Its construction consists of a one-piece steel bracket paired with two tilting interfaces, each featuring a sliding flag to increase security. For ease of maintenance, the mount includes a cable stand and a bottom pullout to facilitate cable access. While the MSTU is a fixed mount, it offers lateral shift capabilities depending on the specific VESA mounting pattern of the screen. Due to the extremely low profile, it is recommended to use an in-wall accessory box, such as the PAC525 or PAC526, to assist with outlet installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.39 in (1 cm) |
| Shipping Dimensions | 39" x 13" x 2" (990.6 x 330.2 x 50.8 mm) |
| Shipping Weight | 9.65 lbs (4.4 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
All other specifications 6
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872117249 |
| VESA Mounting Pattern | 100 x 100mm - 600 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the Chief MSTU fit my display?
The MSTU is verified against 8,601 display models from 223 manufacturers, including Samsung 400CX, Sony 43BZ35P, LG 32CL40, Panasonic TB-43W60AEY, and Philips 32FD9954.
What displays are compatible with the MSTU?
This mount is designed specifically for and only compatible with displays that are less than 5 inches (127 mm) in depth.
What do I need for in-wall power installation?
Because of the ultra-low 0.39 in (1 cm) profile, we recommend using an in-wall storage box like the PAC525 or the PAC526 Large In-Wall Storage Box for your outlet installation.
How is the MSTU mounted and serviced?
It is a fixed-orientation landscape mount that uses GlideLock for tool-less latching. It includes a bottom pullout to help with cable access once the display is mounted.
Can this mount be used in portrait mode?
No, the MSTU is designed for landscape mode installation only.
