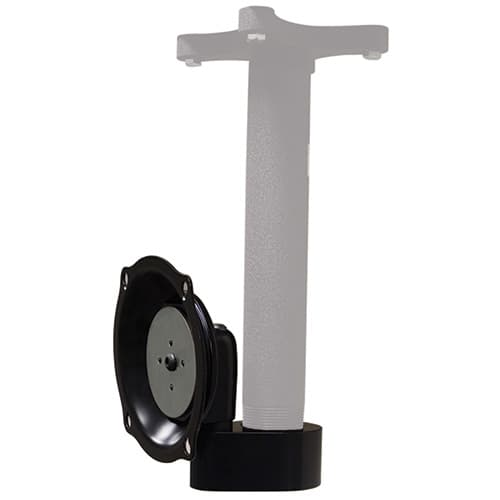

Medium Flat Panel Ceiling Mount
Ceiling mount for 20"–43" displays, featuring 75 lbs capacity and Centris tilt technology
The JHS210B is a single-screen medium flat panel ceiling mount designed for professional environments requiring precise display positioning. This mount is built to accommodate displays ranging from 20" to 43" (508 mm to 1092 mm) and supports a weight capacity of 75 lbs (34 kg). It utilizes Chief's exclusive Centris Technology, which provides fingertip tilt to self-adjust for different display weights, ensuring the screen angle stays set in place until manual readjustment is required. This model allows for both landscape and portrait orientations to meet specific room layouts. For ease of use after the mount is up, it features post-installation leveling with a roll that requires no tools. Cable management is facilitated through an extension column with 1.5" NPT capability, allowing for organized routing. This SKU is a component of a larger system; a ceiling plate and an extension column (either adjustable or fixed) must be ordered separately to complete the installation. This mount is compatible with VESA mounting patterns 100 x 100mm, 200 x 100mm, and 200 x 200mm. For displays that do not follow standard VESA patterns, the MSB interface bracket is available as a separate accessory. The JHS210B is TAA compliant and UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 19.5" x 10.5" x 3.7"(495.3 x 266.7 x 94 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Typical Screen Size | 20" - 43" (508mm - 1092mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | SwivelTilt |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 1 |
All other specifications 7
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872100548 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Electrical Storage Enclosure
CMA160$302.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Unistrut Adapter
CMA370$23.20
Verified fitment
Questions about this part
Will the JHS210B fit my specific display?
This mount is verified against 9,555 display models from 298 manufacturers, including Samsung 204BB, Sony 43PZ30P, LG 20LA90, Panasonic BTL1500, and Philips 150B3V.
What else do I need to buy to complete the installation?
A ceiling plate and an extension column (either fixed or adjustable) are required for setup and must be ordered separately from this mount.
Can I use this mount for portrait orientation?
Yes, the JHS210B is designed to support both landscape and portrait mounting orientations for your display.
How do I adjust the screen tilt after it is mounted?
The Centris Technology allows for fingertip tilt, and you can perform final post-installation leveling using the leveling roll without needing tools.
What VESA patterns are supported by this mount?
The JHS210B supports VESA mounting patterns of 100 x 100mm, 200 x 100mm, and 200 x 200mm.
