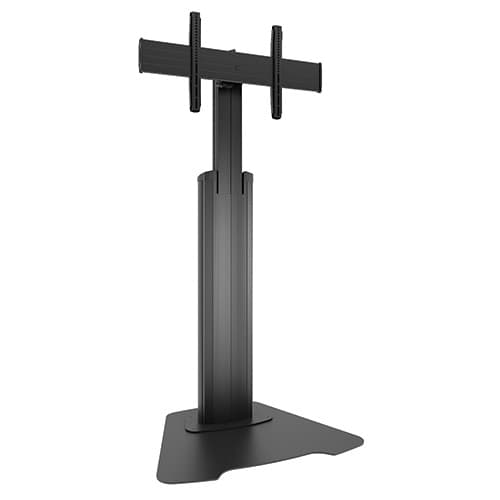

LFAUB, Large Fusion® Manual Height Adjustable Floor AV Stand
Manual height adjustable floor AV stand for 42"–86" displays with 200 lbs capacity and tilt adjustment
The Chief LFAUB is a manual height adjustable floor AV stand designed for professional environments like corporate offices and classrooms. It supports a wide range of single displays from 42" to 86" (1067–2184 mm) with a maximum weight capacity of 200 lbs (90.7 kg). This stand is built with a sleek aesthetic featuring rounded edges to maintain a professional appearance in any setting. Users can easily adjust the screen height between 41.5 and 61.5 inches (106–156 cm) by using a turn knob by hand or a 1/2" hex bit on a power drill. The LFAUB includes Centris Technology for controlled tilt (+/- 5°) and roll adjustments via integrated knobs. For cable management, flexible cable covers allow for lay-in access at any point along the column. This stand is compatible with portrait orientation if the display is at least 27" tall and utilizes a VESA pattern of 400 x 400mm or smaller. To maintain a clean installation, Chief Fusion® Universal Back Covers can be used to provide aesthetic coverage for the rear of the display and components. This UL Listed floor-cart solution is verified against 5,450 display models from 255 manufacturers, including Samsung, LG Electronics, and Panasonic.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 50.5" x 26.5" x 11" (128.3 x 67.3 x 27.9 cm) |
| Shipping Weight | 141 lbs (64 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt, Micro-Adjustable, Height Adjustable |
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
All other specifications 8
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +/- 5° |
| UPC | 841872156330 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Fusion® Center Channel Speaker, Large Displays
FCA830$172.80
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Side Speaker Adapters
FCA535$178.40
Fusion® Carts and Stands Medium CPU Holder - FCA651B
FCA651B$265.60
Fusion® Carts and Stands Large CPU Holder - FCA650B
FCA650B$358.40
Verified fitment
Questions about this part
Will the Chief LFAUB fit my display?
This stand is verified against 5,450 display models from 255 manufacturers, including the Samsung 400BX and LG 100QNED85AU. It supports 42" to 86" screens with a VESA pattern between 200 x 200mm and 800 x 400mm.
What is required to adjust the height of the LFAUB?
The height can be adjusted manually using a turn knob, or you can use a 1/2" hex bit on a power drill to move the screen between 41.5 and 61.5 inches (106–156 cm).
Can I mount a display in portrait orientation on this stand?
Yes, portrait orientation is supported if the display is at least 27" tall and utilizes a VESA mounting pattern of 400 x 400mm or smaller.
What accessories are compatible with this floor stand?
You can enhance the setup with Chief Fusion® accessories such as the FCA811 14 Inch Above/Below Shelf, the FCA650B Large CPU Holder, or the FCAC1XB Flat Panel Back Cover.
How do I manage cables on the LFAUB?
The stand features flexible cable covers that allow for lay-in access at any point along the vertical column to keep wiring organized.
