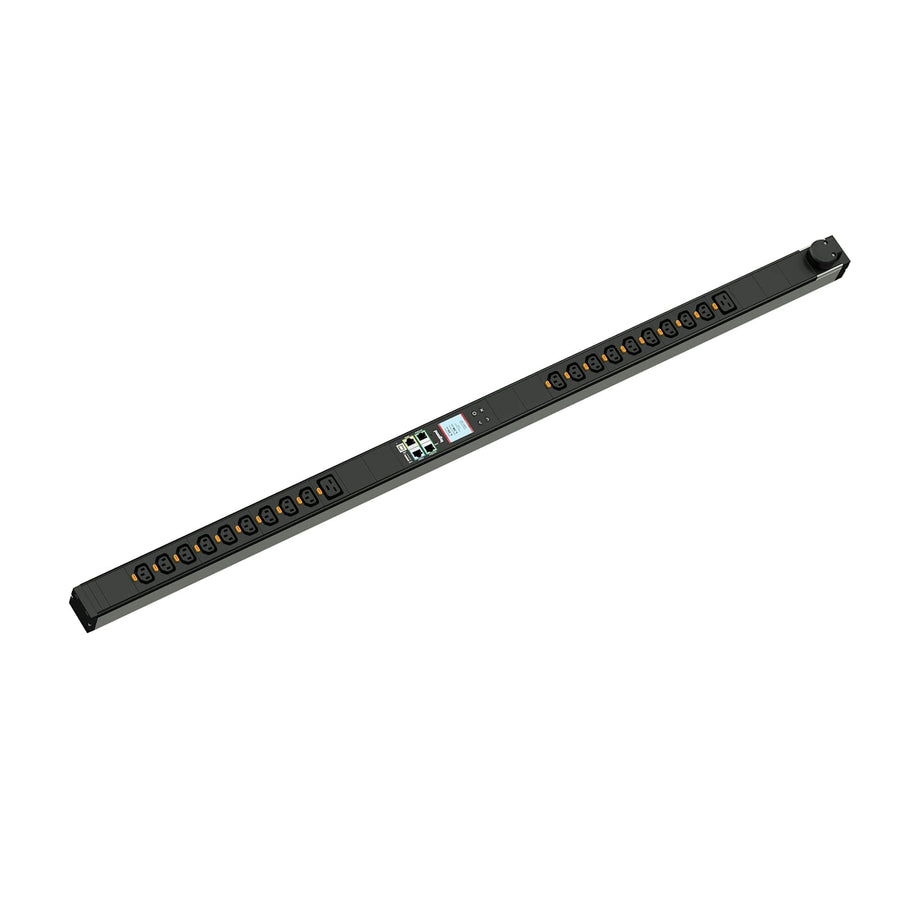

Legrand Vertical ZeroU Network Metered PDU, 20 Outlet
Vertical ZeroU Network Metered PDU with 20 outlets, featuring 18 IEC C13 and 2x IEC C19 receptacles
The LP-42201 is a 20-outlet Vertical ZeroU Network Metered PDU designed to provide real-time power metering and remote monitoring for critical infrastructure. This unit allows system integrators to monitor load levels and set custom notifications for user-specified conditions. Monitoring is accessible via the built-in color LCD screen or through a tablet, smartphone, or computer from nearly anywhere. This 208 VAC, 20 Amp PDU features a 9.84 ft (3 m) corded cable with an L6-20P plug. The 20 receptacles include 18 locking IEC C13 (12A) outlets and 2 locking IEC C19 (16A) outlets. Designed for vertical mounting, this TAA compliant unit is UL listed and FCC compliant. It utilizes a button mount style and is compatible with various mounting brackets, including the SNE-UVPB-4245-S SNE Universal Vertical Power Bracket and the FWD-UVPB-42-45 Forward Universal Vertical Power Bracket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 51.1 in (129.8 cm) |
| Shipping Weight | 9.58 lbs (4.4 kg) |
| Volts AC | 208 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 20 |
| Plug Type | L6-20P |
| Receptacle Type | IEC C13 and C19 |
| TAA Compliant | Yes |
| UPC | 662875015246 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00

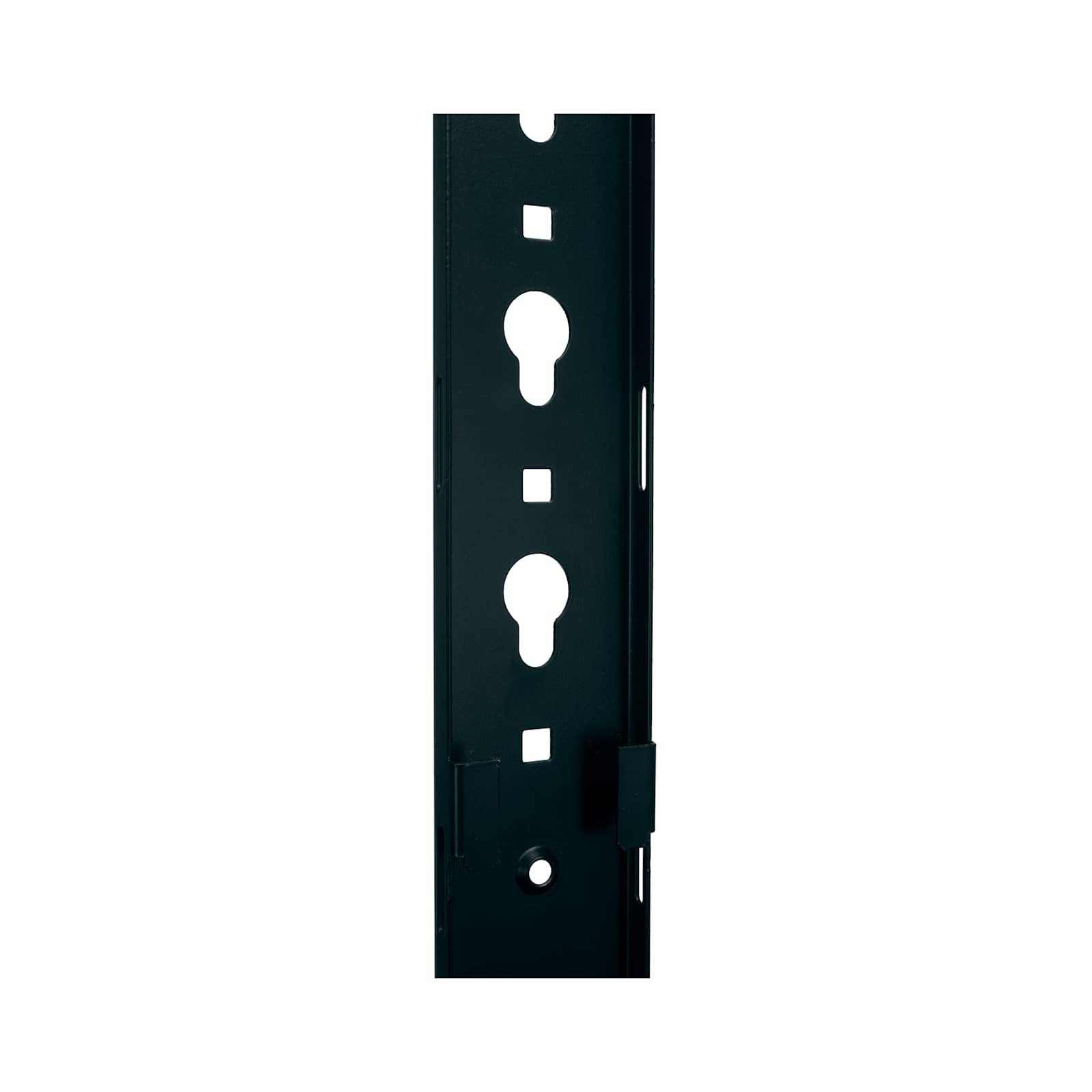

42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
Will the LP-42201 fit in my standard rack?
Yes, this is a ZeroU vertical PDU, but for specific mounting, it is compatible with the FWD-UVPB-42-45 and SNE-UVPB-4245-S Universal Vertical Power Brackets.
What type of receptacles does this PDU have?
The LP-42201 provides 20 total receptacles, specifically 18 locking IEC C13 12A outlets and 2 locking IEC C19 16A outlets.
How can I monitor power usage remotely?
You can monitor power usage through the integrated color LCD screen on the unit or via mobile devices and computers from almost any location.
Does this PDU require a specific plug type?
This 20 Amp PDU requires an L6-20P plug and operates on 208 VAC.
Which documents are available for submittals?
Technical details can be found in the LP 42201 Vertical ZeroU Network Metered PDU A&E Specification Sheet or the Legrand PDU User Guide.
