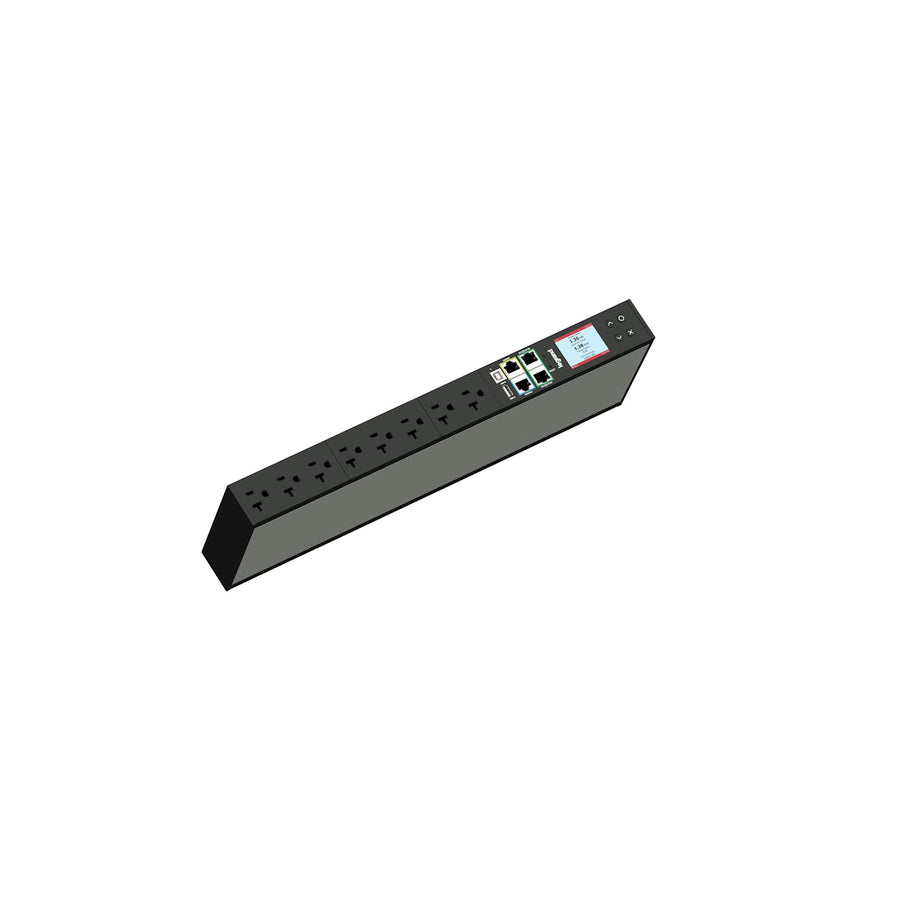

Legrand Horizontal Rackmount Network Metered PDU, 8 Outlet
Networked 1U rackmount PDU with 8 NEMA 5-20R outlets and 20 Amp capacity
The Legrand LP-41210 is a network-managed power distribution unit designed to provide real-time line level power metering for critical rack infrastructure. This 1U horizontal rackmount PDU features a Color LCD screen that provides immediate visibility of power usage directly at the device. For remote monitoring, the unit allows users to view reporting and load levels via tablets, smartphones, or computers from virtually any location. This LP-41210 model provides 8 NEMA 5-20R receptacles, each rated for 16A, and utilizes a 20 Amp L5-20P plug type. It is equipped with a 9.84 ft (3 m) corded power cable and is TAA compliant for government and high-security installations. This unit is UL Listed and FCC compliant, ensuring reliable power management for professional AV and IT environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 5.2 in (13.2 cm) |
| Height | 1.7 in (4.3 cm) |
| Shipping Weight | 5.99 lbs (2.7 kg) |
| Volts AC | 120 VAC |
| Width | 17.2 in (43.7 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Horizontal |
| Outlet Count | 8 |
| Plug Type | L5-20P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | Yes |
| UPC | 662875015147 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Questions about this part
How can I monitor the power usage of the LP-41210 remotely?
The LP-41210 allows you to monitor load levels and power usage remotely via tablets, smartphones, or computers, as well as through the onboard Color LCD screen.
What is the required plug type for this PDU?
The LP-41210 requires a NEMA L5-20P plug and features a 9.84 ft (3 m) cord length.
Is this PDU TAA compliant for government contracts?
Yes, the LP-41210 is TAA Compliant and is also UL Listed and FCC compliant.
What accessories are available for environmental monitoring?
You can add a Premium+ PDU with RackLink™ Temperature and Humidity Sensor (RLNK-TEMP) or a Dry Contact Sensor (RLNK-CONT) to your setup.
What is the difference between this PDU and the LP-41210 series variants?
The LP-41210 is a specific 8-outlet configuration; other models in this series offer different outlet counts, such as 10, 20, 24, or 42 outlets.
