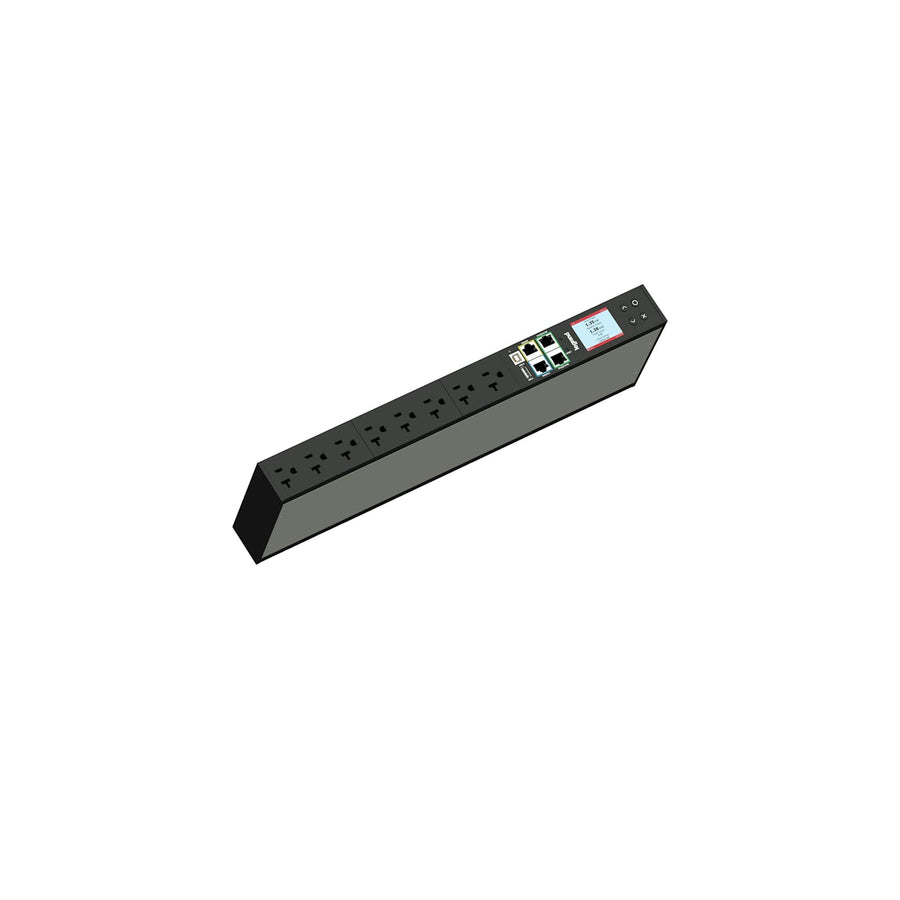

Legrand Horizontal Rackmount Network Metered PDU, 8 Outlet
8-outlet network metered PDU with NEMA 5-20R receptacles, 15 Amp capacity, and 1U horizontal rackmount design
The Legrand LP-41110 provides line-level power metering in real time to help installers and system integrators monitor loads and manage power usage. This 1U horizontal rackmount PDU features a color LCD screen that displays power metrics directly on the unit. For remote monitoring, the device allows users to view reporting and power usage data via tablets, smartphones, or computers from nearly anywhere. This specific model is configured with 8 NEMA 5-20R receptacles and is TAA compliant. It operates on 120 VAC with a 15 Amp rating and includes a 9.84 ft (3 m) corded plug. The unit's chassis has a height of 1.7 in (4.3 cm) and a depth of 5.2 in (13.2 cm). For specialized environmental monitoring, the LP-41110 is compatible with accessories like the RLNK-TEMP temperature and humidity sensor and the RLNK-CONT dry contact sensor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 5.2 in (13.2 cm) |
| Height | 1.7 in (4.3 cm) |
| Shipping Weight | 5.25 lbs (2.4 kg) |
| Volts AC | 120 VAC |
| Width | 17.2 in (43.7 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Horizontal |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | Yes |
| UPC | 662875015130 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the LP-41110 fit in my standard equipment rack?
Yes, this is a 1U horizontal rackmount PDU that includes an L-bracket for installation.
What NEMA receptacle type does this PDU use?
The LP-41110 is equipped with 8 NEMA 5-20R receptacles.
Can I monitor the power usage remotely?
Yes, you can monitor power usage and receive custom notifications through a color LCD screen or via tablets, smartphones, and computers.
Which environmental sensors are compatible with this PDU?
This unit can work with the RLNK-CONT dry contact sensor and the RLNK-TEMP temperature and humidity sensor.
What is the power cord specification for the LP-41110?
It features a 9.84 ft (3 m) corded plug with a 5-15P plug type.
