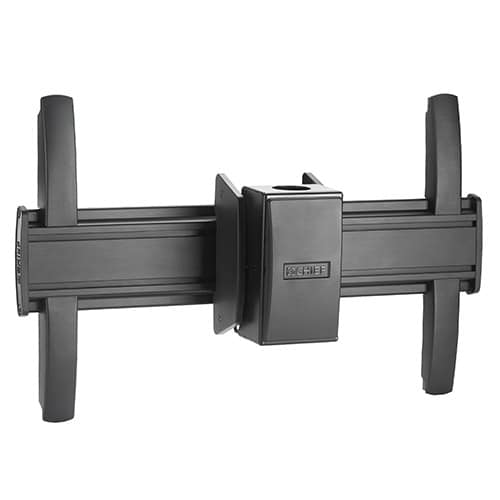

LCM1U, Fusion® Large Flat Panel Ceiling Mount
Ceiling mount for 42"-75" displays, 125 lbs capacity, featuring Centris® fingertip tilt for precise positioning
The Chief LCM1U is a Fusion® series ceiling mount designed for professional digital signage installations. This mount supports a single display ranging from 42" to 75" (1067 x 1067 mm to 1905 x 1905 mm) with a weight capacity of 125 lbs (56.7 kg). It is engineered for landscape orientation and utilizes Centris® fingertip tilt technology, allowing installers to effortlessly adjust the display with +5° to -20° of tilt. The tilt mechanism includes four set locking points to ensure repeatable positioning and eliminate guesswork during installation. This component is part of a modular system and requires a separate ceiling plate and extension column to function. It is compatible with traditional 1.5" NPT ceiling plates and new CPA pinned ceiling plates and column systems. For installers requiring stacked configurations, this unit can be stacked on a single pole when used with CPA columns.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 29" x 14" x 6.5"(736.6 x 355.6 x 165.1 mm) |
| Shipping Weight | 18.12 lbs (8.2 kg) |
| Typical Screen Size | 42" - 75" (1067mm - 1905mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt |
| Adjustments | Roll: 3° |
| Application | Ceiling |
| Color | Black |
All other specifications 7
| Number of Displays | 1 |
| Orientation | Landscape |
| TAA Compliant | No |
| Tilt | +5° and - 20° |
| UPC | 841872156170 |
| VESA Mounting Pattern | 200 x 100mm - 616 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate with Adjustable Column
CMA700$150.40
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
Structural Ceiling Plate
CMA345$208.00
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
CMS0406, 4-6' Adjustable Extension Column, Pole
CMS0406$193.60
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Verified fitment
Questions about this part
Will the LCM1U fit my display?
The LCM1U is verified against 9,526 display models from 306 manufacturers, including Samsung 320MX, LG 32CS460, Panasonic 55VW3KD, Sharp 40BJ3E, and Toshiba 27WL46G.
What else do I need to buy to complete the installation?
The LCM1U is a component that requires a separate ceiling plate and an extension column (such as the CMS0406 or CMS115) to complete the mounting assembly.
Can I stack multiple displays on one pole?
Yes, you can stack displays on a single pole when using the CPA column system.
How do I adjust the tilt once the display is mounted?
The Centris® fingertip tilt technology allows for easy adjustments within a +5° to -20° range and features four locking points for precise, repeatable positioning.
What VESA patterns are supported by this mount?
This mount supports VESA mounting patterns ranging from 200 x 100mm to 616 x 400mm.
