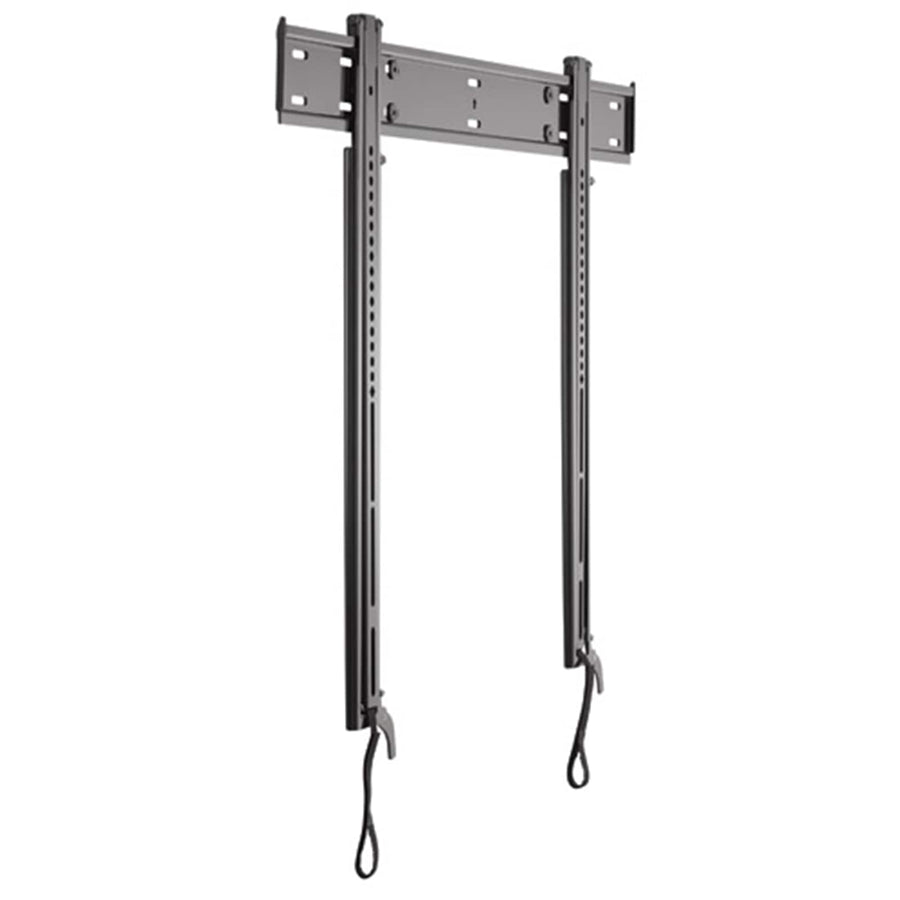

Large Thinstall™ Fixed Wall Display Mount
Ultra-low profile fixed wall mount for 42"- 86" displays, 125 lbs capacity, with lateral shift and GlideLock technology
The Chief LSTU is a Large Thinstall™ Fixed Wall Display Mount designed for installations where a slim, low-profile aesthetic is required. This mount supports displays ranging from 42" to 86" (1067mm - 2184mm) with a weight capacity of 125 lbs (56.7 kg). It is specifically engineered for ultra-thin displays, remaining compatible with devices less than 5 inches (127 mm) in depth. For ease of installation, the GlideLock system provides tool-less latching to speed up the process. The design includes a cable stand and a bottom pullout to ensure necessary cable access once the screen is positioned. To accommodate different mounting requirements, the mount offers lateral shift, though the exact range depends on the specific VESA mounting pattern of the screen. This mount is UL Listed and features open wall plates to allow for easier electrical and conduit placement behind the display.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.39 in (1 cm) |
| Shipping Dimensions | 41.25" x 11.25" x 2" (104.8 x 28.6 x 5.1 cm) |
| Shipping Weight | 10.16 lbs (4.6 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Wall Stud Compatibility | 16" (406mm) and 20" (508mm) and 24" (610mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Fixed |
| Application | Wall |
All other specifications 7
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872117225 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 500mm |
| Certifications | UL Listed |
Resources
You'll need these with it
PAC526, Large In-Wall Storage Box
PAC526$116.80
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
PAC525, In-Wall Storage Box
PAC525$79.20
V500-5 Small Raceway in Ivory
V500-5$3.14
DWR Series Pivoting Wall Rack - DWR-21-22
DWR-21-22$1,398.60
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
AV Series 12-Port/8 PoE+ Gigabit Managed Switch with US Power Cord
AMS-1208P$615.00
25ft (7.6m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41413$124.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
34" Tall AV Rack 15U Component rack for home theater equipment
CFR2115-B1
Verified fitment
Questions about this part
Will the Chief LSTU fit my display?
The LSTU is verified against 7,065 display models from 180 manufacturers, including Samsung 460CX2, Sony 50BZ30P, LG 32LY540S, Panasonic LH75QM1KD, and Hisense 100E77NQTUK-PRO.
What do I need for the wall installation?
This mount is designed for a very low profile; it is recommended to use an in-wall accessory box, such as the PAC526 or PAC525, to assist with electrical outlet installation.
What is the VESA pattern for this mount?
The LSTU supports VESA mounting patterns ranging from 200 x 200mm to 800 x 500mm.
How do I access cables behind the screen?
The mount features a dedicated cable stand and a bottom pullout feature to facilitate easier cable management and access.
What is the weight capacity of the LSTU?
The LSTU has a maximum weight capacity of 125 lbs (56.7 kg) for the supported display range.
