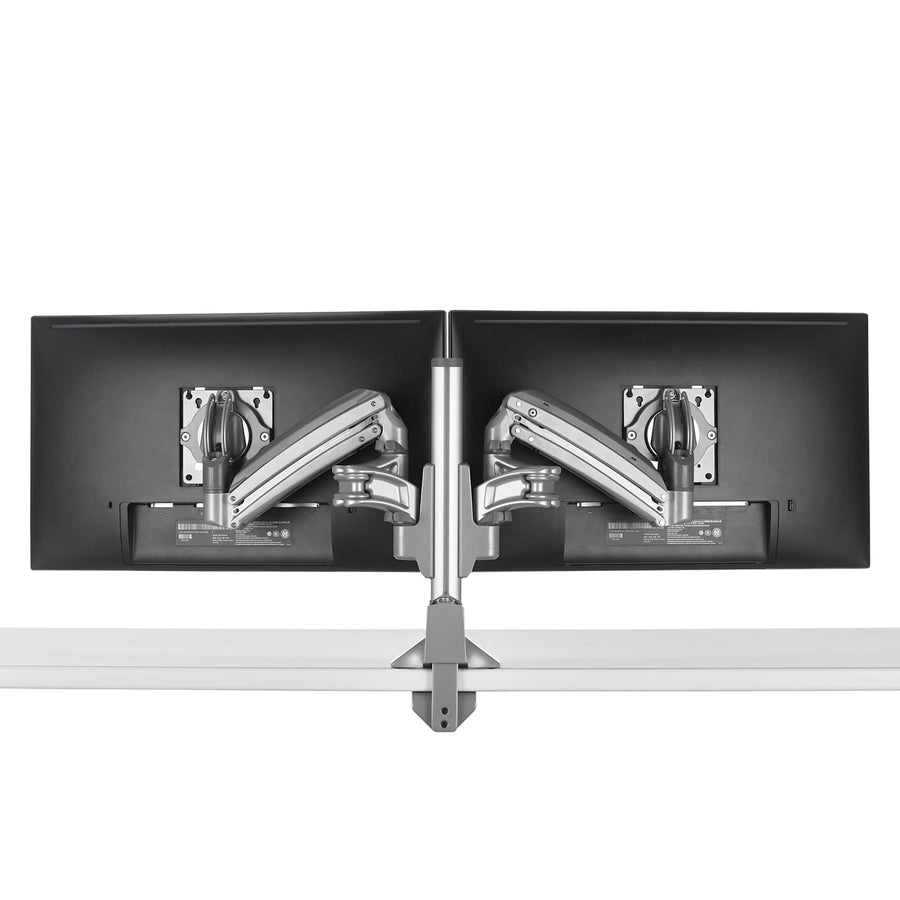

KX Low-Profile Dual Monitor Arms, Column Desk Mount, Silver
Dual monitor arms for 10–32" displays, featuring dynamic height adjustment and Centris™ Extreme Tilt in a silver finish
The Chief KXC220S is a dual-monitor workstation mount designed for desk or tabletop applications. This silver-finished system uses FleExtra-Largeink technology to optimize depth, allowing users to maintain a full range of motion even on shallow-depth desktops. Each arm provides a maximum extension of 22.5 in (57.2 cm) and is compatible with displays ranging from 10 to 32" (254mm - 813mm) with VESA mounting patterns of 75 x 75mm and 100 x 100mm. Each display is supported by a weight capacity of 5 to 25 lbs (2.3 - 11.3 kg). The system offers 13" (330.2 mm) of dynamic height adjustment via gas-spring technology, plus an additional 7" (178 mm) of manual height adjustment on the column. Integrated Centris™ Extreme Tilt technology allows for effortless positioning with a tilt range of +75° to -10°.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 22.5 in (57.2 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 18.7 lbs (8.5 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 12
| Application | Desk-Tabletop |
| Array Configuration | 2x1 |
| Color | Silver |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| Special Features | Extreme Tilt TechnologyMulti-Display |
| TAA Compliant | No |
| Tilt | +75°-10° |
| UPC | 841872172774 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Verified fitment
Questions about this part
Will the KXC220S fit my specific monitor?
This mount is verified against 5,290 display models from 180 manufacturers. It is compatible with various models including the Samsung 150MP, LG 15LA6R, Dell 1704FPT, Sharp 1T-C24FA2KF2NB, NEC 1740CX, and Philips 15PF4121.
How do I mount this to my desk?
The KXC220S can be secured using the included kit to clamp to the edge of a desk, via a standard grommet hole, or through a bolt hole.
What is the total adjustment range for height?
The system provides 20" (508 mm) of total height adjustment, consisting of 13" (330 mm) of dynamic gas-spring adjustment and 7" (178 mm) of manual adjustment on the column.
What accessories are compatible with this mount?
You can add various components such as the KRA226S Kontour™ Center-of-Table Grommet Plate or the KRA300S Laptop & Tablet Tray, Silver.
Does this mount support portrait orientation?
Yes, the KXC220S supports both Landscape and Portrait orientations for the mounted displays.
