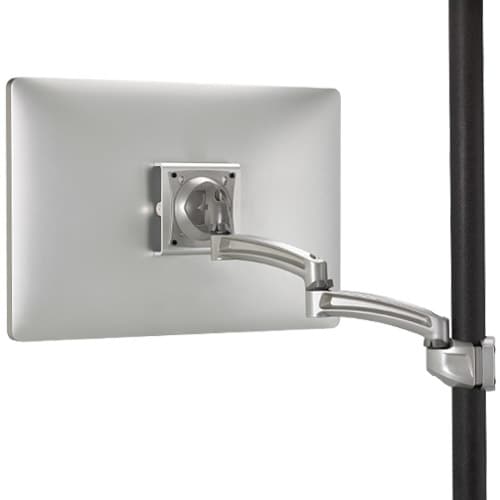

Kontour™ K2P Pole Mount Articulating Arm, Single Monitor-K2P120S
Articulating monitor arm for 10-32" displays, providing 16.6" extension and +/- 15° tilt on 1.50" to 1.90" diameter poles
The Chief K2P120S is a single-monitor articulating arm designed for desk or tabletop applications using a pole-mount system. This Kontour™ K2P series arm is engineered for workstations where adjustable viewing positions are necessary for user comfort. It features two arm links and allows for both landscape and portrait orientations. Users can achieve a maximum extension of 16.6 in (42.2 cm) and a minimum depth of 2.95 in (7.5 cm). The patented Centris™ Head enables effortless tilt adjustment of +15° / -15° to optimize viewing angles for both seated and standing users. This silver-finished, forged aluminum arm supports displays with a weight capacity of 40 lbs (18.1 kg) and is designed to fit poles with a diameter range of 1.50" - 1.90" (38.1mm - 48.3 mm). For a professional installation, it includes tool-free cable management clips to secure and conceal wiring.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 16.6 in (42.2 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 25.75" x 9.75" x 6.5"(654.1 x 247.7 x 165.1 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | ExtensionSwivelTilt |
All other specifications 10
| Application | Desk-TabletopPole |
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160610 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Verified fitment
Questions about this part
Will this mount fit my specific monitor?
This arm is verified against 6,617 display models from 238 manufacturers, including Samsung 150MP1, LG 15LA60, Sharp 1T-C24FA2KF2NB, Dell 1704FP, Philips 10BDL4151T, and NEC 1940CX.
What is required to complete the installation of this arm?
This SKU is the articulating arm itself; you will need a compatible pole (1.50" - 1.90" diameter) and may require specific interface brackets like the FSB1U or FSB4243B depending on your display's VESA pattern.
Can I mount this in both landscape and portrait modes?
Yes, the K2P120S supports both landscape and portrait orientations to accommodate different workstation setups.
How much tilt adjustment is available?
The integrated Centris™ Head provides a tilt range of +15° to -15° for optimal viewing comfort.
Which document should I use for submittals?
For technical drawings, use the K2P120 Technical Drawing (PDF); for installation procedures, refer to the K2P Series Installation Manual (PDF).
