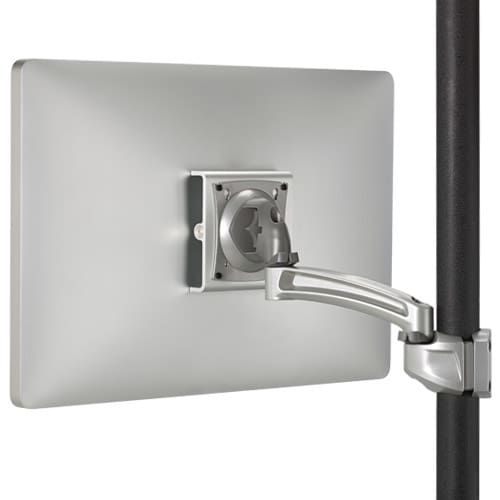

Kontour™ K2P Pole Mount Articulating Arm, Single Monitor-K2P110S
Single monitor articulating arm for pole or tabletop mounting, featuring a 40 lbs capacity and 9.85 in maximum extension
The Chief K2P110S is a silver Kontour™ single monitor articulating arm designed for both desk-tabletop and pole-mounted applications. This arm provides a flexible workspace solution, allowing users to adjust their view through tilt, swivel, and extension. It features the patented Centris™ Head, which enables an effortless +/- 15° tilt to optimize viewing comfort for both sitting and standing positions. For cable management, the arm includes tool-free clips to maintain a clean and professional appearance in any workstation. This model is designed for high levels of recycled content and a highly-recyclable construction, which can contribute to LEED-CI, -NC, and -EB credits. The arm supports a maximum weight capacity of 40 lbs (18.1 kg) and offers a maximum extension of 9.85 in (25 cm). It is compatible with pole diameters ranging from 1.50" to 1.90" (38.1mm - 48.3 mm), and maintains a minimum depth of 2.95 in (7.5 cm). The arm supports both landscape and portrait orientations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 9.85 in (25 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 25.75" x 9.75" x 6.5"(654.1 x 247.7 x 165.1 mm) |
| Shipping Weight | 4.3 lbs (2 kg) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopPole |
All other specifications 9
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 1 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160597 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Verified fitment
Questions about this part
Will the K2P110S fit my monitor?
This arm is verified against 6,308 display models from 212 manufacturers, including Samsung 150MP, LG 15LA60, Sharp 1T-C24FA2KF2NB, Dell 1505FP, Philips 10BDL3051T, and NEC 1740CX.
What do I need to buy to mount this to a desk or pole?
The K2P110S is a single arm for one display. For additional displays, you can explore the KRA228B Dual Monitor Upgrade Kit, and you may need an interface bracket like the FSB1U for certain displays.
How much can this monitor arm actually hold?
The K2P110S supports a maximum weight capacity of 40 lbs (18.1 kg) while maintaining a minimum depth of 2.95 in (7.5 cm).
Can I change the orientation of the monitor?
Yes, the K2P110S supports both landscape and portrait orientations to suit your specific workstation needs.
Which document is needed for submittals?
For technical drawings, you can use the K2P110 Technical Drawing (PDF), or refer to the K2P Series Installation Manual for installation details.
