Kontour™ K2P Dynamic Pole Mount, Dual Monitor Array
Dual monitor pole mount for 10"–24" displays, featuring 15.75" extension, +/- 10° tilt, and TAA compliance

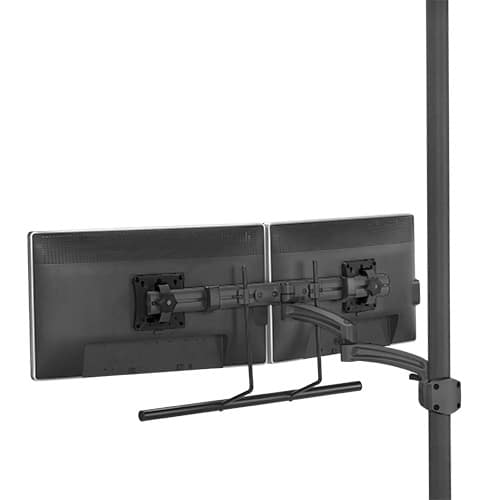

The Chief K2P22HB Kontour™ K2P Dynamic Pole Mount is a dual monitor array designed for desktop or tabletop applications. This system is engineered to hold two displays, each with a typical screen size ranging from 10" to 24" diagonals, and supports a maximum weight capacity of 15 lbs (6.8 kg) per arm. The articulating arms provide a maximum extension of 16.75 in (42.5 cm) and can achieve a minimum depth of 2.95 in (7.5 cm), allowing for significant movement to optimize user viewing angles. Users can adjust their workspace with swivel and tilt capabilities, including a +/- 10° tilt range. For professional cable management, the arms include tool-free clips to maintain a clean installation. This SKU is TAA compliant and features a black finish on forged aluminum arms. This model is part of the Kontour™ K2P series, which is designed with highly-recyclable materials to assist with LEED-CI, -NC, and -EB credits.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 16.75 in (42.5 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionSwivelTilt |
All other specifications 11
| Application | Desk-TabletopPole |
| Color | Black |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +10° / -10° |
| UPC | 841872160641 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Verified fitment
Questions about this part
Will the K2P22HB fit my specific monitors?
This mount is verified against 5,328 display models from 180 manufacturers, including Samsung 150MP1, LG 15LA60R, Philips 10BDL4151T, Dell 1704FPT, and Toshiba 15DL75.
What accessories are needed to mount a digital media player with this arm?
To add a media player, you can use the PAC261P, PAC261W, or PAC261D depending on your specific power brick or VESA requirements.
How much weight can each monitor arm hold?
Each of the two arms in this dual array supports a weight capacity of up to 15 lbs (6.8 kg) per display.
What type of pole is required for installation?
The mount is designed for use with a pole that has a diameter between 1.50" and 1.90" (38.1 mm - 48.3 mm).
Which installation manual should I use for this K2P series mount?
For technical installation guidance, refer to the K2P Series Installation Manual (PDF) available in the resources section.
