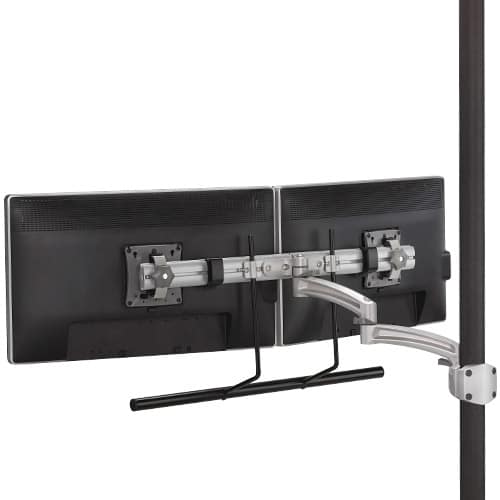

Kontour™ K2P Articulating Pole Mount, Dual Monitor Array
Dual monitor articulating pole mount for 10"–24" displays with 16.75" maximum extension and 15 lbs capacity per arm
The Chief K2P22HS is a dual monitor articulating pole mount designed for professional workstation setups using desk-tabletop or pole applications. This array features two arms, each capable of supporting displays with a typical screen size between 10" and 24" diagonals. Each arm provides a maximum extension of 16.75" (42.5 cm) and maintains a minimum depth of 2.95" (7.5 cm). For optimal viewing comfort in both sitting and standing positions, the integrated Centris™ Head allows for effortless tilt adjustments of +10° to -10°. These arms are constructed from forged aluminum with a silver finish. This TAA-compliant mounting solution is compatible with a wide range of displays, including Samsung 152T, LG 15LA60, Philips 13PF7835, Dell 1704FPT, Sharp AS173MBK, and Toshiba 15DL75. The K2P22HS is built for versatility, supporting both landscape and portrait orientations to suit diverse user requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 16.75 in (42.5 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionSwivelTilt |
All other specifications 11
| Application | Desk-TabletopPole |
| Color | Silver |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +10° / -10° |
| UPC | 841872160658 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Kontour™ KRA220 K1 and K2 Extension Arm, Black
KRA220B$50.40
Verified fitment
Questions about this part
Will this mount fit my specific monitors?
The K2P22HS is verified against 5,277 display models from 182 manufacturers, including Samsung 152S, LG 15LA6R, Dell 1704FPT, and Toshiba 14VL33.
What is the weight capacity for this dual monitor array?
Each arm in the K2P22HS array supports a weight capacity of 15 lbs (6.8 kg) per display.
What pole diameter does this mount require?
The mounting hardware is designed for a pole diameter range of 1.50" to 1.90" (38.1mm - 48.8 mm).
What accessories are needed for mounting digital media players?
For mounting digital media players or CPUs, you can utilize the PAC261P, PAC261W, PAC260W, or KSA1023B series of mounts.
Which documentation is required for submittals?
Technical drawings are available in PDF format, and CAD drawings are provided in DWG format for professional planning.
