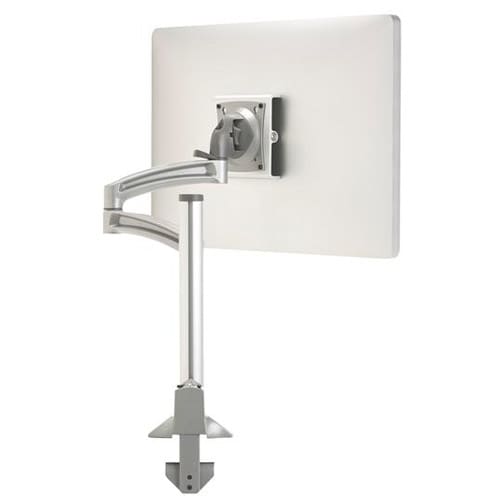

Kontour™ K2C120S with Steelcase® FrameOne™ Interface
Single monitor arm for 10"–30" displays, 40 lbs capacity, featuring a pre-installed Steelcase® FrameOne™ interface
The Chief K2C120SXF1 is a Kontour™ K2 monitor arm specifically engineered to integrate with the Steelcase® FrameOne™ office furniture system. This kit includes a pre-installed Steelcase® FrameOne™ mounting adapter, which allows installers to achieve a fast and efficient setup compared to standard mounting procedures. Designed for desk-tabletop applications, this single-display arm supports monitors ranging from 10" to 30" in size. This silver-finished arm provides significant ergonomic flexibility through several adjustment points. It features a 7 in (177.8 mm) manual height adjustment range and a maximum extension of 17.51 in (44.5 cm). Users can easily transition between landscape and portrait orientations to suit their workflow. The arm supports a weight capacity of 40 lbs (18.1 kg) per monitor and includes a height-assist feature to simplify positioning. To maintain a clean workspace, the arm has a minimum depth of 4.01 in (10.2 cm) when retracted.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 7 in (177.8 mm) |
| Maximum Extension | 17.51 in (44.5 cm) |
| Minimum Depth | 4.01 in (10.2 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Accessory Type | Interface Brackets |
All other specifications 12
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872160511 |
| Certifications | TAA |
Resources
You'll need these with it
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60
Questions about this part
Does the K2C120SXF1 include the Steelcase® FrameOne™ adapter?
Yes, this specific SKU comes with the Steelcase® FrameOne™ mounting interface already pre-installed for rapid installation into the furniture system.
What is the weight limit for this monitor arm?
The K2C120SXF1 supports a weight capacity of 40 lbs (18.1 kg) per monitor, which covers most standard single-display setups.
Can I use this arm in portrait orientation?
Yes, this monitor arm is designed to support both landscape and portrait orientations for greater workspace flexibility.
Is this product TAA compliant for government contracts?
Yes, the K2C120SXF1 is TAA compliant as listed in the manufacturer's specifications.
What documents are available for submittals?
You can access the K2C Series Installation Manual, a Technical Drawing (PDF), and a CAD Drawing (dwg) via the resources section.
